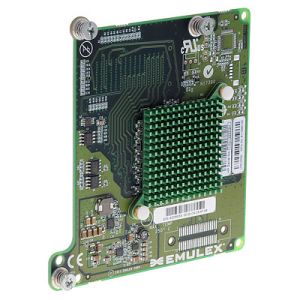

HP 659818-B21 LPe1205A 8Gb Fibre Channel Host Bus Adapter

The HP LPe1205A is a PCI Express based 8Gb Fibre Channel Type A Mezzanine card compatible with HP ProLiant BladeSystem c-Class servers. It provides superior reliability, exceptional performance, enhanced security, server side NPIV, and scalable management for virtual server and enterprise-class applications. The dual-channel design is ideal for mission critical applications that rely on highly available connectivity. Using Emulex firmware and driver architecture, the HP LPe1205A is designed to be fully driver compatible with all Emulex HBAs. This architecture allows firmware to be upgraded without taking the server off-line or re-booting, and without the need to upgrade the driver. As with all Emulex LightPulse Fibre Channel HBAs, the HP LPe1205A is managed with Emulex OneCommand™ Manager (OCM). This provides a secure, centralized administration console to discover and manage Emulex Fibre Channel HBAs on local and remote hosts.



The HP LPe1205A 8Gb Fibre Channel HBA for BladeSystem c-Class is a Type A Mezzanine card compatible with HP ProLiant Gen8 server blades. Bandwidth, CPU efficiency, and responsiveness required for large virtual server deployments. Enhanced storage management capabilities in a virtual server environment by using NPIV to assign multiple Fibre Channel addresses on the same physical link, giving each virtual machine a unique path to storage. Advanced error-checking and robust data integrity capabilities of Emulex solutions. Improved power management by monitoring the environment.





BladeSystem supported HP ProLiant BL460c Gen8, BL465c Gen8, BL420c Gen8 Number of ports 2 Port Speed 8 Gb Port speed rating 8 Gb Power Availability 8W (maximum) Product dimensions (W x D x H) 4 x 4.5 x 0.05 in Protocol supported Fibre Channel Servers supported HP BladeSystem c-Class Weight ( Imperial ) 1 lb Weight ( Metric ) 0.45 kg



Extended specifications



Technical Information

Ports/Channels 2 x RJ-45 Fibre Channel Host Interface PCI Express 2.0 x4 Fabric Supported N_Port Fibre Channel Class Supported Class 2 Class 3



Media & Performance



Connectivity Media Multi-mode Optical Fiber Fibre Channel Data Transfer Rate 8.50 Gbps Fibre Channel



Management & Protocols

Protocols FC-PI-4 FC-FS-2 FC-LS FC-AL-2 FC-GS-6 FC-FLA FC-Tape FC-PLDA FC-DA FCP-4 FCP FC-SP FC-HBA



Physical Characteristics

Form Factor Plug-in Card Height 3.5" Width 3.9"



Miscellaneous

Certifications & Standards UL recognized to 60950-1:2007 CUR recognized to CSA22.2, No. 60950-1-07 TUV certified to EN60950-1 FCC rules, Part 15, Class A ICES-003, Class A EMC Directive 2004/108/EEC (CE Mark) EN55022, Class A EN55024 Australian EMC Framework (C-Tick Mark) Japan VCCI, Class A Korea KCC, Class A Green Compliant Yes Green Compliance Certificate/Authority China RoHS RoHS WEEE
