WiFi Drive Adapter
WDAUSM
Overview

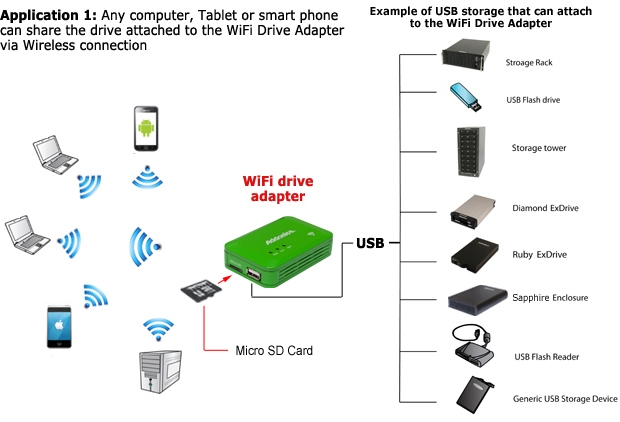

The Addonics WiFi Drive Adapter is a handy network device. It is a great tool for wireless sharing of a USB drive or micro SD card. There is no router or local area network set up needed, making this a perfect solution for setting up a small wireless media server in a car, home, office or any place for wireless file sharing, video or music streaming to multiple wireless devices. Set up is fast and easy. Simply attach a USB drive or inserting a micro SD card into the WiFi Drive Adapter. The data on the USB drive or the micro SD card becomes readily accessible wirelessly.

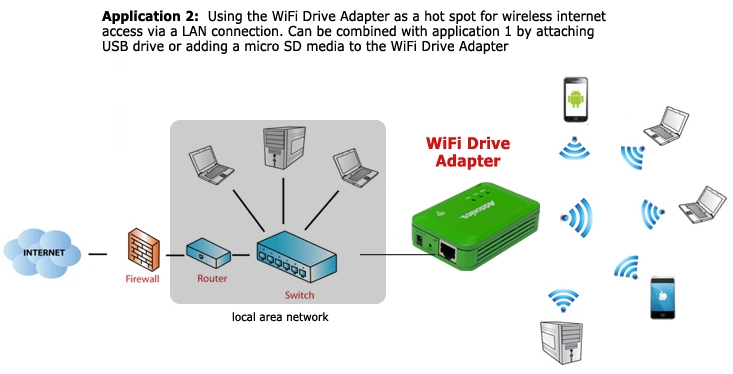

The WiFi Drive Adapter a great way to set up a shared internet connection by multiple wireless devices in hotel, office or any places where there is only one internet connection is available. To create a wireless hot spot, simply connect the WiFi Drive Adapter to a Local Area Network with Internet connection.
Features
- Turn any USB 2.0 hard drive*, SSD, or a micro SD card into a WiFi storage device
- Used as a wireless access point to the Internet when connecting to10/100 Mbps LAN with internet connection
- Great for the following applications:
- Wireless file sharing on USB drive or micro SD card
- Streaming music or video to Tablet, Smart Phone, MP3 player or Notebook
- As a hot spot for internet connection sharing
- Simple set up - one wireless password for all users
- LAN users can direct access USB drive or Micro SD card with no authentication via SMB connection
- Full READ/WRITE access by all users. No READ/Write control
- File System support: FAT32 or FAT64 (exFAT)
- Maximum drive volume:
- FAT64 (exFAT) - 4TB (drive volume over 2TB required formatting with a PC)
- FAT32 - 2TB
- Maximum file size:
- FAT64 (exFAT) - 127 GB
- FAT32 - 4GB
- Support SMB and WebDAV access
- Device administration via web browser
- Maximum WiFi data transfer up to 54 Mbps READ and WRITE
- Powered directly from USB port via the included USB power cable
- USB port can be used to power most 2.5" USB hard drives or any low powered USB storage device.
- Size of a cigarette pack. Weight less than 3 oz. Can be installed practically anywhere
- Compatible with all Windows OS, Mac OS X, Linux 2.6.x and above
*USB hard drives over 2TB from Western Digital and Seagate such as the GoFlex series are not compatible, please see detail explanation in Q&A section
1. Any SMB APP for Smart Phone or Tablet can be used for accessing the WiFi Drive Adapter. Air Drive APP has been tested to work well on both Android, Apple phone and Tablet
2. Power from USB port varies on different computers. The WiFi Drive Adapter can be powered directly from most USB ports. The pass-through power on the WiFi Drive Adapter USB port can power most USB flash drives or Flash readers. To power a USB hard drive by the USB port on the WiFi Drive Adapter, an external power adapter is recommended and may be nescessary if the USB port on the computer has limited power. In general, USB 3.0 port supports more power than USB 2.0 port.
Specifications:

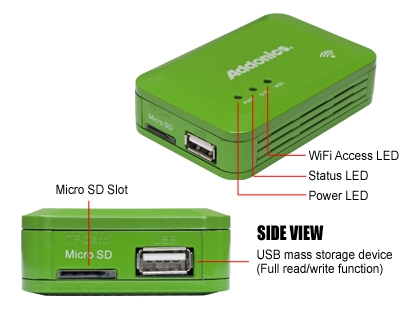

- One USB-A connector for USB mass storage device
- USB 2.0 / 1.1 specification
- USB port can supply power up to 1.5A at 5V using the Addonics optional 5V power adapter
- WiFi - IEEE802.11b/g/n
- WiFi range ~ 50 meters (150 feet) radius in open area

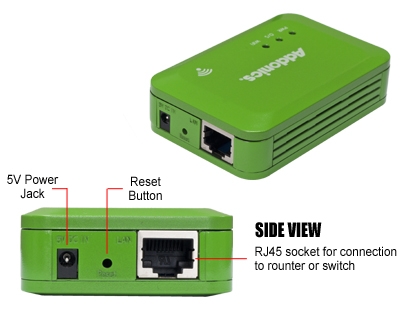

- One RJ45 socket for 10/100Mbps Ethernet connection
- File systems support: FAT64 (exFAT) or FAT32
- Power consumption: 2 watts @ idle, 2.5 watts average during operation
- Dimensions (L x W x H): ~ (84 x 55 x 24) mm or (3.31 x 2.17 x .95) in.
- Weight: ~ 59 g (2.08 Oz)
- Operation Temperature: 0 C ~ 60 C
- Operation Humidity: 10 ~ 90 %RH
- Storage Temperature: -20 C ~ 60 C
- Storage Humidity: 5~ 95 %RH (non-condensing)
