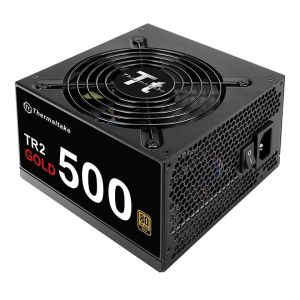

ThermalTake 500W TR2 Series Power Supply - ATX 12V v2.3, 120mm Fan, 80 PLUS Gold Certified, Haswell Ready
6x SATA, 2x PCI-E 6+2-Pin

No Longer Available

Part Number:

391284

(?) Brand:

ThermalTake Web Site

Manuf No:

TR2-0500NPCGAU-G
TR20500NPCGAUG

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Date Added:

18/3/2015

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

TR20500NPCGAUG, TR2-0500NPCGAU-G, SPTTTR2500W, SP-TT-TR2500W

TR2 500W Gold

Design

Feature

Thermaltake TR2 500W Gold

Incorporating various high-quality components, the new TR2 Gold models are rated from 450W to 700W saves energy through its high efficiency of up to 90% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

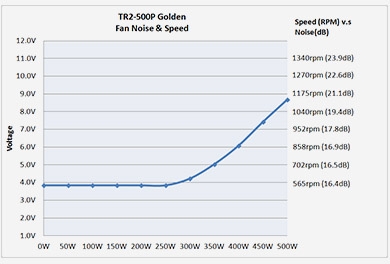

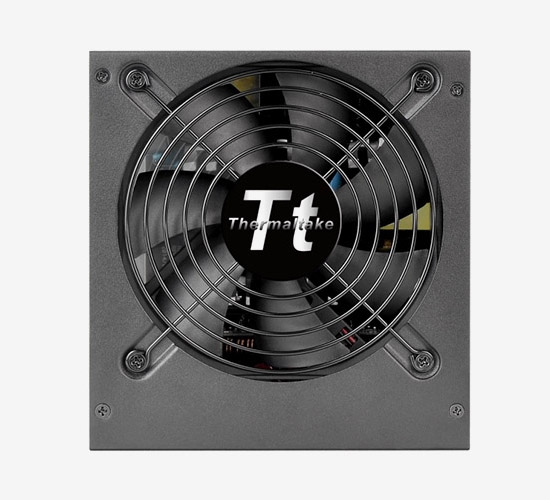

Ultra Quiet Fan

TR2 Gold Series adopts 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

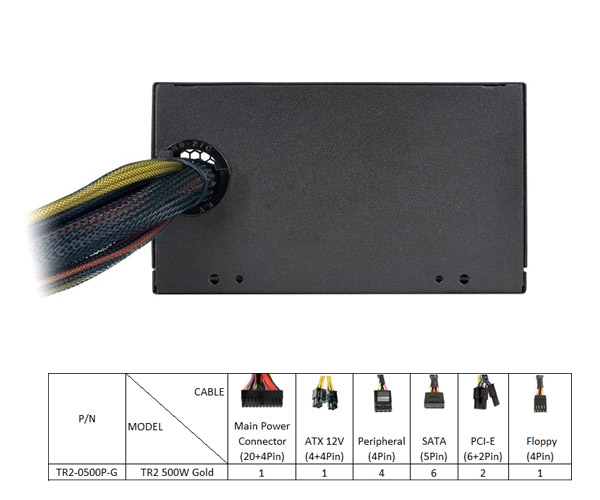

Multiple Connectors

The cables used for TR2 Gold are all sleeved. TR2 500W Gold connectors specification as below:

80 PLUS Gold Certified and Haswell Ready

TR2 Gold Series saves energy through its high energy efficiency of up to 90% and is 80 PLUS Gold certified.

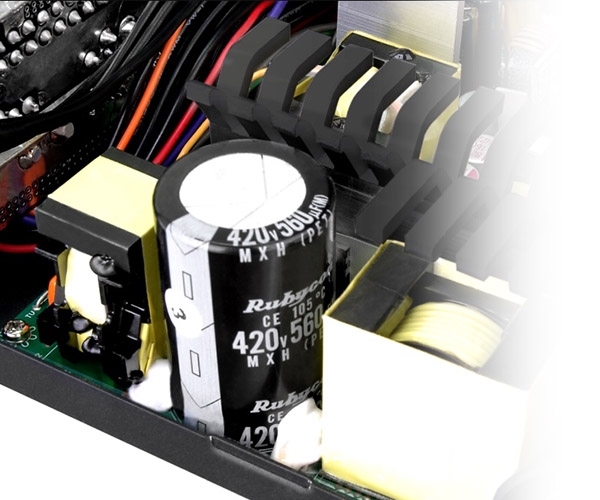

High Quality Capacitors

High quality capacitors enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

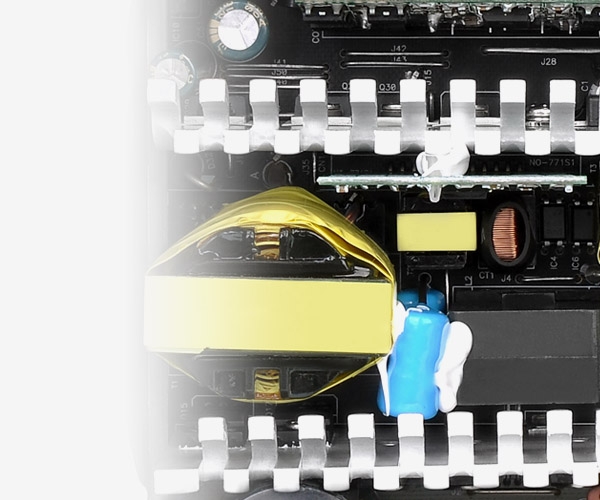

Massive and Dedicated Single +12V Output

TR2 Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:

AC INPUT	Input Voltage: 100V-240V Input Current: 8A max Frequency: 50Hz-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	41.7A	0.3A	3A
Max Output Power	105W		500W	3.6W	15W
Continuous Power	500W

Specifications

P/N	PS-TR2-0500NPCG-G
Short P/N	TR2-0500P-G
Model	TR2-500AH2NSG
Type	Intel ATX 12V 2.3
Max. Output Capacity	500W
Color	Black
Dimension	86mm x 150mm x 140mm
PFC Power Factor Correction	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	16msec (minimum) within full load under 230Vac/ 50Hz input.
Input current	8A max
Input Frequency Range	50 Hz - 60 Hz
Input Voltage	100 Vac- 240 Vac
Operating Temperature	0 to +40
Operating Humidity	20% to 90%,non-condensing
Storage Temperature	-40 to +70
Storage Humidity	20% to 95%, non-condensing
Cooling System	120mm Fan: 1500 R.P.M. 10%
Efficiency	87-92% efficiency @ 20-100% load
MTBF	100,000 hrs minimum
Safety Approval	CE/UL/CUL/FCC/TUV/GOST.
PCI-E Connector	PCI-E 6+2pin x 2
