ThermalTake 700W TR2 Power Supply - ATX 12V V2.3/80PLUS Gold
  • 120mm Fan, Active PFC
  • 24-Pin(1), ATX12V 4+4-Pin(1), Molex(4), SATA(8), PCI-E 6+2-Pin(4)

IMG 1 of 3
No Longer Available
Part Number:
391286
(?) Brand:
ThermalTake Web Site
Manuf No:
PS-TR2-0700NPCGAU-G
PSTR20700NPCGAUG
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
18/3/2015
Details Files Images & Video
All stock codes associated to this product
PSTR20700NPCGAUG, PS-TR2-0700NPCGAU-G
Overview

Incorporating various high-quality components, the new TR2 Gold models are rated from 450W to 700W saves energy through its high efficiency of up to 90% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

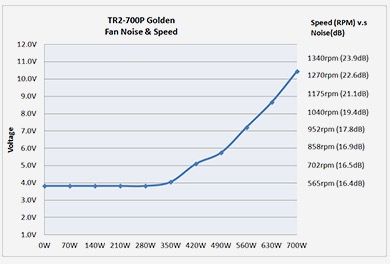

Ultra Quiet Fan

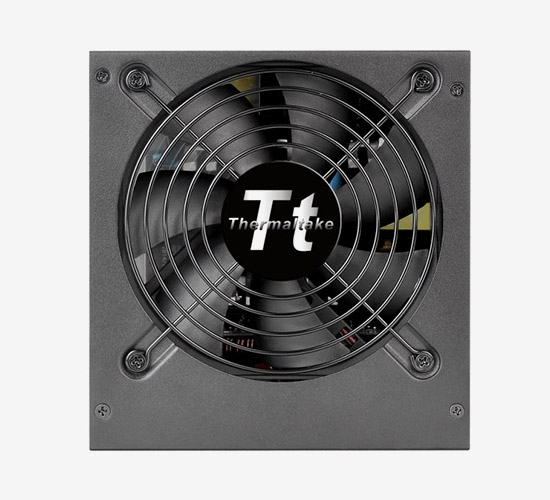

TR2 Gold Series adopts 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.




Multiple Connectors

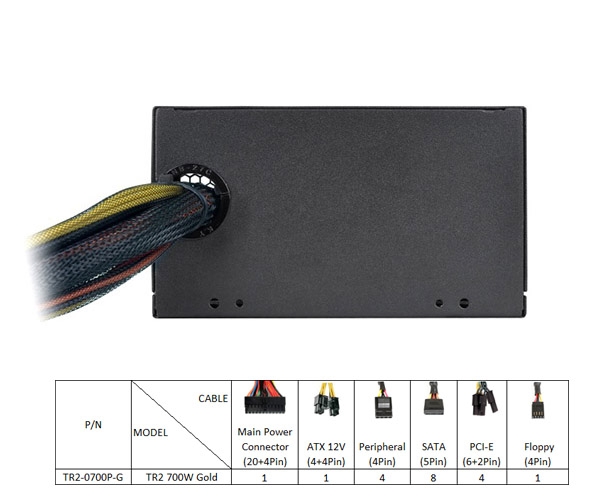

The cables used for TR2 Gold are all sleeved. TR2 700W Gold connectors specification as below:

80 PLUS Gold Certified and Haswell Ready

TR2 Gold Series saves energy through its high energy efficiency of up to 90% and is 80 PLUS Gold certified.


High Quality Capacitors

High quality capacitors enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Massive and Dedicated Single +12V Output

TR2 Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:


AC INPUT

Input Voltage: 100V-240V
Input Current: 10A max
Frequency: 50Hz-60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 22A

22A

58.4A

0.3A

 3A
Max Output Power

120W

 700W

3.6W

15W
Continuous Power

700W

Specifications

P/N PS-TR2-0700NPCG-G
Short P/N TR2-0700P-G
Model TR2-700AH2NSG
Type Intel ATX 12V 2.3
Max. Output Capacity 700W
Color Black
Dimension 86mm x 150mm x 140mm
PFC Power Factor Correction Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) within full load under 230Vac/ 50Hz input.
Input current 10A max
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0 to +40
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -40 to +70
Storage Humidity 20% to 95%, non-condensing
Cooling System 120mm Fan: 1500 R.P.M. 10%
Efficiency 87-92% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval CE/UL/CUL/FCC/TUV/GOST.
PCI-E Connector PCI-E 6+2pin x 4

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
