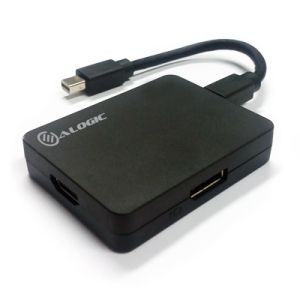

ALOGIC SmartConnect Mini DisplayPort/DisplayPort 1.2 to DisplayPort,HDMI & VGA MultiDisplay MST Hub
Product Description
The ALOGIC SmartConnect Mini DisplayPort/DisplayPort 1.2 to DisplayPort, HDMI & VGA Multi-Display MST Hub allows you to connect up to three displays from a single Mini DisplayPort/DisplayPort output. The SmartConnect hub utilises innovative DisplayPort technology that supports 3 video connections simultaneously. You can extend content on 3 displays at the same time for gaming, graphics design or spreadsheet analysis. The adapter is plug and play and no drivers are required.
Product Specifications
Resolution Support
Triple monitors with DisplayPort1.2 MST source: (multi video/audio steams) Max 2560x1600piex@60Hz each monitor.
DisplayPort 1.1 SST or DisplayPort1.2 SST source: max 1920x1080piex@60Hz each monitor, 3840x1200piex@60Hz collage-display (ViewXpand mode.)GPU*
Display Resolution and Maximum Number of Monitors :DisplayPort 1.2 offers the higher pixel rate available, there is a limitation in how many pixels can be sent down the display pipe. The data below provides maximum monitor count vs. display resolution, based and DisplayPort 1.2 bandwidth limits. It is not required that all of the screens use the same resolution.
Display Resolution(standard 60 frames per second refresh rate) based on DisplayPort 1.2 Bandwidth
1680 x 1050 (WSXGA): 5
1920 x 1080 (1080p) or 1920 x 1200: 4
2560 x 1600 (WQXGA): 2
3840 x 2160 (UltraHD, 4K) or 4096 x 2160 (4K x 2K): 1
Power Consumption 1.45W : +3.3VDC DisplayPort Bus Power
Power Connector 1-port Micro-B USB port +5VDC in (Reserved)
Weight 40g 2g (1.5oz)
Dimensions 70x54x14mm (0.23x0.18x0.05ft)
O.S. support :Windows XP/2003/Vista/7/8/8.1, 2008/2012, (32/64-bit)
Environment :Operation temp. 0 C 40 C (32-104F)
Operation humidity: < 85% non-condensing
Storage temp. -10 C 85 C (14~176F)
PACKAGE INCLUDES
MDP-SPL-ADP x1 * Mini DisplayPort Male to Mini DisplayPort Male cable 25cm x 1
DisplayPort Male to Mini DisplayPort Male cable 25cm x 1
Micro USB Cable 25cm X 1
Quick Installation Guide X 1
PRODUCT FEATURE
Allows you to connect up to three displays from a single Mini DisplayPort/DisplayPort output.
No additional software to install, just Plug-and-Play.
Works with Suface Pro 2/3 and Suface 3, desktop or notebook enabled with a Mini DisplayPort/DisplayPort output.
Utilizes new Multi-Transport (MST) protocols
