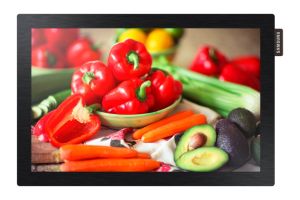

Samsung LH10DBDPLBC/XY DB10D Commercial LED LCD Display - Black
  • 10.1"E-LED BLU, 30ms, 1280x800, 900;1, 450cd/m2, HDMI, RS232, RJ45, Wi-FI, SD Card Slot, Speakers

IMG 1 of 4
No Longer Available
Part Number:
393584
(?) Brand:
Samsung Web Site
Manuf No:
DB10D
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Date Added:
18/5/2015
Details Files Finance Images & Video
All stock codes associated to this product
LH10DBDPLBC/XY, DB10D, 8806086550529

DB10D


Advertise effectively with customers-engaging, small-sized displays

Features

Versatility in a professional compact display

Versatility in a professional compact display

DB10D display offers an array of professional grade features in a compact form factor to help meet signage needs. These small displays are excellent for use in delivering customised content to individual customers for a more up-close and personalised experience, able to help capture viewer attention at eye level.

Simple content delivery with an all-in-one solution

Simple content delivery with an all-in-one solution

Included with the Samsung DB10D displays, the 2nd generation Samsung Smart Signage Platform (SSSP) helps make digital signage simple for new users. This stand-alone system includes content design templates, easy setup and scheduling of content using the displays remote control or with your compatible USB keyboard and mouse*, and a multi-channel function, allowing multiple content sources to run concurrently, which can be changed by changing the channel on the remote. The displays include on-board memory, but also include a USB port and an SD card slot to enable access to larger files stored on your compatible external memory devices.* Simply set the unit to plug and play to play content files directly from your compatible USB storage device or your SD card.

The 2nd generation Samsung Smart Signage Platform. The power to deliver!

The 2nd generation Samsung Smart Signage Platform. The power to deliver!

The 2nd generation Samsung Smart Signage Platform (SSSP) takes Samsung dynamic signage to another level. Included in the new Samsung DB10D display the 2nd generation SSSP offers quad core System on Chip (SoC) technology helping to improve power and functionality for signage applications.
MagicInfoTM Player S2 embedded System on Chip (SoC) technology.

Able to be used as a Stand-Alone Signage Solution.

Array of Design Templates included.

Scalable for networked server based signage applications with MagicInfoTM S2 server/ client access software licences

Manage digital signage wirelessly using your existing Wi-Fi infrastructure

Manage digital signage wirelessly using your existing Wi-Fi infrastructure

A scalable solution allowing you to create multi-display digital signage networks, the 2nd generation SSSP with the addition of a MagicInfo Premium S Server Client Access software licence1 helps you create, schedule and deliver content from a compatible mobile device over your existing wired or wireless network infrastructure to a single DBD display, or multiple compatible displays2. This web-based solution also enables display control from the MagicInfoTM Server1. DMD Series 2nd generation SSSP comes with embedded Wi-Fi.

Easily manage digital signage with a simple Home UI, tools and templates

Easily manage digital signage with a simple Home UI, tools and templates

The intuitive Home UI can be easily controlled by the display remote (included), or by using your compatible USB keyboard or mouse (not included).

When the optional Touch Overlay (sold separately) is added, the home screen UI supports touch interaction for easy use. The main display functions are conveniently available on the home screen UI in a new matrix design with large menu buttons for ease of use. Selected configuration menus are also displayed on the main home screen UI for easy access.

The Samsung DBD Series digital signage also provides powerful content management tools.

Features include:

Multi-channel scheduling: Deliver scheduled content on multiple channels simultaneously and access with channel up/ down on display remote.
E-brochure3: Load product or service information on the display in the e-brochure function and you can interrupt scheduled content to share this information with clients.
Create content easily and conveniently from a selection of 100 design templates.

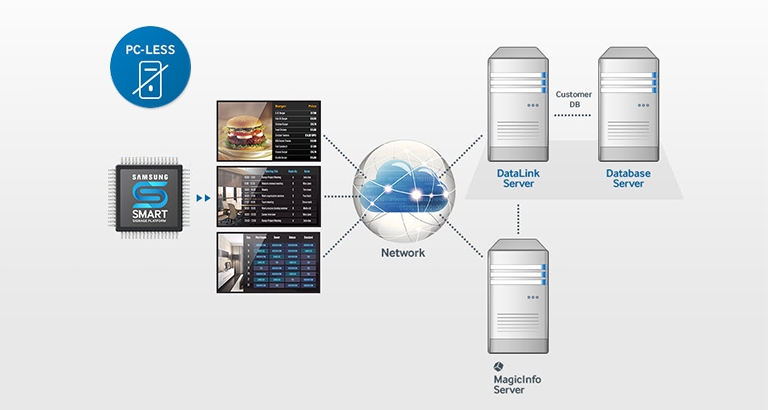

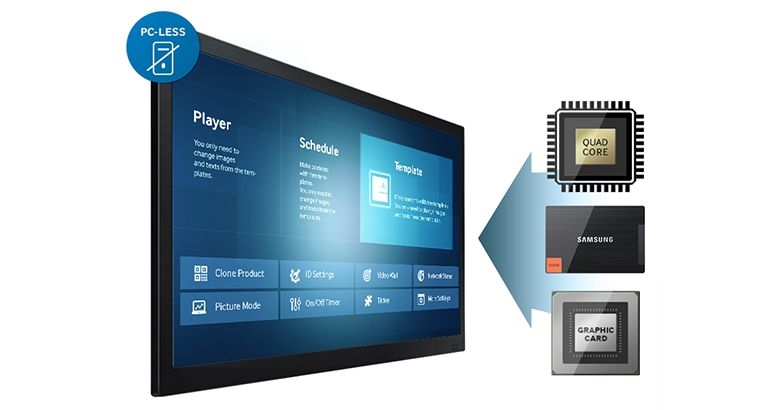

Content control capabilities without the need for a separate PC

Content control capabilities without the need for a separate PC

2nd Generation SSSP with its quad-core, SoC technology provides robust functionality and supports the PC-less DataLink feature which enables you to handle elaborate content management. You can easily retrieve and update content by purchasing a DataLink server and a DataLink extended module without needing a separate SBB or Plug-in Module (PIM).

Wide visibility of images for various locations

Wide visibility of images for various locations

Samsung has engineered the DB10D displays with several features that help to ensure superb quality full-high-definition (FHD) images for maximum impact. Designed to reach audiences, the screen features a wide-viewing angle with a WVA panel. In addition, various picture modes can be used for a variety of environments to help deliver quality for the location.

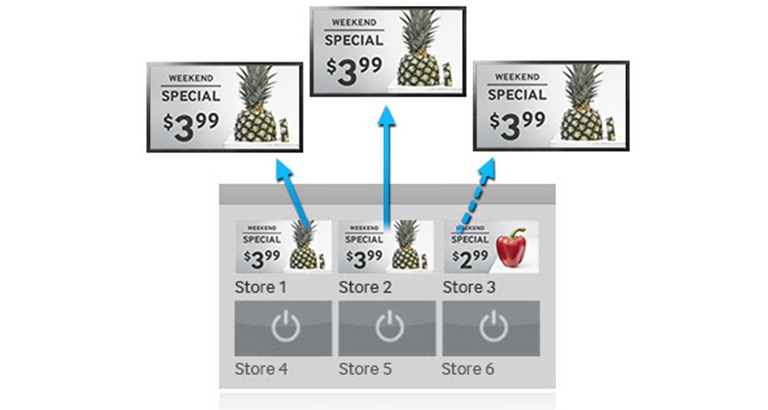

Control displays in multiple locations easily with MagicInfo Server

Control displays in multiple locations easily with MagicInfo Server

A scalable solution allowing you to create multi-display digital signage networks, the 2nd generation SSSP with the addition of a MagicInfo S Server Client Access software licence1 helps you create, schedule and deliver content from your compatible PC over your existing wired or wireless network infrastructure to a single DB22D-T display, or multiple compatible displays2. This web-based solution also enables display control from the MagicInfo Server1. DB22D-T Series 2nd generation SSSP comes with embedded Wi-Fi.

TECH SPECS

Display


  • Diagonal Size

    10.1"

  • Panel Type

    60Hz E-LED BLU

  • Resolution

    1280 X 800

  • Pixel Pitch (HxV)

    0.1695(H) x 0.1695 (V) (TYP.)

  • Active Display Size (HxV)

    217.0 (H) x 135.6 (V)

  • Brightness (Typical)

    450 Cd/m2

  • Contrast Ratio

    900:1

  • Viewing Angle (H/V)

    178:178

  • Response Time

    30ms

  • Display Color

    16.7M

  • Color Gamut

    50%

  • H-Scanning Frequency

    30 ~ 81kHZ

  • Maximum Pixel Frequency

    148.5MHz

  • V-Scanning Frequency

    48 ~ 75HZ

  • Dynamic Contrast Ratio

    50,000:1

Connectivity

  • Video In

    HDMI1

Design

  • Stand Type

    N/A

Power

  • Power Supply

    AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

  • Power Consumption (Off Mode)

    less than 0.5W

  • Power Consumption (On Mode)

    Max:18.7, Typical:18, BTU(Max):63.767

  • Power Consumption (Sleep Mode)

    less than 0.5W

Dimension

  • Net Dimensions (HxWxD)

    246.8 x 165.2 x 24.9

  • Package Dimension (HxWxD)

    300.0 x 205.0 x 79.0

Weight

  • Set Weight

    0.6kg

  • Package Weight

    1.2kg

Mechanical Specification

  • VESA Mount

    50 x 50

  • Bezel Width

    14.1 mm

  • Media Player Option Type

    embedded

Operation Conditions

  • Temperature

    0~ 40

  • Humidity

    10 ~ 80

General Feature

  • Special

    Temperature Sensor, Portrait Installation Support, Button Lock, Clock Battery(80hrs Clock Keeping), Built in Speaker, WiFi Module Embedded, SD Card Slot

  • Speaker

    Built in Speaker(1W x 1)

Optional Feature

  • Protection Glass

    No

Internal Player (MagicInfo)

  • Special

    Magic Clone(to USB), Auto Source Switching & Recovery,RS232C/RJ45 MDC,Plug and Play (DDC2B), Image Rotation, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, Predefined Templates for Vertical Usage,Mobile Control, Event Schedule, Backup Player

  • MagicInfo Support

    Yes

Certification and Compliance

  • EMC

    FCC (USA) Part 15, Subpart B Class A, CE (Europe) : EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003, VCCI (Japan) : VCCI V-3 /2010.04 Class A, KCC/EK (Korea) : Tunerless : KN22 / KN24, BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital), C-Tick (Australia) : AS/NZS CISPR22:2009, CCC(China) :GB9254-2008,GB17625.1-2012, GOST(Russia/CIS) : GOST R 51317 Series,GOST 22505-97,EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003

  • Environment

    N/A

  • Safety

    CB (Europe) : IEC60950-1/EN60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) : PSB+IEC60950-1, NOM (Mexico ) : NOM-001-SCFI-1993, IRAM (Argentina ) : IRAM+IEC60950-1, SASO (Saudi Arabia ) : SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, NOM(Mexico) : Tunerless : NOM-019-SCFI-1998, KC(Korea) : K 60950-1, EAC(Russia) : EAC+IEC60950-1, INMETRO(Brazil) : INMETRO+IEC60950-1, BSMI(Taiwan) : BSMI+IEC60950-1, RCM(Australia) : IEC60950-1/AS/NZS 60950-1, CSA (Canada) : cUL, UL(USA) : cUL60950-1, TUV (Germany) : CE, NEMKO (Norway) : CE

Accessories

  • Included

    Quick Setup Guide, Warranty Card,Regulatory guide, Power Cord, Adapter, Remote Controller, Batteries, RS232C-Stereo cable, Stand Bar
