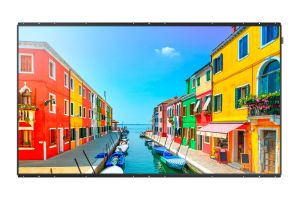

Samsung LH46OHDPKBC/XY OM75D-K Commercial LED LCD Display
  • 75"FHD, Widescreen, 6ms, 1920x1080, 5000;1, 2500cd/m2, VGA, DVI, DisplayPort, HDMI, RS232C, RJ45, WiFi

IMG 1 of 1
No Longer Available
Part Number:
393616
(?) Brand:
Samsung Web Site
Manuf No:
LH46OHDPKBC/XY
Shipping Weight:
120 KG (Includes product packaging)
Estimate Shipping
Date Added:
18/5/2015
Details Files Finance Images & Video
All stock codes associated to this product
LH46OHDPKBC/XY, 2959609

OM75D-K


Features

OM75D-K Kit Form Outdoor Readable Display

OM75D-K Kit Form Outdoor Readable Display

The OM75D-K is specifically designed to be integrated with encasements custom designed by third parties. Samsung technicians can advise on the requirements for ventilation and ingress protection for proposed indoor and outdoor applications.

Key Features:

Up to 2500 candela brightness with 5000:1 contrast ratio
Up to 24/7 operation
Auto Brightness sensor 400 candela to 2500 candela
2nd Generation Samsung SMART Signage Platform
Designed for compatible 3rd party encasements/enclosures
Device is not ingress protection rated. Samsung advice is intended to provide guidance only. Customers must satisfy themselves that each device is sufficiently ventilated and protected.

Deliver promotional messaging vividly with great visibility

Deliver promotional messaging vividly with great visibility

Help draw attention to your retail business by delivering promotional messaging with high visibility. The Samsung OMD Series SMART Signage features 2,500 candela high brightness and 5000:1 contrast ratio for superb visibility in various lighting environments. The OMD Series Smart Signage's brightness, contrast ratio and screen coating are designed to support screen visibility, even if consumers are wearing polarised sunglasses.

Display content with variable brightness for different ambient light conditions

Display content with variable brightness for different ambient light conditions

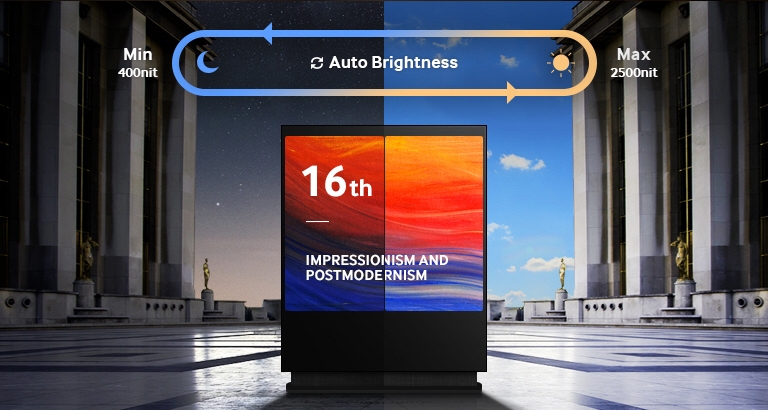

Control brightness with an automatic brightness sensor. You can customise the maximum and minimum brightness within a range of 400 to 2,500 candela brightness to complement various lighting conditions.

Simulated graphic to depict the variable brightness controlled by the in-built auto brightness sensor. Image shows display in an outdoor environment. The Samsung OMD-K series requires a third party designed customised encasement with IP rating IP56 or higher to be used in outdoor environments. Refer to the specifications for minimum and maximum operating temperatures.

Business performance with Samsung's 2nd Generation SSSP

Business performance with Samsung's 2nd Generation SSSP

The embedded, all-in-one 2nd Generation SSSP eliminates the need for a separate PC or media player, to streamline digital signage operation. Content deployment can be simple by using the USB plug-and-play feature. Attach your compatible USB device with your content (sold separately), for an easy plug-and-play content solution.

Easily and professionally manage content from a mobile device

Easily and professionally manage content from a mobile device

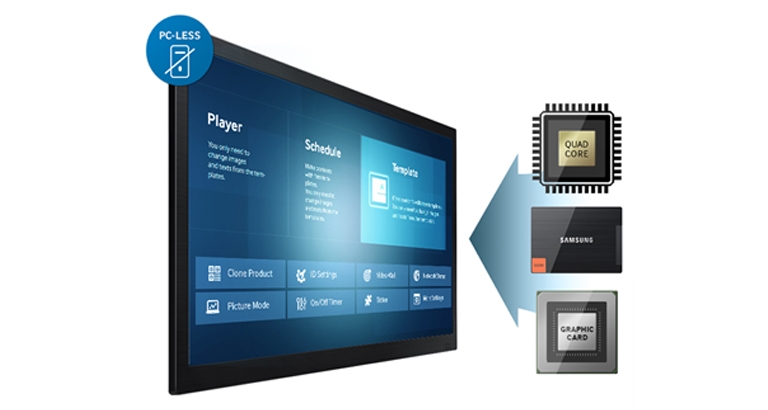

The 2nd generation Samsung Smart Signage Platform (SSSP) takes Samsung dynamic signage to another level. Included in the Samsung OM75D-K, the 2nd generation SSSP offers quad core System on Chip (SoC) technology, helping to deliver power and functionality for signage applications
MagicInfo Player S2 embedded System on Chip (SoC) technology.

Able to be used as a Stand-Alone Signage Solution.
Array of Design Templates included.
PC-less touch option using on-board SoC and optional Touch Module (sold separately).
Scalable for networked server based signage applications with MagicInfo S2 server/ client access software licence.

Manage digital signage wirelessly, using a compatible mobile device

Manage digital signage wirelessly, using a compatible mobile device

With a convenient built-in Wi-Fi module, users can control and wirelessly distribute content to the digital signage solution in the display using compatible mobile devices. The ability to send and schedule content from a compatible mobile device helps manage content. Simply download the MagicInfo app to your compatible mobile device from Google Play Store or the Apple App Store and use your existing Wi-Fi infrastructure to connect and deliver content to your display.

App must be downloaded to compatible device. Internet connection required. Data charges may apply. Network infrastructure not included.

Deliver engaging content with a sleek design

Deliver engaging content with a sleek design

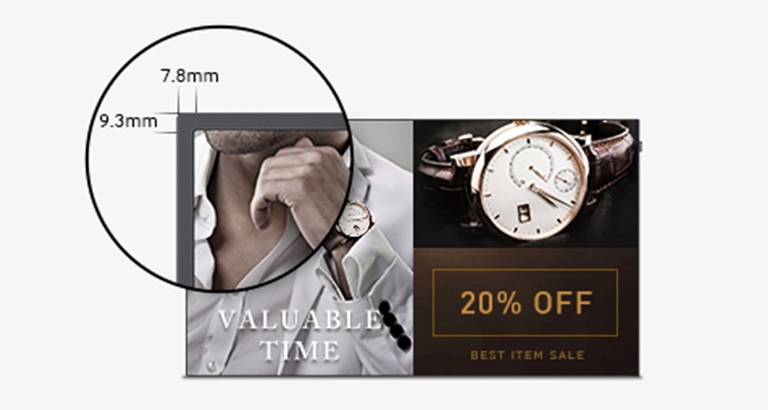

The display features a sophisticated design with a narrow bezel that offers an elegant appearance. Slim bezels enable OMD Series displays to be used in video wall applications. Bezel width varies by screen size. the OM46D and OM55D models bezel sizes are, 9.3mm top, 6.5mm bottom and 7.8mm sides. The OM75D series offers a uniform 11.7mm bezel.

Note: 75 inch model OM75D-K has uniform 11mm bezel

Choose an appropriate display type for your business application

Choose an appropriate display type for your business application

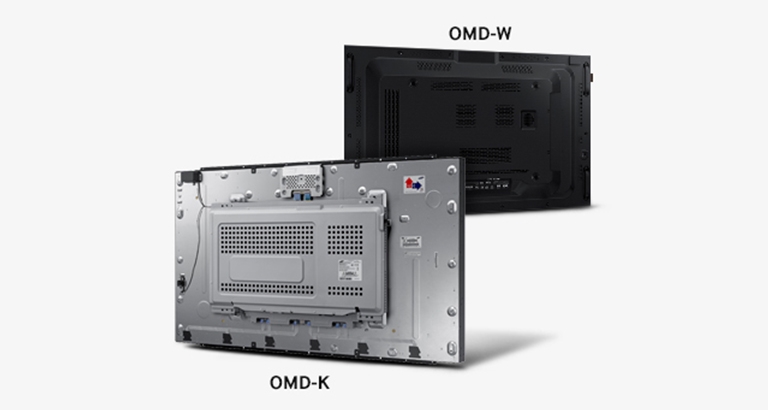

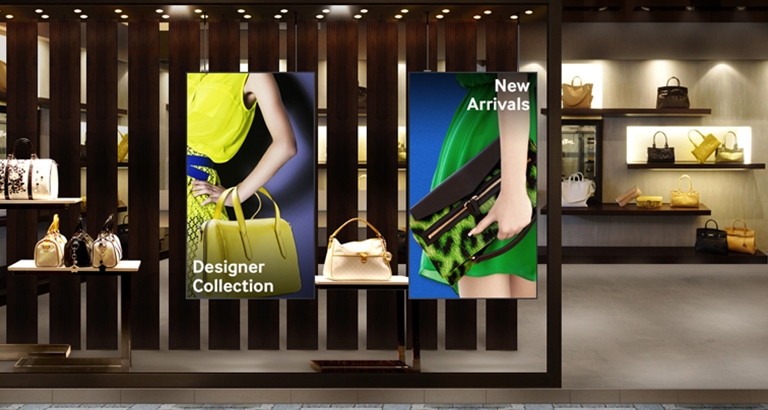

Take advantage of a variety of form factors to suit your display environment. As a standalone kit-type panel, the OMD-K is designed for specialised use in various customized housings to serve a wide range of configuration and environmental needs. OMD-W is an aesthetically pleasing standalone panel that is suitable for in-window store display usage with a back cover that hides its array of connectivity ports and openings. Both OMD-K and OMD-W models are available in various sizes (46, 55 and 75) for configuration flexibility.


TECH SPECS

Display

  • Diagonal Size

    75"

  • Panel Type

    S-PVA

  • Resolution

    1920 x 1080 (16:9)

  • Active Display Size (HxV)

    1650.24(H) x 928.26(V)

  • Brightness (Typical)

    2,500 cd/m2

  • Contrast Ratio

    5,000:1

  • Viewing Angle (H/V)

    178/178

  • Response Time

    6ms

  • Display Color

    8 bit - 16.7M

  • Color Gamut

    72%

  • H-Scanning Frequency

    30 ~ 81kHZ

  • Maximum Pixel Frequency

    148.5Mhz

  • V-Scanning Frequency

    48 ~ 75Hz

Connectivity

  • RGB In

    Analog D-SUB, DVI-D, Display Port 1.2

  • Video In

    HDMI1, HDMI2, Component(CVBS Common)

  • Audio In

    Stereo Mini Jack

  • RGB Out

    DP1.2(Loop-out)

  • Video Out

    N/A

  • Audio Out

    Stereo Mini Jack

  • Power Out

    N/A

Design

  • Stand Type

    N/A

Power

  • Power Supply

    AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

  • Power Consumption (Off Mode)

    less than 0.5W

  • Power Consumption (On Mode)

    Max:935,Typical:550

  • Power Consumption (Sleep Mode)

    less than 0.5W

Dimension

  • Net Dimensions (HxWxD)

    1,675.8 x 953.8 x 123.1

  • Package Dimension (HxWxD)

    1,815 x 1,075 x 415

Weight

  • Set Weight

    42.2kg

  • Package Weight

    54.2kg

Mechanical Specification

  • VESA Mount

    900 x 600

  • Bezel Width

    11.7mm

  • Media Player Option Type

    Embedded, SIM (Slide in Module )

Operation Conditions

  • Temperature

    0~ 30 (Direct Sunlight)

  • Humidity

    10~80

General Feature

  • Special

    Plug and Play, MagicInfo S2, Slide in Module, Digital Daisy Chains(100ea), Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Portrait Installation Support, Button Lock, Smart Scheduling, WiFi Embedded, Sunglasses Viewable

  • Speaker

    N/A

Optional Feature

  • Protection Glass

    N/A

Internal Player (MagicInfo)

  • MagicInfo Support

    Yes

Certification and Compliance

  • EMC

    FCC (USA) : Part 15, Subpart B Class A, CE (Europe) : EN55022, EN55024, VCCI (Japan) : V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548 (CISPR22), CCC (China) : GB9254-2008, GB17625.1-2012

  • Environment

    N/A

  • Safety

    UL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1998, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1

Accessories

  • Included

    External IR/Brightness Sensor,Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller,Batteries
