All stock codes associated to this product
P2014H, 2951622
Dell 20 Monitor - P2014H
Bright, clear and comfortable to view.
Help boost productivity at work and enrich entertainment at home in beautiful HD with adjustable viewing features and enhanced connectivity options.
- Flexible viewing and connectivity options: Fully adjustable stand and a comprehensive set of analog and digital connectivity ports and cables.
- Excellent screen clarity: HD 1600 x 900 resolution with an ultra-wide 178/178 viewing angle.
- Environment-conscious and reliable: Built to comply with the latest environmental and regulatory standards, and protected by a Premium Panel Guarantee1 and 3 years Advanced ExchangeService2.
|
Overview
Flexible viewing features
The DellTM 20 Monitor P2014H adjusts to comfortably fit the way you work and play.
- Tilt, pivot, swivel and adjust the height of your monitor to maximize viewing comfort.

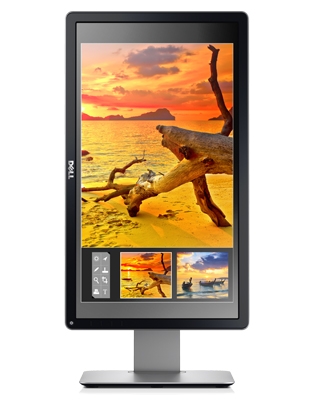

- Easily transition from landscape to portrait orientation for optimal viewing of lengthy web pages with less scrolling.
- Dell Display Manager is your one stop software application to manually adjust or auto assign optimal preset modes to specific software applications.
|
VESA compatibility
The VESA-compatible mounting plate makes it easy to install your monitor the way you want (mounting kits sold separately):
- Dell Single Monitor Arm
- Dell Dual Monitor Stand
- Wall-mounting kit
|

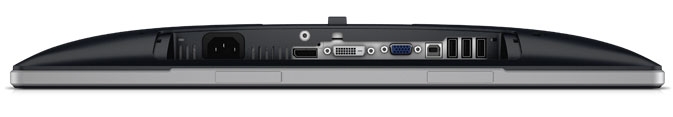

Multiple connectivity options
A comprehensive range of analog and digital ports, and their accompanying cables, provides virtually all the connectivity options you'll need over the course of the day:
- DisplayPort
- VGA
- DVI-D (excluding DVI-D cables)
- 4 x USB
|
- HD 1600 x 900 resolution at 60Hz (max.)
- 250 cd/m brightness (typical)
- 83% color gamut4 (typical)
|
Color clarity and consistency across an ultra-wide viewing angle
The in-plane switching technology offers clear images with consistent and accurate colors across a wide 16:9 aspect ratio that features:
- An ultra-wide 178/178 viewing angle
- Excellent picture quality with high 2 million:1 dynamic contrast ratio (typical) for deep blacks, bright whites and outstanding details
- 8ms (gray to gray) response time (typical) for clean, fluid motion
|
Designed for work and home
The P2014H is a superb display for use with Latitude, OptiPlex and Dell Precision systems driving high-performance business or education applications. It is also ideal for Latitude and XPS systems in home-office environments.

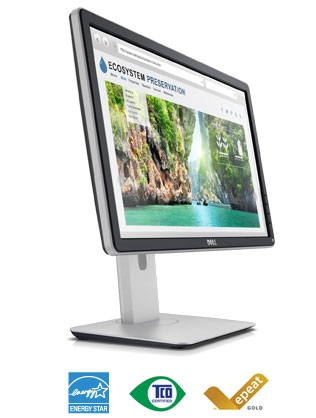

Environment-conscious design
The Dell 20 Monitor P2014H meets the latest regulatory and environmental standards.
- ENERGY STAR Qualified
- EPEAT Gold Rated
- TCO Certified Displays
- China Energy Label (CEL) compliant
|
The P2014H is BFR/PVC-free (excluding external cables) with more than 25 percent post-consumer recycled plastics in the chassis.
Energy-efficient design
With 20W normal-operation power consumption (typical) and less than 0.3W power consumption in active-off mode, the P2014H can help keep your energy costs down.
Manage power consumption wisely with PowerNap, enabled through the Dell Display Manager to either dim the monitor to the minimum brightness level or put it into sleep mode when it is not in use.
Complete your Dell Monitor experience
Your Dell 20 Monitor P2014H is just the start. Look for these great additions when finalizing your purchase.
Specifications
| Dell 20 Monitor |
|
|
Display
Diagonally Viewable Size:
49.4 cm
19.5" (19.5-inch wide viewable image size)
Aspect Ratio:
Widescreen (16:9)
Panel Type, Surface:
In-plane switching, anti glare with hard coat 3H
Optimal resolution:
1600 x 900 at 60 Hz
Contrast Ratio:
1000: 1 (typical)
2 Million:1 (Max) (Dynamic Contrast Ratio)
Brightness:
250 cd/m2 (typical)
Response Time:
8 ms (gray to gray with Overdrive)
Max Viewing Angle:
(178 vertical / 178 horizontal)
Color Support:
16.7 million colors
Pixel Pitch:
0.2712(H)mm x 0.2626(V) mm
Panel Backlight:
LED
Display Type:
Widescreen Flat Panel Display
|
 |
|
Connectivity
1 Digital Visual Interface connectors (DVI-D) with HDCP
1 Video Graphics Array (VGA)
1 DisplayPort (version 1.2)
4 USB 2.0 downstream ports
|
|
Stand
Height-adjustable stand, tilt, swivel and built in cable-management
Flat Panel Mount Interface:
VESA (100 mm)
|
|
|
Built-In Devices
Dell Display Manager
USB 2.0 Hi-Speed Hub (with 1 USB upstream port and 4 USB downstream ports)
|
|
Security
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to panel)
|
|
|
Size and Weight
Dimensions with stand (H x W x D):
13.94" ~18.42" (354.2 mm ~ 467.9 mm) x 18.52" (470.5 mm) x 7.09" (180.0 mm)
Dimensions without stand (H x W x D):
10.74" (272.9 mm) x 18.52" (470.5 mm) x 1.83" (46.5 mm)
Preset Display Area(H X V):
433.92 mm x 236.34 mm
17.08" x 9.30"
Weight (panel only - for VESA mount):
2.48kg (5.46 lbs)
Weight (with packaging):
6.17kg (13.57 lbs)
|
|
| Environmental and Regulatory |
|
|
Electrical
Voltage Required:
100 to 240 VAC / 50 or 60 Hz 3Hz / 1.5 A (Max)
Power Consumption (Operational):
20W (typical) / 36W (maximum)6
Power Consumption Stand by / Sleep:
Less than 0.3 W
|
|
|
Environmental
Temperature Range Operating:
0 to 40C (32 to 104F)
Temperature Range Non-operating:
Storage : -20 to 60 (-4 to 140 F)
Shipping : -20 to 60 (-4 to 140 F)
Humidity Range Operating:
10% to 80% (non-condensing)
Humidity Range Non-operating:
Storage : 5% to 90% (non-condensing)
Shipping : 5% to 90% (non-condensing)
Altitude Operating:
5,000 m (16,400 ft) max
Altitude Non-operating:
12,191 m (40,000 ft) max
|
|
Compliance and Standards
ENERGY STAR Compliant
EPEAT Gold Compliant
TCO Certified Displays
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
|
|
|
Whats in the box
|
Monitor with stand
Cable cover
Power cable
DisplayPort cable
VGA cable
USB upstream cable
Drivers and documentation media
Quick setup guide
Product and safety information guide
|
|
|
|
|
Warranty
3-Year Advanced Exchange Service and Premium Panel Guarantee
|
|
