All stock codes associated to this product
X99ASLIPLUS, X99A SLI PLUS, MBMX99ASLIPLUS, MBM-X99ASLIPLUS, 4719072390877

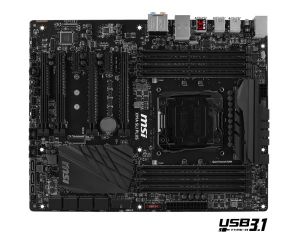

X99A SLI PLUS
THE COMPLETE POWERHOUSE
- Supports New Intel Core i7 processors Extreme Edition in LGA 2011-3 socket
- Supports Quad Channel DDR4-3333(OC) Memory
- USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection.

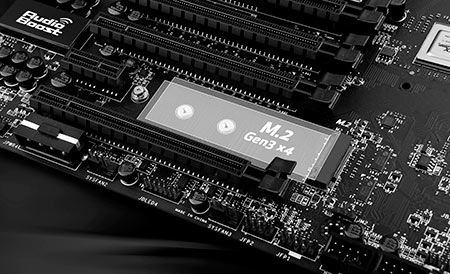

- Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s
- SATA Express + USB 3.1 + SATA 6Gb/s
- Multi-GPU: NVIDIA Quad SLI & AMD Quad CrossFire Support
- OC Engine: For More Flexible BCLK Adjustments
- USB Steel Power: Super Stable 5V Power & Better Signal Transmission over USB
- Intel Gigabit LAN: Always connected with Intel Gigabit LAN networking
- Guard-Pro: Improved Protection and Power Efficiency
- Military Class 4: Top Quality & Stability
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- Command Center: Control & Customize Your PC Settings
Overview
MSI USB 3.1 2X FASTER
USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. USB 3.1 is even faster than SATAIII! Transferring your favorite games, music and movies over USB has never been faster.
Feature
- 2X faster than USB 3.0
- 20x faster than USB 2.0
- Up to 10Gbps data transfer bandwidth
- Boost transfer rate between your PC and external storage devices

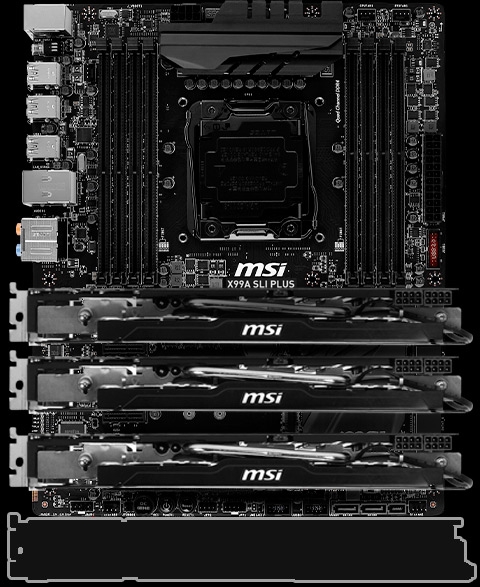

Optimized for multiple graphics cards
With a large number of PCI-Express 3.0 x16 slots for every MSI motherboard, you get to choose optimal placement for your graphics cards for better fitting and airflow up to Quad SLI/CF. That way, you can enjoy the best graphics at the highest framerate jumping off from your screen when running a NVIDIA SLI or AMD CrossFire setup.
Push your SSD to the limit
Enjoy a blazing fast system boot up and insanely fast loading of applications and games with selected MSI motherboards. We offer the next generation of high speed storage support through M.2 and SATA Express. M.2 and SATA Express transfer data through a PCI Express 2.0 x2 interface up to 10 Gb/s, making it 67% faster than SATA 3.0 solutions.
Faster storage solutions with M.2
M.2 is the successor to mSATA, offering a 67% performance increase up to 10 Gb/s. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions.
Flexible fast storage with SATA Express
SATA Express introduces a new solution in high speed storage through PCI Express, providing more bandwidth for the latest generation SSDs. We offer flexible solutions with a M.2 to SATA Express converter for more convenience

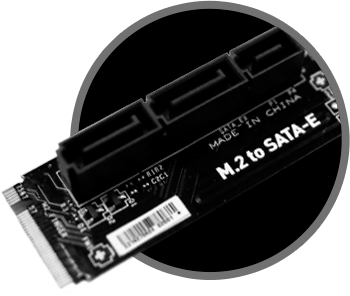

M.2 to SATA Express
OC Engine
Run into unstable situations when pushing your CPU to the limit? This occurs because the internal clocks are linked through the 100 MHz BCLK strap. Thanks to a integrated Clock Generator, MSI® motherboards support more flexible BCLK adjustments, from 100 / 125 / 167 MHz straps. Using these straps prevents system crashing while overclocking on the edge and opens doors to achieve the absolute maximum.
INTEL GIGABIT LAN
Always connected with Intel Gigabit LAN networking. The latest MSI 9 series motherboards come equipped with the high quality network solution from Intel. Optimized for multimedia and gaming use to deliver a stable and fast network connection.
Military Class 4
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.
SUPER FERRITE CHOKES
uper Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
Circuit Protection
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our motherboards.
ECO Power
With MSI ECO Center you can physically cut the power to unused chips to save up to 29% power usage.
Humidity Protection
10% Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
High Temperature Protection
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
ESD Protection
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI Protection
All MSI motherboards comply with stringent American FCC regulations and reduce the impact of Electromagnetic Interference.
ECO Power
ECO Power helps users to manage their hardware and power usage. Save up to 19% power consumption by completely disabling unnecessary hardware. ECO Power not only lowers the power consumption but also avoids short circuiting and signal noise.
| DEVICE |
ON (W) |
OFF (W) |
SAVE WATT |
| USB 3.0 |
65.5 |
64.0 |
1.5 |
| USB 3.0 |
65.5 |
63.8 |
1.7 |
| USB 3.0 |
65.5 |
64.1 |
1.4 |
| Wi-Fi |
65.5 |
63.8 |
1.7 |
| M.2 |
65.5 |
62.2 |
3.3 |
| CPUFAN* |
65.5 |
64.8 |
0.7 |
| SYSFAN1* |
65.5 |
64.8 |
0.7 |
| SYSFAN2* |
65.5 |
64.8 |
0.7 |
| SYSFAN3* |
65.5 |
64.8 |
0.7 |
| TOTAL |
65.5 |
53.1 |
12.4 |
USB
SATA
19% Save
Rear I/O USB
Circuit Protection
With specially designed circuit protection, the MSI motherboard protects the CPU against overheating and USB devices from short circuiting.
Power Supply
USB
CPU
USB
USB STEEL POWER
Are your USB Bitcoin ASICs drawing too much USB power resulting in losing bitcoins? USB Steel Power offers a stable 5 volt to all USB ports via an extra PWM, optimizing all USB ports so that youll never have to worry about any Bitcoin loss.
Front USB connectors
USB 5V PWM
USB 3.0
REAR I/O USB
POWER SUPPLY

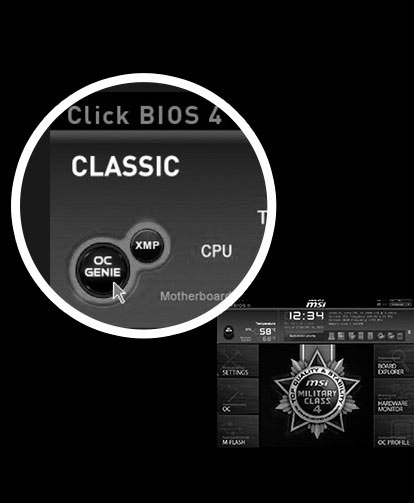

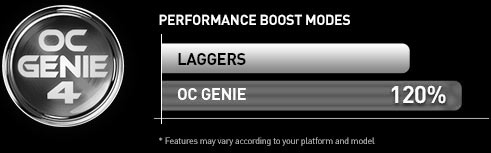

OC Genie 4
With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.

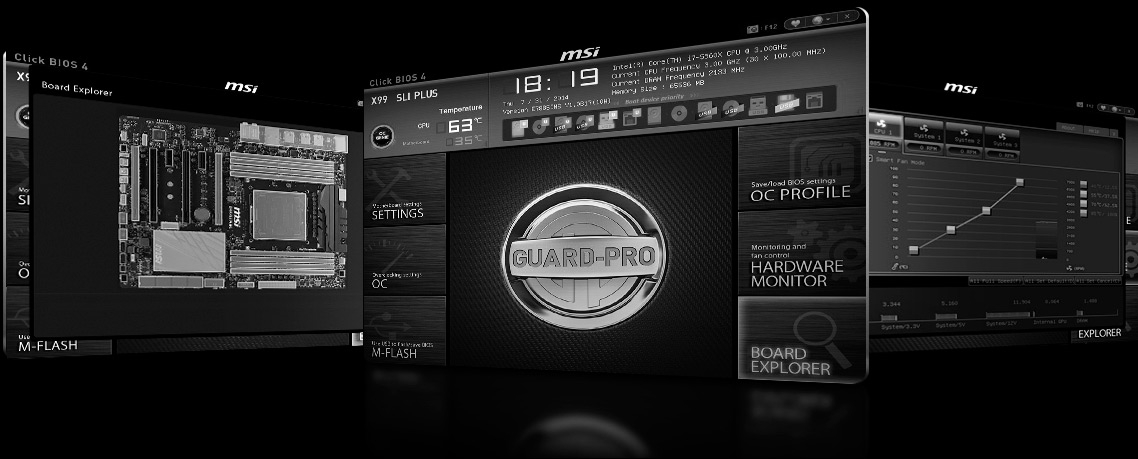

CLICK BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
Software
COMMAND CENTER
MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.
LIVE UPDATE 6
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.
UNLIMITED RAMDISK
MSI Command Center integrates an unlimited RAMdisk. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD.
- Speed up system performance
- Load complete game images
- Speed up games, apps and browser
ECO CENTER
Save the planet, lower your electrical bill. ECO Center lets you disable unused chips and functions used on your motherboard. By cutting off the power entirely, your motherboard will run more efficient, up to 29%!

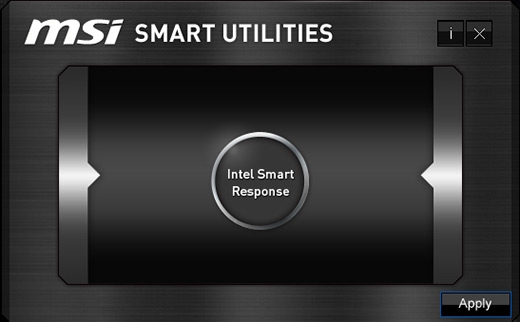

SMART UTILITIES
The MSI Smart Utilities application helps to easily setup, configure and boost your systems performance and more through Intel key technologies:
This feature only works on platform/model that supports Intel Smart Response technology.

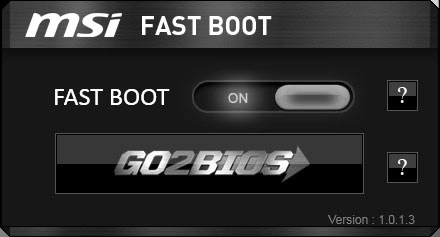

FAST BOOT
No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.
Specifications
DDR4 Memory: DDR4 2133/2200*/ 2400*/2600*/2666*/2750*/3000*/3110*/3333*(*OC)MHz
SATA Express: 1
CPU (Max Support): i7
M.2 port: 1
FSB / Hyper Transport Bus: 100 / 125 / 167MHz
Chipset: Intel® X99 Express
Memory Channel: Quad
DIMM Slots: 8
Max Memory (GB): 128
PCI-Ex16: 4
USB 3.1 ports (Rear): 2
PCI-E Gen: Gen3
PCI-Ex1: 2
SATAIII: 10(2 x ports reserved for SATA Express port)
USB 3.0 ports (Front): 4
USB 2.0 ports (Front): 4
RAID: 0/1/5/10(SATA1~6 only)
LAN: 10/100/1000*1
TPM: 1
USB 3.0 ports (Rear): 6
USB 2.0 ports (Rear): 2
Audio ports (Rear): 5 + Optical S/PDIF OUT
Form Factor: ATX
SLI: Y
3-way SLI: Y
CrossFire: Y
