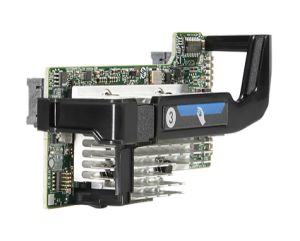

HP FlexFabric 20Gb 2-port 630FLB Adapter (700065-B21)
The HP FlexFabric 20Gb 2-port 630FLB Adapter for HP ProLiant Gen8 Blades servers gives you twice the bandwidth of 10 Gb adapters for virtualized and converged data centers. This new FlexibleLOM Adapter improves Ethernet, FCoE and iSCSI speed increasing workload performance and scalability.
Each FlexFabric 20Gb adapter replaces a 10Gb Nic and 8Gb FC HBA simplifying I/O hardware by 50% and reducing costs by 60%.
Features
20Gb bandwidth improves performance and accelerates virtualized workloads.
2X bandwidth improvement to remove server I/O bottlenecks.
One 20Gb adapter provides 35% cpu improvement over two 10Gb adapters.
Flex-20/FlexFabric technology allows you to dynamically fine tune up to four partitioned connections to meet different application needs.
Flex-20/FlexFabric technology simplifies I/O hardware and reduces costs.
Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.
Each adapter eliminates server I/O hardware by 50% and reduces costs by 60%.
Reduce up to 95% of the hardware needed to connect servers to the network, when used with the HP Virtual Connect FlexFabric 20/40 F8 Module.
Centralized Life-cycle management streamlines operations.
Provision multiple adapters in seconds using Virtual Connect profiles.
Manage updates from centralized Virtual Connect Manager or Virtual Connect Enterprise Manger.
Orchestrate reliable adapter firmware updates on multiple blade servers with HP Smart Update Manager (SUM).
Specifications
Technical features
Network processor
Broadcom BCM 57840S with integrated MAC/PHY
Data rate
Two ports, each at 40 Gbps full duplex
80 Gbps aggregate full duplex theoretical bandwidth.
Bus type
PCI Express v2.0 (Gen 2) x8
Form factor
FlexibleLOM
Power
12W Maximum
Server supported
ProLiant servers
IEEE compliance
802.3, 802.1ab, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.1Qau, 802.3ap
Compatible operating systems
Microsoft Windows Server 2008 SP2, R2 w/SP1 (x86 and x64)
Microsoft Windows Server 2012 & 2012 R2
Red Hat Enterprise Linux (x86 and x64) 5.9,5.10,6.4, 6.5
SUSE Linux Enterprise Server 11, SP2 & SP3 x86 & x64
Solaris 10 U10
Solaris 11 x64
VMware ESXi 5.0 U3, 5.1 U2
VMware vSphere 5.5 Citrix XenServer 6.1
Product differentiator
FlexFabric 20Gb 2-port 630FLB Adapter
Dimensions and weight
Dimensions (W x D x H)
5.72 x 24.13 x 19.05 cm
Weight
0.45 kg
