All stock codes associated to this product
TLWR841HP, TL-WR841HP, NWTLWR841HP, NWTL-WR841HP, TL-WR841HP , 3391029, 6935364070625
- High power amplifier and two detachable external 5dBi high gain antennas provide superior wireless range
- Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
- Excellent wireless speed over long distance brings a more enjoyable experience for your whole-home network access
- 300Mbps wireless speed ideal for video streaming, online gaming and VoIP
Excellent Wireless Speed over Long Distance
Excellent wireless speed over long distance brings a more enjoyable experience for your whole-home network access. You no longer have to endure poor wireless performance over long distance.

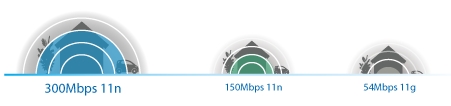

Wireless Speed up to 300Mbps
With Wireless N technology, TL-WR841HP provides much higher speed and better coverage than traditional 11G products. Speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls.
WPS
Instantly setup WiFi connections simply by pressing the "WPS" button with Utility.
Easy Setup
Either using the optimized user interface and setup wizardor the CD(included) setup wizard willallow youto get online quickly and easily.
What This Product Does

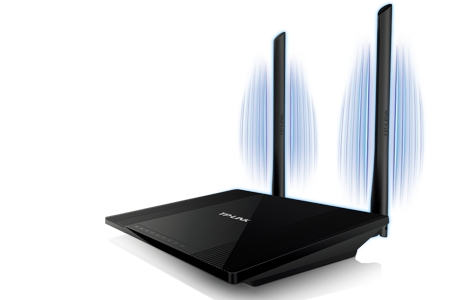

300Mbps High Power Wireless N Router TL-WR841HP is a powerful wireless solution well suited for the home or office. With 300Mbps wireless speeds, TL-WR841HP is ideal for streaming HD video, making VoIP calls and online gaming. What's more, featured with high power amplifier, 2 * 5dBi antennas and high transmission power, the device greatly boosts Wi-Fi performance.

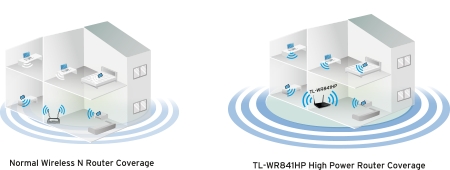

Superior Wireless Range
High power amplifier and two detachable external 5dBi high gain antennas provide superior wireless range. With the TL-WR841HP, you can enjoy your wireless network not only in restricted indoor areas but also in your backyard or even by the pool.

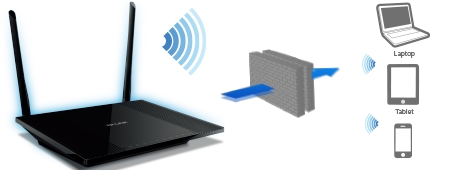

Wall Penetrating Wi-Fi
Enhanced Wi-Fi signal provides incredibly strong penetrability, cutting through walls and obstacles, eliminating dead zones, with which, you don't have to be physically tethered to the walls or floors to access the Internet.
Specifications:
| HARDWARE FEATURES |
| Interface |
4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port |
| Button |
WPS/Reset Button |
| External Power Supply |
12VDC / 1A |
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Antenna |
2*5dBi Detachable Omni Directional Antenna (RP-SMA) |
| Dimensions ( W x D x H ) |
6.6in.x5.1in.x1.2in.(168.5mmx130mmx31.5mm) |
| WIRELESS FEATURES |
| Frequency |
 2.4-2.4835 GHz |
| Signal Rate |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity |
270M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER |
| Transmit Power |
CE:
<20dBm(2.4GHz)
FCC:
<30dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless |
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES |
| WAN Type |
Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond |
| DHCP |
Server, Client, DHCP Client List,
Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server,Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec (ESP Head) |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
| Management |
Access Control
Local Management
Remote Management |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
300Mbps Wireless N High Power Router
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
