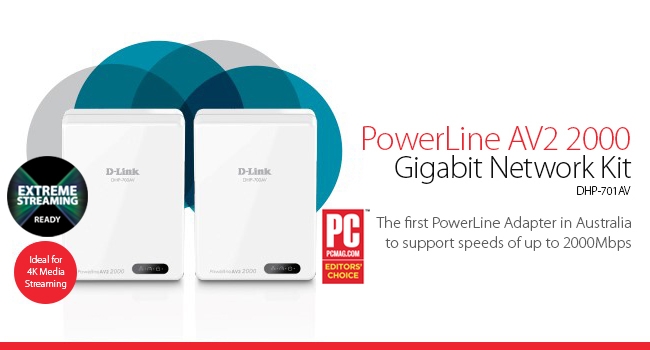

Using your existing electrical wiring, create a high-speed home network at speeds of up to 2000Mbps1. Connect several different devices, from routers, computers, access points, gaming consoles, to Smart TV's, bringing Ethernet network connectivity to hard-to-reach areas in your home.
using HomePlug AV2 MIMO technology make it ideal for activities like 4K video streaming
Higher speeds mean more entertainment
Stream more HD media, play more online games and transfer all of the large files you want. AV2 MIMO technology will guarantee you a higher data transfer rate1.
Easy setup
Simply plug and play. No need to configure or to remember passwords. A simple push of a button will get your network secured in minutes.
Extend your wired network
Extend your Powerline network by adding up to 16 adapters in total. Backward compatible with PowerLine AV, AV5003.
Power saving mode comes in handy
Power Saving mode reduces power consumption up to 85% when compared with existing PowerLine Adapters2.
1 Speeds up to 2000Mbps will let stream multiple HD videos simultaneously.
2 Actual data will vary because of the network conditions and environmental factors.
3 D-Link PowerLine AV200/AV500 Network Adapters (DHP-209AV, DHP-309AV), PowerLine AV500 Wireless N Extender (DHP-W310AV, DHP-W311AV), PowerLine AV2 1000 Gigabit Starter Kit (DHP-601AV), and Wireless N PowerLine Router (DHP-1320) may coexist but are not compatible or interoperable with D-Link PowerLine HD Ethernet Adapters (DHP-302, DHP-303) or D-Link PowerLine HD Network Starter Kit (DHP-303).
4 24/7 Technical Support available only in Australia and New Zealand. 4 1 Year Limited Warranty. Register your product via www.dlink.com.au/reg. Available only in Australia and New Zealand.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details.
2015 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, and the D-Link RoHS logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.
Technical Specifications
General
Powerline Interface
Power plug (country-dependent)
Ethernet Interface
RJ-45 Gigabit Ethernet LAN port
Functionality
Standards
IEEE 802.3
IEEE 802.3u
IEEE 1901
HomePlug AV2
Security
128-bit AES data encryption
LEDs
Power
Ethernet
PowerLine
Powerline Modulation Scheme
OFDM Symbol Modulation
Powerline Frequency Band
2 MHz to 86 MHz
Data Rate
Ethernet: 10/100/1000 Mbps (auto negotiation)
PowerLine: Up to 1900 Mbps (PHY rate)
Physical
Dimensions
98.9 x 72.7 x 34 mm (3.89 x 2.86 x 1.33 inches)
Weight
90 grams (3.17 ounces)
Power
Input: 100 to 240 V AC, 50/60 Hz
Power Consumption
3.7 W maximum
Temperature
Operating: 0 to 40 C (32 to 104 F)
Storage: -20 to 65 C (-4 to 149 F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications
CE
FCC
RoHS
UL
CE/LVD
