All stock codes associated to this product
GXV3672_HD_36

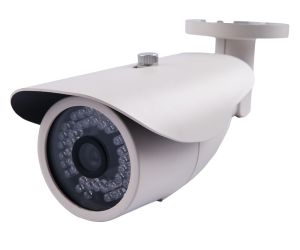

Grandstream GXV3672_HD_36
HD IP66 weather proof 1.2MP Day/Night Fixed Bullet IP Camera, 3.6mm fl, 720p, PoE
The GXV3672 series are powerful weatherproof Infrared HD IP cameras of outstanding performance and quality.
Their advanced ISP (Image Sensor Processor) powered with state-of-the-art auto-exposure/auto-white-balance algorithm and a high quality lens, ensures high fidelity video quality that matches digital still camera color grade in a wide range of light environments. They feature cutting edge H.264 real-time video compression with excellent image clarity, industry leading SIP/VoIP for 2-way audio and video streaming to mobile phones and video phones, integrated PoE, IR-CUT for day/night mode, and advanced security protection. The GXV3672 series can be managed with GSurf_Pro (Grandstream’s intuitive FREE video management software that controls up to 36 cameras simultaneously) as well as other ONVIF compliant video management systems. It also offers an advanced and flexible HTTP API for easy integration with other monitoring systems. The GXV3672 series is a powerful network camera for professional surveillance applications in outdoor environments.
Features
High quality 1.2 Megapixel and 3.1 Megapixel CMOS sensors and HD lens
Advanced multi-streaming rate real-time H.264, Motion JPEG at 720p and 1080p resolutions in full frame rate
Pre/post event recording buffer
Support Motion Detection and Notification on PC client
Support both variable bit rate and variable frame rate
Built-in high performance streaming server to allow multiple simultaneous viewers
Embedded video analytics and SIP/VoIP/IMS support
Integrated Power-over-Ethernet (802.3af)
Full ONVIF conformance with extensions in the near future
Specifications
Video Compression
H.264, MJPEG
Image Sensor Resolution
1/3”, 1.2 Megapixel Progressive Scan CMOS, 1280H x 960V
Image Sensor Sensitivity
Day/Night Mode (exceptional low noise level, low light sensitivity) Shutter: 1/10000 – 1/30 second
Focal Length
3.6mm
Aperture
F1.8
Field Angle (FOV)
100.2°(D) x 77°(H) x 54°(V)
Supported Maximum Video Resolution and Frame Rate
1280x960 (25fps)
1280x720 (30fps)
Video Bit Rate
32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording
SIP/VoIP Support
Yes
Power over Ethernet (PoE)
IEEE 802.3af class 0
Dimensions (D x L)
94mm (D) x 230mm (L)
Weight
0.52kg
Temperature / Humidity
Operating: -20°C ~ 45°C (-4°F ~ 113°F)
Storage: -30°C ~ 60°C (-22°F ~ 140°F)
10 ~ 90% RH (non-condensing)
Power Adapter
12VDC/1A
Input 100 ~ 240 VAC, 50 ~ 60 Hz
Casing
IP66 Compliant Weather-Proof Metal Case
