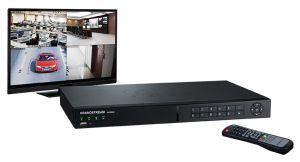

Grandstream GVR3550
Network Video Recorder (NVR) supports recording of up to 24 channels (720p), 12 channels (1080p)
The GVR3550 is a powerful Network Video Recorder (NVR) that offers small to medium businesses (SMBs) and residential users a reliable and easy-to-manage solution for video surveillance recording and monitoring.
It provides video recording, indexing, searching and video storage management for up to 24* IP video cameras to allow users to record and monitor their IP video surveillance network using one device. The GVR3550 supports all Grandstream IP Video surveillance cameras and IP Video Encoders/Decoders in addition to all ONVIF compliant IP Cameras. Users can view the live feed of up to 16 cameras simultaneously by connecting the GVR3550 to a TV or computer monitor or through remote access, and can save up to 16TB of video files on the device by connecting up to 4 hard drives.
Features
Up to 24 channels (RAID 0 and 7,200rpm HDD) or 16 channels* (RAID 1 or 5,400rpm HDD) of 720p HD video/audio real-time recording (see product FAQs for details)
Automatic discovery for IP cameras on the local network
Fully customizable recording rules: time based, event based, manual or automatic
Patent-pending storage system design that is resilient against power interruptions
Grandstream's innovative Direct I/O technology allows concurrent access to live view, searching and playback, PTZ and much more
1 HDMI and 1 VGA output for full HD local playback, easy-toaccess USB, eSATA, alarm in and alarm out ports for future expansion and external integration
1 RJ45 10M/100M/1000M network interface
Up to 4 SATA 3.5” internal hard drives with maximum 16TB storage and RAID 0 or RAID 1 configurations
Automatic recording resume after power failure and automatic storage recycling
Complete security features including role based access control, event/system logs and hard drive content encryption
Specifications
Video Recording
Up to 24 channels (RAID 0 and 7,200rpm HDD) or 16 channels* (RAID 1 or 5,400rpm HDD) of 720p (1280x720) or half the channel density using 1080p Full HD
Total Recording Rate
Up to 48 Mbps
Recording Modes
Continuous mode, record by schedule, event triggered or manual
Audio Recording
Synchronized audio and video recording
Live View
Up to 16 channels of VGA, 4 channels of 720p, or 2 channels of 1080p via HDMI or VGA output
Total Storage
Up to 16TB internally with encryp tion; additional storage available via external eSATA (Hard Drives not included)
RAID
RAID 0 or RAID 1 support
LED indicators
Power, LAN Link/Activity, Hard Drive Activity, fn
IP Cameras Supported
Grandstream GXV36xx cameras, GXV35xx encoders/decoders, & 3rd party ONVIF compliant cameras
Universal Power Supply
Input:100~240V 50/60Hz
Output:12V/5A 60W
Environmental
Operation: 0°C to 50°C
Storage: -20°C to 60°C (HDDs not included)
Humidity: 10% to 90% non-condensing
Physical
Dimensions: 440mm (W) x 343.5mm (L) x 44mm (H)
Package weight: 4052.5g
Mounting
1U rack mount with front brackets
