All stock codes associated to this product
AA75Black, AA75-Black, AP200
AP200
- The 4th Gen Intel Processor
- MSI Anti-Flicker and Less Blue Light Technologies to protect users eyesight
- MSI Military class 4 components
- Based on Ergonomic, height-adjustable screen and monitor with automatic rotation adjustment (request Foot stand)
- LED Backlight and Anti-Glare display
- Easily to upgrade memory via an extra window on the backside
- 2 x Com ports for barcode scanner, credit card reader, receipt printer, and so on
- VGA out and HDMI out for dual monitor scenario
- Feature MSI Super Charger technology for fast and power-off charging
- Support TPM 1.2
Overview
The latest 4th generation Intel Pentium / Core i3 Processor, representing superior performance over previous generations.
AP200 features the fastest Intel Dual-core Haswell Processor built on the latest 22nm Shark Bay Platform. Intel H81 Express Chipset is the 4th generation single-chip design to support the LGA1150 socket. In all, this high performance combination in a low power package provides enhanced system speed and higher productivity.
Double Eye Protection
MSI Exclusive Anti-Flicker
The Anti-Flicker technology integrated into the AP200 display stabilizes the screen's output current and prevents flickering undetectable to the naked eyes. Even when used for extended periods of time, Anti-Flicker technology effectively reduces eyestrain, improving productivity and quality of life.

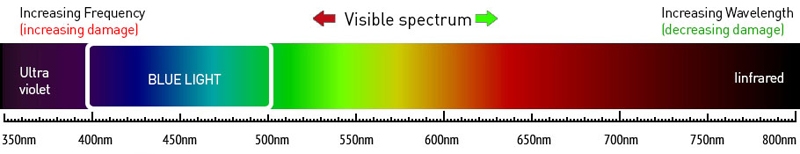

Less Blue Light
Blue light is light with wavelengths in the 381nm to 500nm range. This can be dangerous to the human eye, causing cataract and retinal degeneration. The AP200 also features exclusive "Less Blue Light" technology to effectively reduce visible blue spectrum energy emitted from the display, thus reducing eyestrain and preventing vision damage.
Military Class 4
The AP200 is equipped with highly-stable and high-quality military-grade parts and components with SFC, Dark CAP capacitors, and Hi-c Cap, which provide excellent stability, power efficiency, and performance. These three key components have passed U.S. Military Standard MIL-STD-810G certification and provide extra protection to ensure the system’s stable operation.
Hi-C CAP - Low Profile, High Efficiency
A Hi-c CAP is a very small, but super-efficient capacitor. Besides ensuring enough spacing around a CPU socket to install large coolers, it also allows for 93% energy efficiency. Thanks to Hi-c CAP's MSI mainboards are the most energy efficient in the market.
Super Ferrite Choke - High Power/Efficiency
Super Ferrite Chokes use a Ferrite core that is Super-Permeable. This allows the Super Ferrite Chokes to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.
Dark CAP - High Efficiency, high heat resistance
With their aluminum core design, Dark CAP's have been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

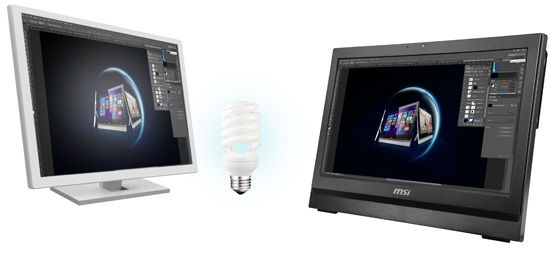

Anti-Glare Display
MSI offers the best and most comfortable visual experience for corporate environments. The AP200 features an anti-glare display to reduce background reflections in offices, well-lit shop floors, and in study rooms, thereby helping to reduce eyestrain and enabling users to better concentrate on the contents of their computer monitor without being distracted by reflections.

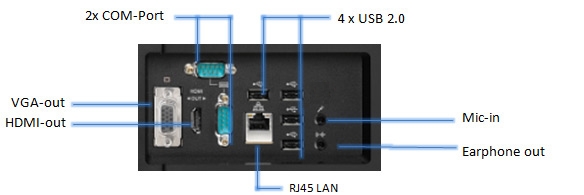

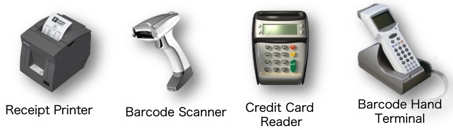

2 COM Port
AThe MSI AP200's two COM ports are best suited for commercial POS applications, such as connecting barcode readers, credit card readers, receipt printers, and more.

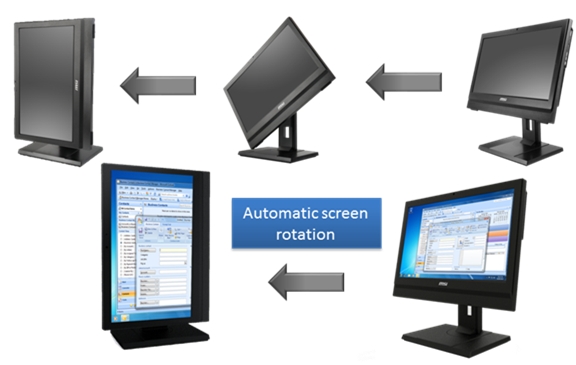

Auto-Pivot Design
With an optional height adjustable pivot stand (pivot, left-right rotation, vertical position, and incline angle), the AP200 is designed to meet a wide variety of different needs, uses, and range of applications. The pivot Stand also offers auto screen rotation, commonly associated with smart phones and tablet computers, to automatically and conveniently rotate the screen display when flipped 90 degrees without having to manually tweak software display options.
USB 3.0 with MSI Super Charger
With MSI Super Charger technology, it does not only function as normal USB 3.0 port, but also enable users to charge cell phones or MP3 players even when the system is tuned off.
The USB 3.0 supports transfer rates up to 5 Gbps, or ten times that of USB 2.0, making it the fastest transfer interface available on the market today.

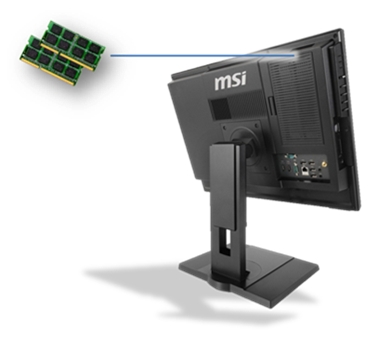

Easy Upgrade
AThe AP200 features a removable panel to facilitate system memory upgrades, that authorized dealer or service center can upgrade on their own easily and max up to 16GB.
Specifications
CPU
Intel® Core™ i3-4160 Processor (3M Cache, 3.60 GHz)
OS
No Operating System
Chipset
Intel® H81 Chipset
Memory
4GB DDR3 1333/1600 MHz, 2 SO-DIMMs, up to 16GB
Graphics
Integrate Intel® HD Graphics
Panel Resolution
20” LCD Panel LED Backlight 1600x900 HD+Flciker-Free
Touch Panel
Non Touch (For Win8 / Win7)

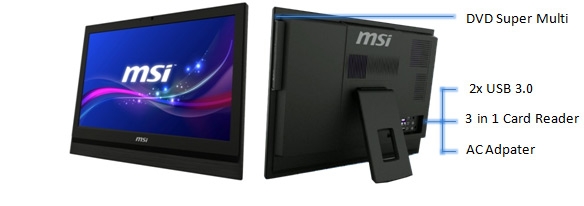

HDD
500GB 3.5'' SATA III
Optical Drive
Tray-in DVD Super Multi
Audio
2 x 3W Speakers
LAN
10/100/1000 x 1
Wireless LAN
802.11 b/g/n WiFi
USB 3.0 port
2 (1 with Super Charger)
USB 2.0 port
4
Card Reader
3 in 1 (SD, MMC, MS)
Webcam
1M-pixel Full HD
Expansion Slot
Mini PCI-E 2x (1xWiFi)
HDMI out
1
VGA out
1
COM Port
2
Mic-in/Headphone-out
1 /1
Keyboard / Mouse
USB Keyboard / Mouse
AC Adapter
120W
AIO Wall Mount Kit II
Y
AIO Wall Mount Kit III
Y
Dimension(WxDxH)
495x359x91 mm with holder / 495x493x166 mm with stand
Net Weight
8.99 kg with holder / 9.76 kg with stand
Gross Weight
9.82 kg with holder / 10.76 kg with stand
