The Carbide Series 88R microATX mid tower has all the modern features you need, with SSD compatibility, USB 3.0, and room for full sized graphics cards and power supplies. Room for five 120mm fans offers you excellent cooling potential and the clean, modern design and large window make the case as beautiful as it is functional.

The 88R also fits up to a 240mm front panel radiator if you're upgrading to liquid cooling, and the various tool free drive and cable routing options means your build will be fast and easy.

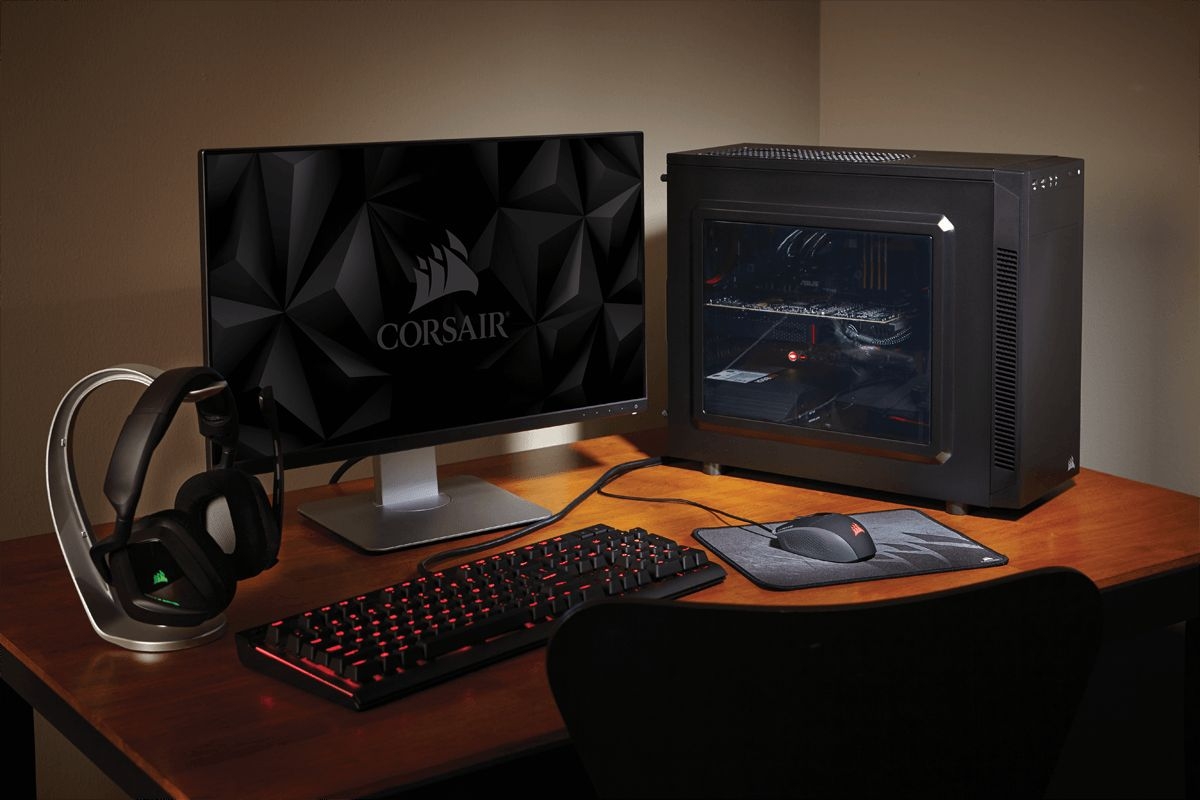

Elegant, modern design

The 88R is both professional enough for the office, and customizable enough for any home PC build.

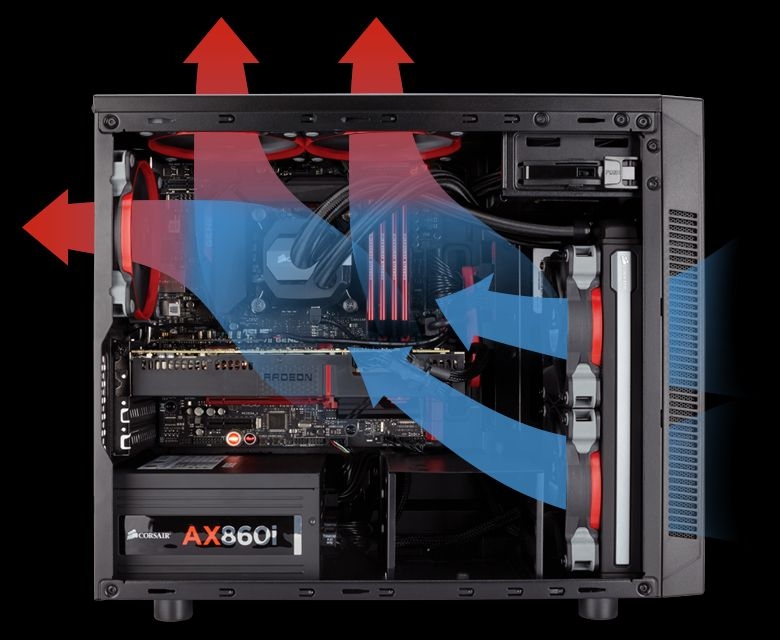

The smart design channels air directly to your graphics card to provide it with the cooling it needs for intense gaming.

  Contents and Specifications

Package contents

• Carbide Series 88R MicroATX Mid-Tower Case
• Accessory kit
• Warranty and Support Information

 Compatibility

•  MicroATX and Mini-ATX motherboards

 Technical specifications

• Front support for 240mm radiators: Upgrade your CPU or GPU to liquid cooling with support for a 240mm front radiator
• USB 3.0 Compatible: USB 3.0 front panel port for modern high-speed peripherals
• SSD Support: Built-in mounts for high-performance 2.5" SSD drives
• Direct Airflow to Top GPU: Direct airflow gives your GPU added cooling for intense gaming sessions
• Up To Five Fan Mounts and One Included 120mm Fan: A 120mm fan gets your cooling off the ground, and extra mounts provide added expandability

• Tool-free 3.5" and 5.25" Drive Installation: Builds are made easier with tool-free drive installation
• Thumbscrew Side Panels: No tools are needed to easily access the inside of your case
• Flush-Mounted Side Panel Window: The side panel window showcases your PC's components
• Cable Routing Channels and Holes: Builds are further simplified and aesthetics improved with easy cable organization
• Modern Internal Layout: The interior makes building your dream PC easier and improves overall performance

Technical Specifications

Warranty: Two years
Weight: 3.65kg
Case Form Factor: Mid-Tower
Dimensions: 440mm x 198mm x 378mm
Case Motherboard Support: Mini-ITX, MicroATX
Maximum GPU Length: 383mm
Maximum CPU Cooler Height: 150mm
Maximum PSU Length: 160mm
Case Expansion Slots: 4

Case Drive Bays

(x1) 5.25in
(x2) 3.5in
(x2) 2.5in

Case Material: Steel

Case Power Supply: ATX (not included)

External Connections
(x1) USB 3.0
(x1) USB 2.0
(x1) Headphone Port
(x1) Microphone Port

Fan Mount Locations
Front: (x2) 120mm
Top: (x2) 120mm
Rear: (x1) 120mm

Radiator Mount Locations
Front: 120/240mm
Rear: 120mm
