GA-Z170X-UD5-TH | Gigabyte GA-Z170X-UD5 TH (Rev. 1.0) Motherboard

Overview

World's First Intel® Thunderbolt™ 3 Certified Motherboard
Supports 6th Generation Intel® Core™ Processor
Dual Channel DDR4, 4 DIMMs
Thunderboltâ„¢ 3 brings Thunderbolt to USB Type-Câ„¢ at speeds up to 40 Gbps
Intel® USB 3.1 with USB Type-C™ support Power Delivery 2.0 for up to 36W
3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
3 SATA Express Connectors for up to 16Gb/s Data Transfer
HDMI 2.0 for 4K@60Hz and 21:9 aspect ratio provide the finest viewing experience
115dB SNR HD Audio with Built-in Rear Audio Amplifier
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Gold Plating for CPU Socket, Memory DIMMs with 2X Copper PCB
APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
GIGABYTE UEFI DualBIOSâ„¢ Technology

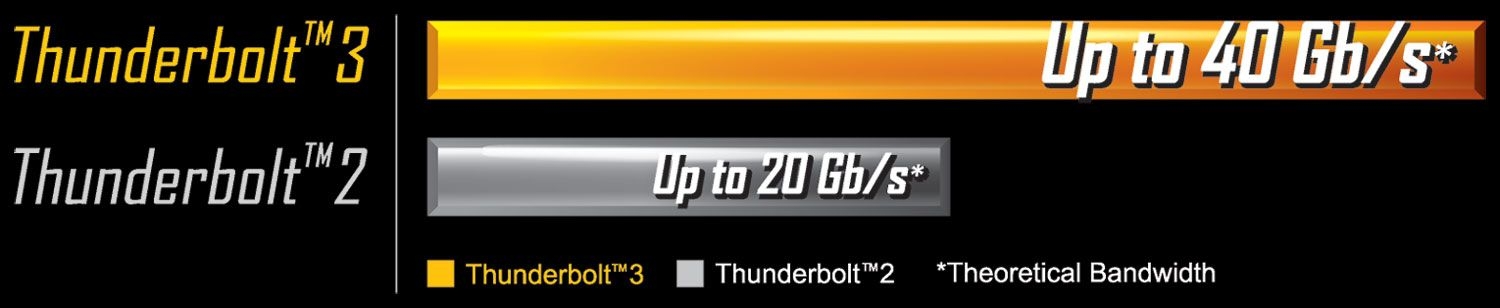

Next Generation 40 Gb/s Thunderboltâ„¢ 3
Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection

Thunderbolt

Powered by Intel's own Thunderbolt controller the new Thunderboltâ„¢ 3 protocol, which is available over two USB Type-Câ„¢ connectors on the back I/O of the GIGABYTE Z170X-UD5 TH, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

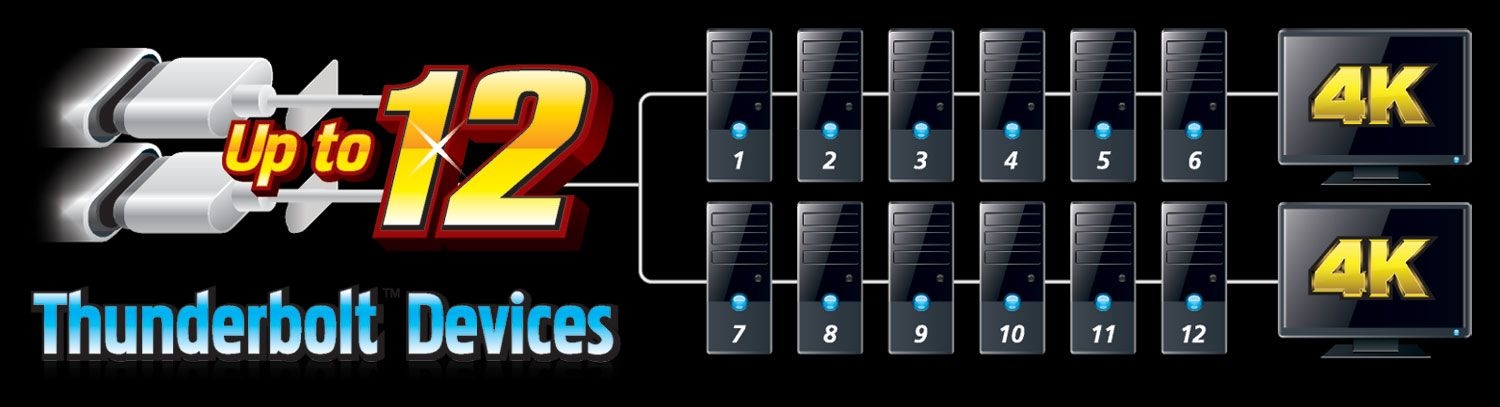

Daisy-chain Multiple Devices

Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-UD5 TH is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z170X-UD5 TH’s dual USB Type-C™ ports.

Compatibility may vary according to system configuration and device specifications.

GIGABYTE Ultra Durable â„¢ Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

Connecting the Future - USB Type-Câ„¢:

The World's Next Universal Connector
Reversible Dual USB Type-Câ„¢ with Thunderboltâ„¢ 3, USB 3.1 and Power Delivery 2.0

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

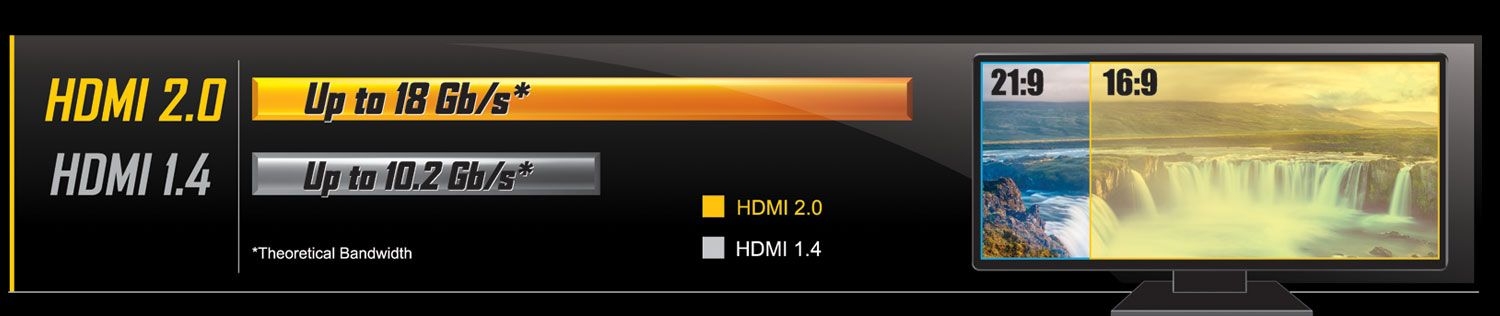

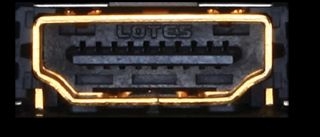

HDMI 2.0 for 4K/60P/21:9/HDCP 2.2 Support

HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

Turbo B-Clock:

Built-in Advanced Performance Tuning IC

Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

2-Way SLIâ„¢/3-Way CrossFireâ„¢ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

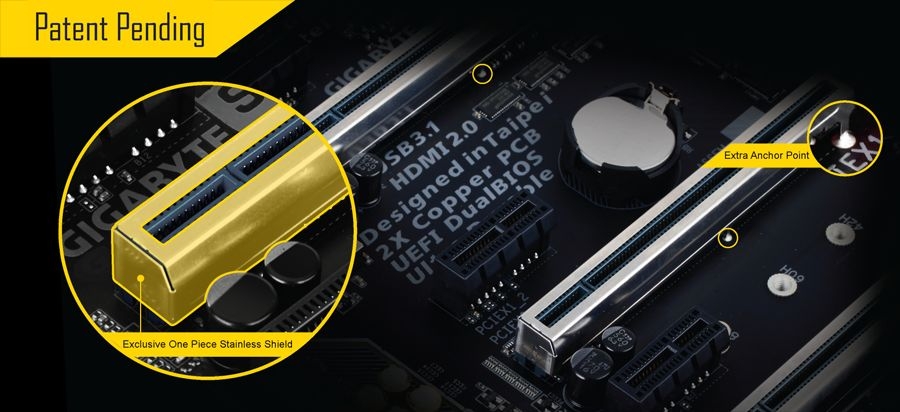

Industry Leading Ultra Durableâ„¢ PCIe Metal Shielding

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

PCIe Gen3 x4 M.2

With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

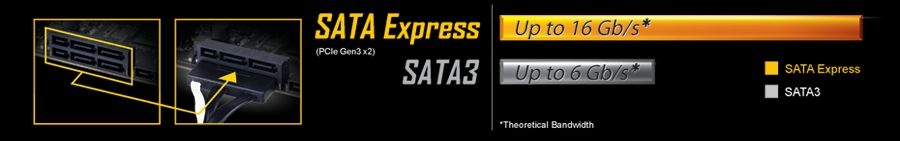

Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

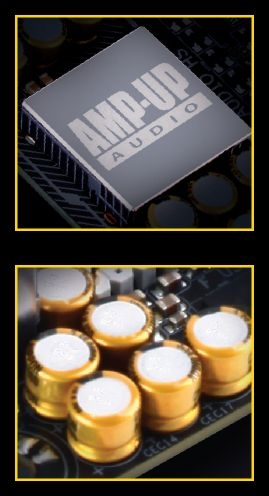

High Definition Audio Design

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Ambient LED

GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

The below photos are for reference only.

Intel® GbE LAN with cFosSpeed

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments.

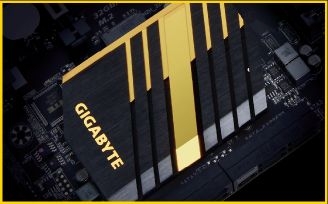

All New Heat Sink Design

GIGABYTE motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.

All New GIGABYTE App Center Including EasyTuneâ„¢, Cloud Stationâ„¢ Utilities and More...

GIGABYTE's EasyTuneâ„¢ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

APP Center

GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.

Easy Tuneâ„¢

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Stationâ„¢

GIGABYTE Cloud Stationâ„¢ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

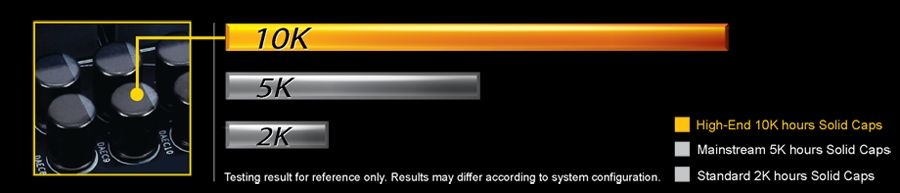

Long Lifespan Durable Blackâ„¢ Solid Caps

GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

2x Copper PCB Design (2 oz Copper PCB)

GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

15µ Gold Plated CPU Socket Design

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

GIGABYTE Patented DualBIOSâ„¢ (UEFI) Design

GIGABYTE Ultra Durableâ„¢ motherboards feature GIGABYTE DualBIOSâ„¢, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOSâ„¢ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMIâ„¢ - The Next Generation Multimedia Interface

HDMIâ„¢ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMIâ„¢ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMIâ„¢ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Specifications
