RS550-AMAAG1-AU | CoolerMaster 550W V550 Series - ATX 12V v2.31, 120mm Fan, Semi-Modular Cable, 80 PLUS Gold Certified

V550 Semi-Modular

• 100% Japanese capacitors
• Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
• Powerful Single +12V rail for superior load balancing and VGA compatibility
• Modular cable designs for better cable management
• Japanese capacitor ensures an extended lifetime and excellent holdup times, in case of power fluctuation.
• Custom DC-DC module design offers higher efficiency and voltage stability
• 80 PLUS Gold certified: up to 92% efficiency @ typical load
• Reliable 5 year warranty

Overview

PRODUCT HIGHLIGHT

Intelligent 120mm fan

The intelligent 120mm fan speed controller with honey combo mesh increases airflow for better heat dissipation.

Modular Cable System

Only use the cables you need, no unnecessary cable mess! Building a clean and tidy system with excellent airflow has never been this easy and convenient.

Japanese capacitor

It ensures an extended lifetime and excellent hold up times

Unique 3D Circuit Design

It offers high efficiency, improves the heat dissipation and reduces the unnecessary cables which results in much lower crosstalk, signal noise.

Custom DC-DC Module

Our custom 12V to 3.3V and 5V module design offers notably higher efficiency and voltage stability than other designs.

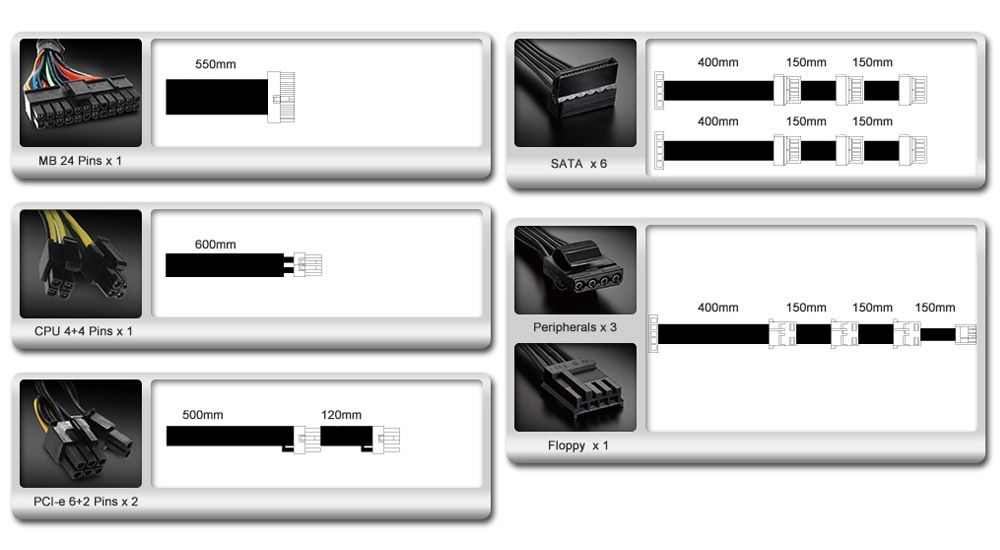

Connectors

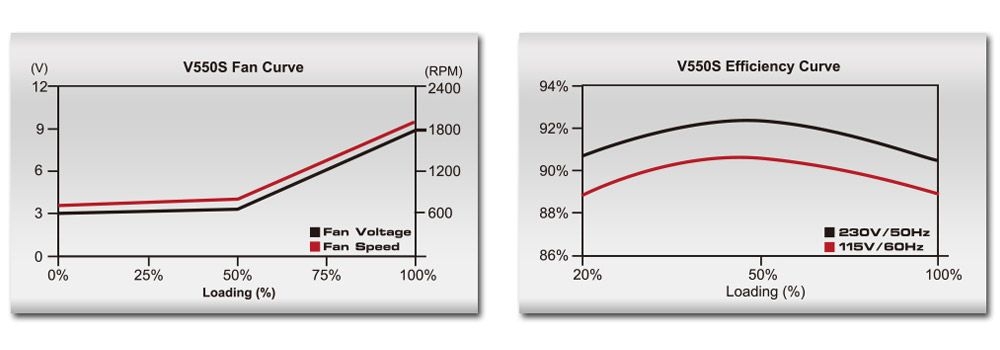

 Performance

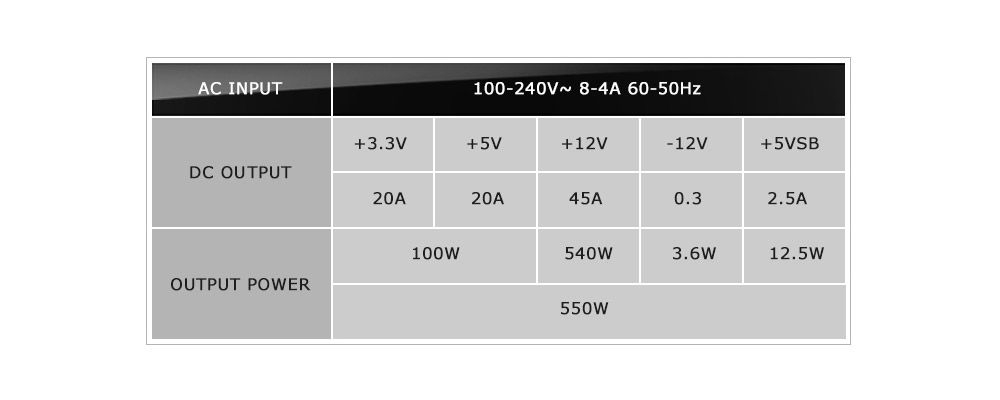

AC INPUT / DC OUTPUT
