All stock codes associated to this product
AFM2S3W32GS, AFM2S3W32G-S
AFM2S3W32G-S
Overview

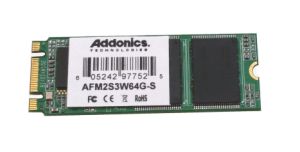

Addonics' Industrial class M2 SSD is one of the most reliable SSDs in
the market. Made of SLC NAND flash, the Addonics Industrial M2 SSD
boost the durability of the card to over 7 times that of commercial
grade MLC SSD. This highly durable M2 SSD is ideal for mission critical
applications that are deployed in different industries such as data
center, finance and aerospace or manufacturing facilities with equipment
operating in a harsh environment.
The Addonics M2 card is also available in Enterprise class M2 that is
made of MLC flash. This offers a more economical solution for
applications or equipment operating in industrial temperature range .
For detail information on the Enterprise grade MLC type of M2 card,
please visit the following product Enterprise M2 SSD product web page.
Features
- Industrial class M2 SLC SSD
- Great for the following industries: data center, finance, aero
space, manufacturing and others that require high durability and wide
operating temperature range
- Choice of 16G - 64GB capacities
- SATA III 3.0Gbps interface
- SLC NAND flash
- Data transfer rate
- 64G - Read Seq. up to 130MB/s, Write Seq. up to 110MB/s
- 16G and 32G - Read Seq. up to 66MB/s, Write Seq. up to 60MB/s
- Industrial operating temperature: -40°C to +85°C
- TeraBytes Written (TBW): 3,448TBW for 64GB
| Model |
Capacity |
NAND type |
Price |
Max. Read speed |
Max. Write speed |
Operating temp. |
| AFM2S3W16G-S |
16GB |
SLC |
$175.00 |
66 MB/sec |
60 MB/sec |
-40°C to +85°C |
| AFM2S3W32G-S |
32GB |
SLC |
$325.00 |
130 MB/sec |
110 MB/sec |
-40°C to +85°C |
| AFM2S3W64G-S |
64GB |
SLC |
$639.00 |
130 MB/sec |
130 MB/sec |
-40°C to +85°C |
Specifications:
- Flash type: SLC
- Compliant with SATA Revision 3.0
- Advanced Flash management
- Static and Dynamic Wear Leveling
- Bad Block Management
- TRIM
- SMART
- Over-Provision
- Support expanded register for SATA protocol 48 bits addressing mode
- Data transfer rate
- 64G - Read Seq. up to 130MB/s, Write Seq. up to 110MB/s
- 16G and 32G - Read Seq. up to 66MB/s, Write Seq. up to 60MB/s
- Power Fail Protection
- Voltage: 3.3 V +/- 5%
- Power consumption:
- Active mode: < 2000mW
- Idle mode: < 285mW
- DEVSLP mode: < 5mW
- Dimension (LxWxH): 60mm x 22mm x 3.9mm
- TeraBytes Written (TBW): 3,448TBW for 64GB
- ECC scheme: Up to 72 bits / 1K Byte
- UART function
- GPIO
- Operating shock rating: 1,500G
- Vibration: 20G
- MTBF: > 3,000,000 hours
- Humidity: RH 95% under 55°C (operational)
- Complies with Compact flash Association specification standards
- Operating Temperature:-40°C to +85°C
- Storage Temperature: -40°C to + 85°C
- Warranty: 3 year
- Compliant: RoHS, CE/FCC
