All stock codes associated to this product
FDWCUKELVINS24BK, FD-WCU-KELVIN-S24-BK

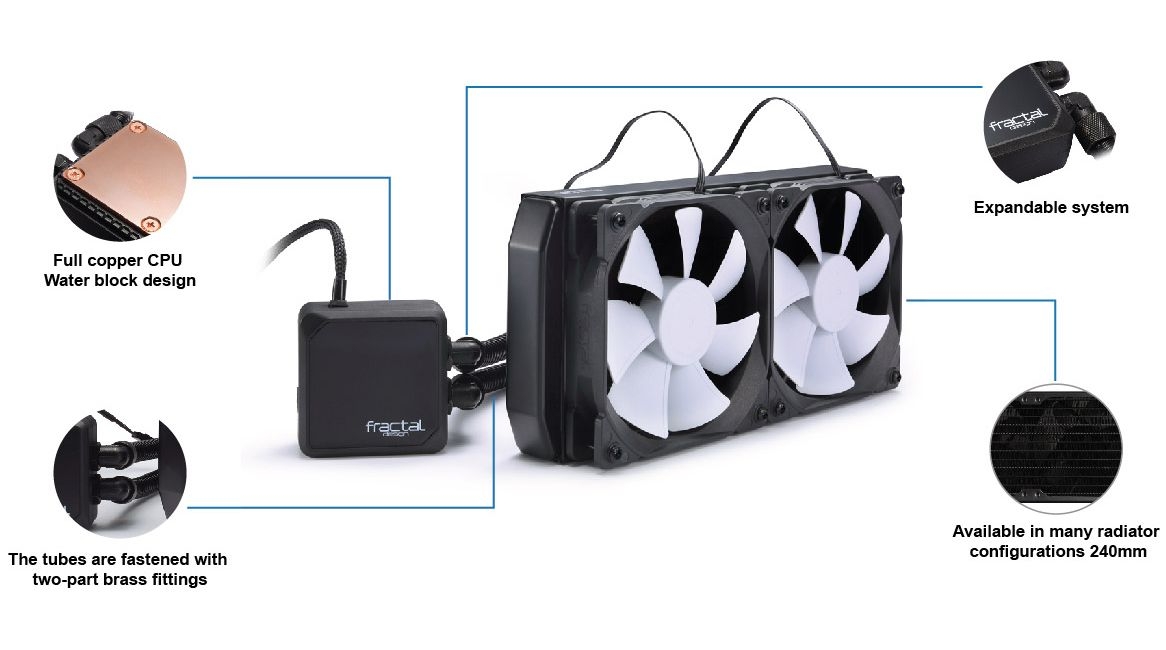

Kelvin S24
Simple to install, silent operation, powerful performance and easy
expandability define the Kelvin Series. The silent high-performance
ceramic pump is strong enough to support considerable expansion, should
you decide to include GPU blocks and/or additional radiators in the same
loop.
The Kelvin Series water cooling systems are constructed from
enthusiast class components. Both the CPU block and the radiator are
made from pure copper, for maximum performance and an increased product
life span with zero maintenance required.
All modern CPU sockets are supported by the versatile, easy-to-use mounting kit.
Key features
Fantastic cooling performance
- The strong pump and the full-copper construction places the Kelvin
Series water cooling system ahead of the pack in cooling performance.
- Pump resistor included for the ability to optimize the system to a
lower noise level, while maintaining impressive performance levels
- Dynamic GP-12 PWM fans for quiet operation with significantly large airflow
- Wide PWM speed range, 500-2000 RPM, providing accurate and better fan speed control with quieter operation
Expandable system. Just open it up to get the full benefits of custom water cooling, with the ability to add any components you want to the loop, such as a graphics card cooler.
- High pressure pump allows strong water flow rates even when an
additional CPU or GPU water block or an additional radiator has been
added to the loop.
- Standard G 1/4" thread fittings for compatibility with the vast majority of enthusiast water cooling products.
- The tubes are fastened with two-part brass fittings, providing a
secure seal while being easy to open and re-seal with a standard wrench.
- Easy refilling with dedicated fill port. Extra strong fill port that can be accessed by hand, with an allen key or with a coin for easy durable handling.
Made with enthusiast-grade components developed in cooperation with Alphacool
- Highly reliable ceramic bearing pump, with custom tuned maximum RPM for the optimal balance between performance and noise level
- made with a revolutionary copper/nylon radiators
- Full copper CPU Water block design featuring strategic jet plate improvements
Available in many radiator configurations
- Available with a triple fan radiator, a 30mm thick 360, providing a
much larger area than nearly all other pre-filled water cooling units
- Also available in the two most common formats: thin 240mm and thick 120mm
Long lifetime. The performance of most pre-filled water cooling systems degrade quite significantly over time, because of galvanic corrosion and water loss.
- Galvanic corrosion occurs over time when two metals with different
galvanic potential (such as aluminum and copper) are in contact. It can
be slowed with anti-corrosion additives in the water, but the best way
to maintain performance over time is to use metals with similar galvanic
potential. The Kelvin Series water cooling system is constructed with
pure copper in both the radiator and the water block, along with brass
fittings.
- To avoid the common issue of most pre-filled water cooling units (that tend to lose performance over time due to water loss in the tubes), Fractal Design equipped the Kelvin series with a fill dedicated port.
General Specifications:
- Block/pump assembly measurements: 69*69*40 mm
- Tubing Measurements: 320mm long, 11mm outer and 8mm inner diameter
- Fitted with anti-kink coils for worry-free installation
- Kelvin S24 Radiator Measurements: 30*124*275mm
- Thread class for fill port and all tube fittings: G 1/4"
- Supported sockets: Intel: 775,1150,1155,1156,1366,2011,2011-v3; AMD: AM2,AM2+,AM3,AM3+,FM1,FM2,FM2+
- Fans included: 2 pcs
- Fractal Design Zeroâ„¢ Thermal Paste ; 1 g syringe, sufficient for multiple mountings
- Colors Available: Black
- Net weight - Base unit only, not including mounting or fans: 1.2 kg
- Net weight - Dynamic GP-12 PWM fan, per fan: 159 g
- Net weight - Total excluding packaging and manual. Includes fans,
mounting kit for all platforms, cooling paste (including packaging for
the cooling paste) and adapter cable: 1.8 kg
- Package dimensions - W x H x D: 350*250*151 mm
- Package weight: 2.5 kg
Fan Specification:
- Fractal Design Dynamic GP-12 PWM fans
- 500 - 2000 RPM
- PWM control
- Max air flow: 87.6 CFM
- Max pressure: 2.30 mm H2O
- Acoustical noise: 32.2 dB(A)
- DC 12V, 0.20A
Pump Specification:
- Ceramic bearing
- 2400 RPM
- Voltage control
- Maximum water flow: 72 l/h
- Maximum pressure: 1.0 m H2O
- Acoustical noise: 25.0 dB(A)
- DC 12V, 0.27A
Package contents
- Fractal Design Kelvin S24 pre-assembled Water Cooling Unit
- 2 Fractal Design Dynamic GP-12 PWM controlled fans
- Intel 775,1150,1155,1156,1366 mounting hardware (including back plate)
- Intel 2011,2011-v3 mounting hardware
- AMD AM2,AM2+,AM3,AM3+,FM1,FM2,FM2+ mounting hardware
- PWM splitter cable
- Low speed cable for pump (9V)
- Fractal Design Zeroâ„¢ Thermal Paste, 1g Syringe
- Long and short radiator mounting screws
- User manual
Additional Information:
- Product number:Kelvin S24 FD-WCU-KELVIN-S24-BK
- EAN Code:7350041082569
- UPC code: 817301012560
