USB Type-C to HDMI Adapter

GUC3CHD

USB Type-C to HDMI Adapter

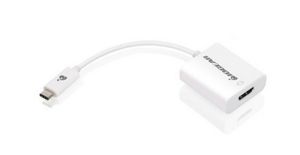

IOGEAR's new USB Type-C to HDMI adapter is the ideal hardware solution to convert a USB Type-C connection to a HDMI video output. This gives you the ability to connect your USB Type-C based device like the Apple® MacBook®, Google® Chromebook Pixel™ and the Nokia™ N1 Tablet to any HDMI based display, projector or HDTV.

USB Type-C - The Next Break Through in Connectivity

USB Type-C is the latest advancement in the consumer electronics industry for device connectivity. Supporting a universal connectivity standard, USB Type-C unites all of your core functions into one powerful port. Thanks to its versatile design, compact footprint and unparalleled performance, USB Type-C connections are featured on next generation ultra-portable devices like the Apple® MacBook™, Google® Chromebook Pixel™ and Asus® ZenPad tablets.

4K Ultra High Definition (UHD) Video Resolution Support

The GUC3CHD USB Type-C to HDMI adapter supports the HDMI 1.4a standard for UHD (Ultra HD) video playback, with resolutions of up to 3840x2160. The result is the highest level of visual fidelity currently available on the consumer market for HDMI, giving you the ability to display 4K content from your USB Type-C equipped device on the latest UHD televisions, projectors and displays.

High Definition, Multi-Channel Audio Pass Through

The GUC3CHD USB Type-C to HDMI adapter supports multi-channel audio signal pass through, preventing the need to carry an additional audio cable when connecting to an external HDMI display with audio playback support.

Worry-free Connections with USB Type-C

IOGEAR's USB Type-C to HDMI adapter lets you take advantage of the versatility of your USB Type-C port on your portable device. USB Type-C has a reversible connector by design and allows for hassle-free operation by allowing you to simply connect your adapter, meaning that no matter how you plug it in, your adapter will always work.

Easy to use, Plug-N-Play Design

IOGEAR's USB Type-C to HDMI adapter is designed with simplicity in mind. By taking advantage of USB Type-C's compatibility with numerous device standards, including its ability to deliver power to connected devices, our adapter supports Plug-N-Play operation, meaning that there are no cumbersome software/device drivers that need to be installed or external power supply to plug in to operate.

Features

  • Connect your USB Type-C based Notebook, Ultrabook or Tablet to a DVI based display or projector
  • Compatible with the latest USB Type-C based desktops, notebooks and tablets including Apple® MacBook®, Chromebook™ Pixel and the Nokia N1 tablet
  • Supports Video Resolutions of up to 3840x2160
  • Supports HDMI Audio Pass Through
  • Reversible USB Type-C connector ensures proper operation regardless of how the adapter is connected
  • Compliant with DisplayPort Specification 1.2 Alternate Mode
  • USB Bus Powered - No external power adapter necessary
  • Supports Plug-N-Play; No drivers or software installation necessary
  • USB 3.1 Gen 1 Compliant
  • HDCP Compliant

Specifications:

Distributor Part #
Ingram 1Z4122
DH GUC3CHD
Synnex 4299492
SKU ECCN
GUC3CHD EAR99
FunctionGUC3CHD
Connectors (Input)USB Type-C (Male; 24-Pin)
Video connections
OutputHDMI Type-A (Female; 19-Pin)
Video ResolutionUp to 3840x2160 @ 30fps
Audio
Audio OutputHDMI Audio Pass Through
Data RateUp to 5.4Gbps (Per Lane)
USB SpecificationUSB 3.1 Gen 1
Power SupplyUSB Bus-Powered
Environment
Humidity10% to 85% RH (No Condensation)
Operation Temperature32°~113°F (0°~ 45°C)
Storage Temperature14°~176°F (-10°~ 80°C)
WarrantyLimited Lifetime
DimensionsGUC3CHD
Unit Dimensions
Height1.5" (3.8cm)
Depth0.625" (1.6cm)
Length7.125" (18.1cm)
Inner Pack
Width4.375" (11.1cm)
Height3.625" (9.2cm)
Depth10.75" (27.3cm)
Inner Pack Qty.12
Unit Package Dimensions
Width4" (10.2cm)
Height10.5" (26.7cm)
Depth0.625" (1.6cm)
Master Carton
Width9.5" (24.1cm)
Height8" (20.3cm)
Depth11.5" (29.2cm)
Master Carton Qty.48
Weight
Master Carton Wt.4.7lb (2.14kg)
Inner Pack Wt.1.0lb (0.46kg)
Unit Pack Wt.0.05lb (0.02kg)
Unit Wt.0.05lb (0.02kg)

Requirements

  • Input
    • 1 x USB Type-C Source
  • Output
    • 1 x Projector, Display or HDTV with HDMI Port
