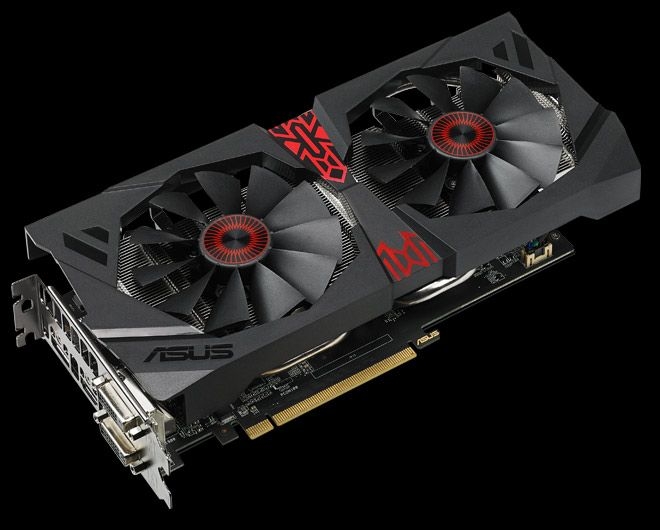

ASUS STRIX R9 380 gaming graphics cards packed with exclusive ASUS technologies, including DirectCU II with Dual Wing-Blade 0dB Fan Design for maximum air flow with 20% cooler and 3X quieter performance. This card features exclusive ASUS AUTO-EXTREME Technology with Super Alloy Power II for premium quality and best reliability. It also has GPU Tweak II with Xsplit Gamecaster, provides intuitive performance tweaking and lets you stream your gameplay instantly.
ULTIMATE PERFORMANCE

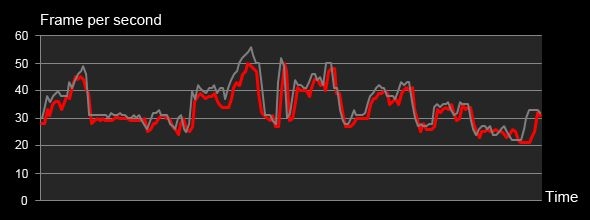

The Witcher 3â„¢
Resolution: 1920*1080
Setting: High
STRIX R9 380
Reference R9 380
Metro Last Lightâ„¢
Resolution: 1920*1080
STRIX R9 380
Reference R9 380
Game Cool

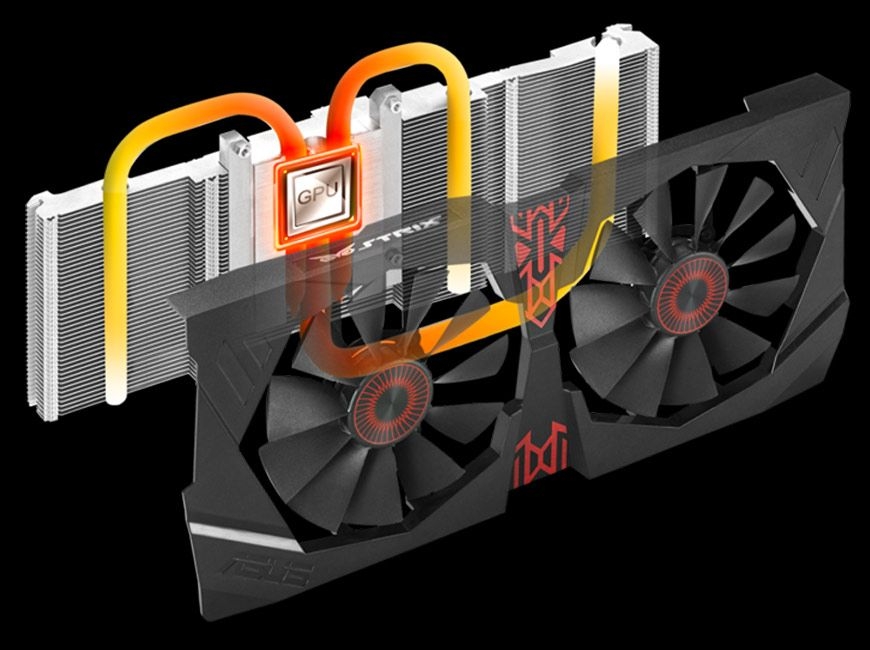

DirectCU II with 10mm Heatpipe
20% Cooler and 3X Quieter Performance
Exclusive DirectCU II cooling technology outperforms reference designs with an exclusive 10mm heatpipe that transports 40% more heat away from the GPU — a first for the industry! The design also includes 1.5X-larger heat-dissipation: this means performance that's 20% cooler three-times (3X) quieter than reference for ultra-stable hardcore gaming with very low noise.
Play Silent

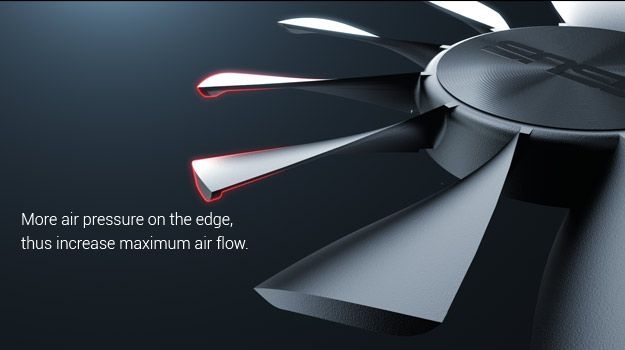

Dual Wing-blade 0dB Fan Design
Max Air Flow with 105% More Air Pressure
DirectCU II features dual 0dB fans engineered with a patented, new wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games like League of Legends® and StarCraft® in complete silence — because the fan stops completely when the GPU temperature remains below a set level*.
PREMIUM QUALITY AND BEST RELIABILITY
AUTO-EXTREME Technology
All ASUS graphics cards are now produced using AUTO-EXTREME Technology, an industry-first, 100% automated production process that incorporates premium materials to set a new standard of quality. AUTO-EXTREME Technology ensures consistent graphics card quality as well as improved performance and longevity. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.

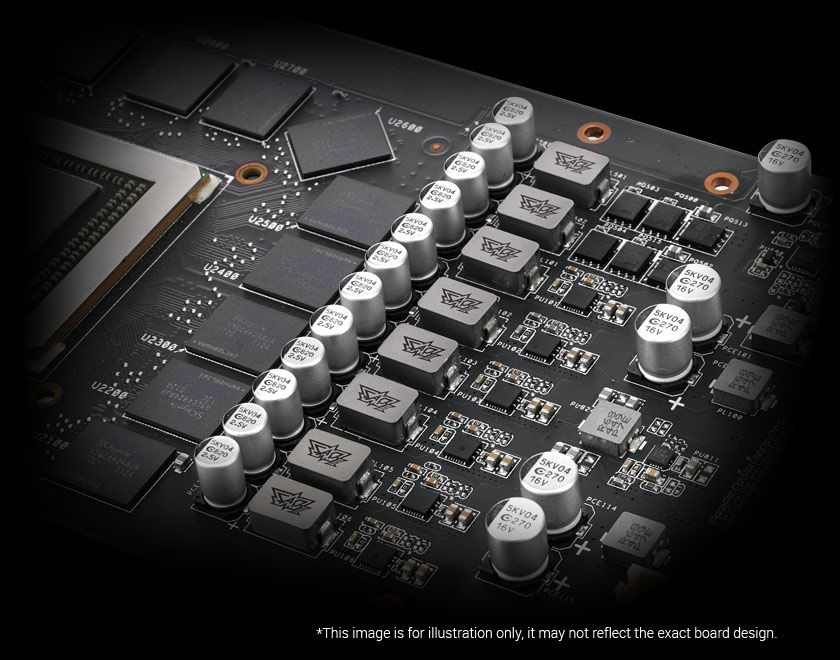

8-phase Super Alloy Power II
ASUS engineers have integrated premium components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss, provide 2X reduced component buzzing while under full load, and achieve thermal levels that are approximately 50% cooler than previous designs.
Game Your Way

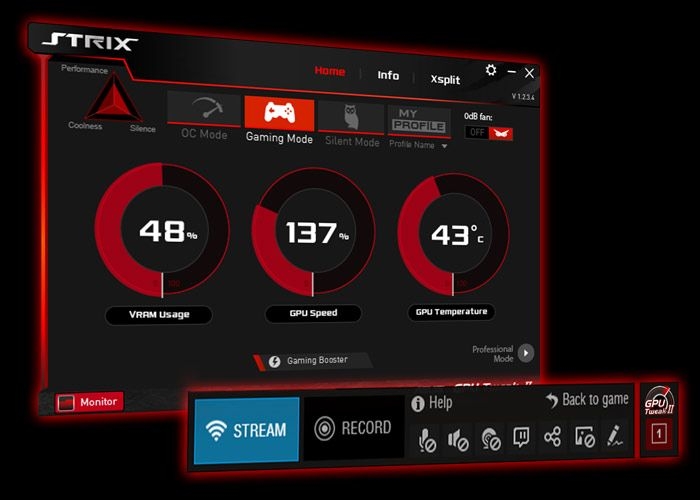

GPU Tweak II with XSplit Gamecaster
Tweak Till Your Heart's Content
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically. XSplit Gamecaster lets you easily stream or record your gameplay right from a convenient, in-game overlay.

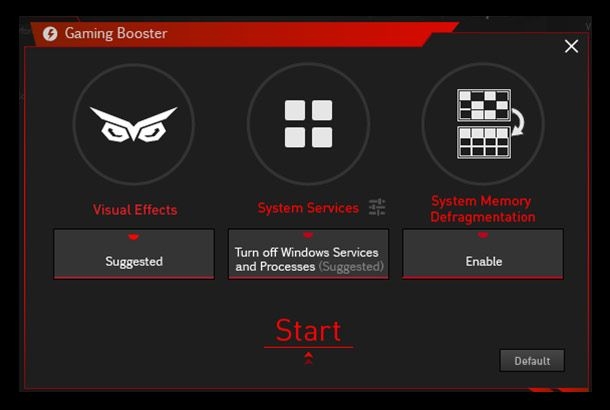

Gaming Booster
One-click Performance Up
Visual effects:
Boost your performance by turning off windows visual effects.
System Services:
Automatically or manually turn off windows services or process.
Memory Defragmentation:
Re-arrange & free your system memory without closing any processes.
Specifications:
- Graphics Engine
AMD Radeon R9 380
- Bus Standard
PCI Express 3.0
- OpenGL
OpenGL®4.4
- Video Memory
GDDR5 4GB
- Engine Clock
1010 MHz (OC Mode)
990 MHz (Gaming Mode)
- Memory Interface
256-bit
- Resolution
Digital Max Resolution:2560x1600
- Interface
DVI Output : Yes x 1 (Native) (DVI-I), Yes x 1 (Native) (DVI-D)
HDMI Output : Yes x 1 (Native)
Display Port : Yes x 1 (Native) (Regular DP)
HDCP Support : Yes
- Accessories
1 x STRIX Laser Sticker
- Software
ASUS GPU Tweak II & Driver
- Dimensions
10.67 " x 5.47 " x 1.65 " Inch
27.1 x 13.9 x4.2 Centimeter
- Note
To have the best cooling performance, ASUS STRIX-R9380-DC2OC-4GD5-GAMING extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
