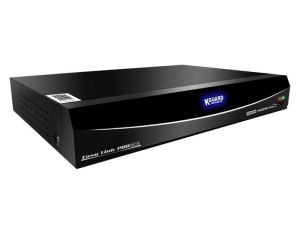

KGuard EL822 EL822 8 Channel Cloud DVR with QR Code Setup (Without HDD) - H.264 Compression Latest Recording Technology, 960H Recording Resolution Quality Is Better Than D1, Smart QR Code

No Longer Available

Part Number:

402405

(?) Brand:

KGuard

Manuf No:

EL822

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Date Added:

25/11/2015

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

EL822, KGEL822, KG-EL822

KGUARD EL822 8 Channel Cloud DVR with QR Code Setup (Without HDD)

KGUARD EL822 8 Channel Cloud DVR
QR Code Setup (Without HDD)
H.264 compression
960H recording resolution
Full HD output with 1080P display
Smart QR code
Support cloud service, Dropbox and Google Drive

Details

Easy Link Pro Series DVR

The most important function of Easy Link Pro Series is to let users easily start remote view when he or she is away from home or company. Just plug network cable into DVR without any network setup. Scan for the first time to download the free app, second time to connect with the DVR, and users could enjoy live video without any limitations.

The product also includes 960H resolution, cloud service, and push notification. Customers can use the product to secure their home and business easily.

Features

H.264 compression latest recording technology
960H recording resolution quality is better than D1
Full HD output with 1080P display standard for connection to HDTV
Smart QR code for quick app download and easy remote mobile access setup
Support cloud service, Dropbox and Google Drive, to store and share your important data
Push notification, live view, playback, and event alarm without missing any important information
Support one high-speed SATA hard disk (up to 4TB) for long-term recording
Free "kview Series" allows remote monitoring on your smartphone and tablet
Multi-lingual support- English, Chinese, Spanish, German, French, Swedish, Danish, Italian, Polish, Czech

Specifications:

Model No.: EL822
No. of Channel: 8 Channels
Cloud:
- Cloud Storage: Yes
- Storage Mode: Schedule / Motion Detection
Video:
- Video Format: NTSC / PAL
- Video Input: 8 BNC Inputs
- Video Output: 1 VGA, 1 BNC, 1 HDMI Outputs
- Video Output Resolution: VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p
Audio:
- Audio Input: 2 RCA Inputs
- Audio Output: 1 RCA Output
Recording:
- Video Compression: H.264
- Recording Frame Rate D1 NTSC: 240fps@CIF (360Ã—240), 240fps@HD1 (720x240), 240fps@D1 (720x480)
- PAL: 200fps@CIF (360Ã—288), 200fps@HD1 (720x288), 200fps@D1 (720x576)
- 960H NTSC: 240fps@WCIF (480Ã—240), 88fps@WHD1 (960Ã—240), 88fps@WD1 (960Ã—480)
- PAL: 200fps@WCIF (480Ã—288), 72fps@WHD1 (960Ã—288), 72fps@WD1 (960Ã—576)
- Recording Mode: Always / Manual / Motion Detection / Schedule
- HDD Interface: 1 SATA
- HDD Support: Up to 4TB
Network:
- Plug & Play: Yes
- Network Interface: RJ45, 10M/100M
- Network Type: DHCP, PPPoE, Static IP
Playback:
- Local Playback: Max. 4 Channels Simultaneously
- Playback Search: Date & Time / Event List / Time Bar
- Playback Mode: Play, Fast Forward, Fast Rewind, Slow Motion, Zoom
General:
- PTZ Control: RS485 Built-In, supports PELCO-P & PELCO-D
- Sensor & Alarm I/O Port: No
- IR Extender Port: No
- Backup Method: HDD, USB, Network
- Power Supply: 12V/2A
- Operating Temperature (W/O HDD): -10~50Â°C / 14~122Â°F
- Storage Temperature: -20~70Â°C / -4~158Â°F
- Dimension (LxWxH): 250 x 230 x 45mm
Package Contents:
- EL822 DVR
- Power Adapter
- Remote Control
- USB Mouse
- DVR Manual CD
- DVR Quick Installation Guide
- HDMI Cable
- Ethernet Cable

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
