Dell P2314T 23" Touch Monitor

A boldly reimagined touch experience.

Superb picture quality with natural and intuitive touch, myriad connectivity options and guarantees to back them up.

Engaging touch experience: Use both hands and the responsive 10-point touch capability to quickly and smoothly navigate across the edge-to-edge glass of your P2314T. The ergonomic stand offers optimal application and game control, as well as viewing comfort.

Outstanding connectivity: VGA, USB, DP and HDMI ports plus MHL connectivity allows direct display of smartphone/tablet content on the touch monitor while charging your mobile device at the same time.

Peace of mind: Your P2314T is backed by Dell's zero bright dot pixel policy with Premium Panel Guarantee1 and 3-Year Advanced Exchange Service2 for fast problem diagnoses and product replacement.

Overview

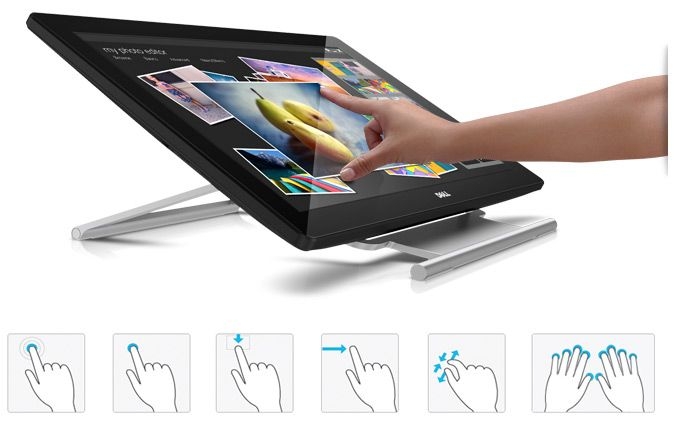

Engaging touch experience

Work smart and keep your content at your fingertips with your DellTM  touch monitor.

Enjoy two-handed control with an enhanced touch experience that recognizes 10 touch-points at once, enabling fast, efficient application and game control across the smooth, edge-to-edge glass.

Screen quality comes to life with the amazing clarity and pin-sharp details of Full HD 1920 x 1080 resolution; the excellent picture quality, with deep blacks and bright whites, from an 8 milion:1 dynamic contrast ratio; clean, fluid motion from a fast 8ms (gray-to-gray) response time; and up to 270 cd/m2 brightness.

Boost collaboration and usability with the ultra-wide 178°/178° viewing angle while gaining optimal application and game control as well as viewing comfort with the adjustable stand.

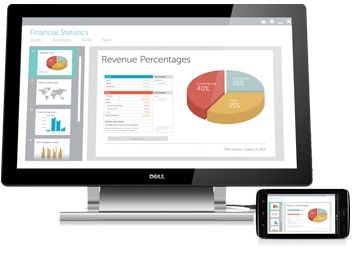

Seamless connectivity

Transform your smartphone and tablet devices into glorious, widescreen color while charging them at the same time through the MHL port 3 when you display your smartphone/tablet content directly on the P2314T touch monitor. Plus, the integrated VGA, USB, DP and HDMI ports enable efficient connectivity to a whole range of peripheral devices.

VESA compatibility

Explore optional VESA-compatible mounting choices, including the Dell Single Monitor Arm (MSA14) or a wall-mounting kit (both options sold separately), for enhanced viewing flexibility.

Great for home and office

Ideal for work and play, your P2314T is designed for entertainment and browsing the internet on your XPS system at home, or for multimedia applications and team projects at the office on such Dell systems as Latitude or OptiPlex as well as handheld mobile devices.

For instance, connect your smartphone or tablet to the monitor through the MHL port so the rest of your workgroup can gather together to see the latest app you've created on a big 23-inch screen with an ultra-wide viewing angle.

Reliable and efficient

If you need a widescreen touch monitor that is designed to last, the Dell 23 Monitor | P2314T offers you a 23-inch viewable image with efficient performance and long-term reliability.

3-year Limited Hardware Warranty 4 and 3-year Advanced Exchange5 Service2
Premium Panel Guarantee 1

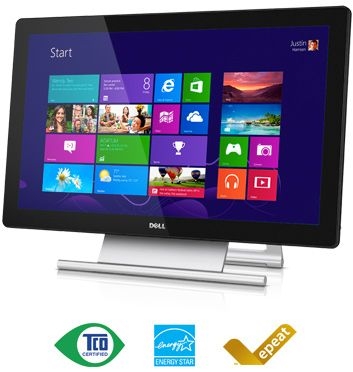

Meets the latest regulatory and environmental standards, including ENERGY STAR® , EPEAT®  Gold and TCO Certified Displays

Energy-conscious design

With 17W normal-operation power consumption (typical) and less than 0.5W in active-off mode, the P2314T can help keep energy costs down. In addition, the PowerNap feature enables you to either dim the monitor to the minimum brightness level or put it into sleep mode when it is not in use.

Complete your Dell Monitor experience

Your Dell 23 Monitor | P2314T is just the start. Look for these great additions when finalizing your purchase.

Accessories

You can maximize the versatility and performance of your P2314T with extras like a single monitor arm and a wireless keyboard and mouse combo. You’ll find just what you need at Dell.com.

Warranty

Enjoy peace of mind with Dell’s Limited Hardware Warranty4 and Premier Panel Guarantee1.

Limited Hardware Warranty:

Because it is backed by a 3-Year Limited Hardware Warranty4 and Advanced Exchange Service2, you can purchase the Dell 23 Monitor | P2314T with confidence.

Premium Panel Guarantee:

The Dell Premium Panel Guarantee1 allows free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found.

Specifications:

Dell 23 Touch Monitor - P2314T

DISPLAY

Diagonally Viewable Size:
58.4 cm (23")

Horizontal: 509.18 mm (20.05")
Vertical: 286.42 mm (11.28")

Maximum Resolution:
1920 x 1080 at 60 Hz

Aspect Ratio:
16:9

Pixel Pitch:
0.265 mm

Brightness:
270 cd/m2 (typical)

Color Support:
Color Gamut (typical): 83%(CIE 1976)
Color Depth: 16.7 million colors

Contrast Ratio:
1,000:1 (typical)
8 million:1 (Dynamic Contrast Ratio)

Max Viewing Angle: (typical)
(178° vertical / 178° horizontal)

Response Time: (typical)
8ms (gray to gray)

Panel Type:
In-plane switching

Panel Backlight:
LED

CONNECTIVITY
Connectors (P2314T):
DisplayPort 1.2
HDMI (MHL)
VGA
USB upstream port (for touch enablement)
USB 2.0 / 3.0 downstream port
Audio line-out

TOUCH SPECIFICATIONS
Touch technology: Projected capacitive system
Sensor stack thickness: 0.5 mm
Cover glass thickness: 1.1 mm
Touch method: Fingers and thin gloves
Touch point: 10 touch-points
Response time: <10 ms
Supporting OS: Windows 8 Certified

FEATURES

Tilt
up to 60°

Security:
Security lock slot

Flat Panel Mount Interface:
VESA Mount 100mm x 100mm (Wall Mount sold seperately)

ELECTRICAL POWER

AC input voltage/frequency/Current (typical): 100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.5 A (max)

Power consumption (normal operation, typical): 17 W

Power consumption (active-off mode): <0.5 W

DIMENSIONS (WITH STAND)

Height (extended ~ compressed): 412.70 mm ~ 216.40 mm (16.25" ~ 8.52")
Width: 569.90 mm (22.44")
Depth (extended ~ compressed): 421.30 mm ~ 80.90 mm (16.59" ~ 3.19")

DIMENSIONS (WITHOUT STAND)

Height (extended): 348.10 mm (13.70")
Width: 569.90 mm (22.44")
Depth: 42.20 mm (1.66")

WEIGHT

Weight with packaging: 8.98 kg (19.76 lbs)
Weight without packaging: 7.10 kg (15.62 lbs)
Weight of monitor only (without stand): 4.82 kg (10.60 lbs)

Environmental and Regulatory

COMPLIANCE AND STANDARDS
ENERGY STAR®
EPEAT®  Gold
TCO Certified Display
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Energy Star

SERVICE AND WARRANTY
3 years Limited Hardware Warranty
Advanced Exchange Service

WHAT'S IN THE BOX

Monitor with stand
Power cable
Power adapter
HDMI cable
USB 3.0 cable( enables touch screen function on the monitor)
Screen cleaning cloth
Velcro strap
Quick start guide
Drivers and documentation media
Product and safety information guide
