Overview

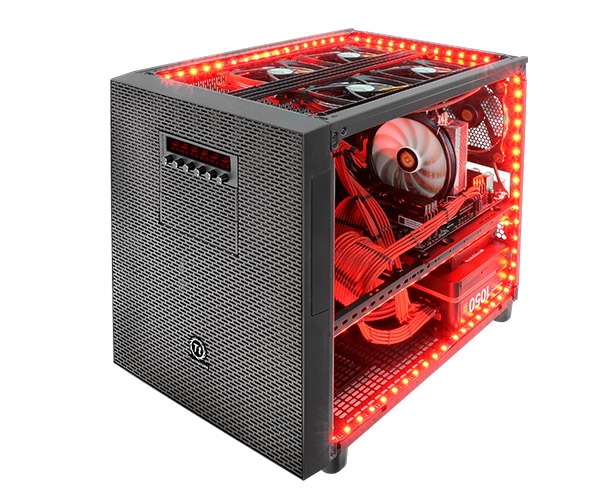

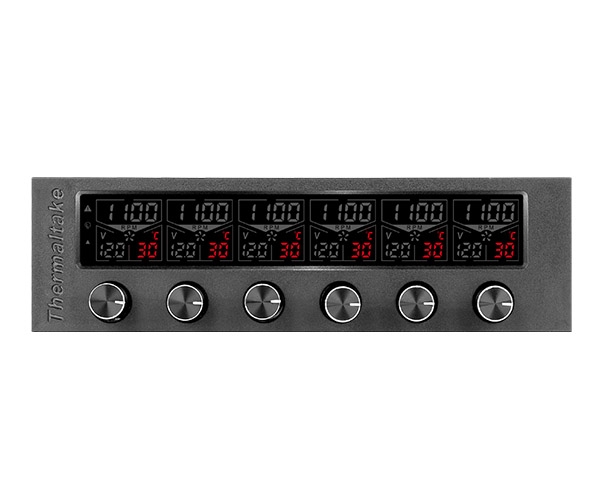

Thermaltake has launched the new multi-fan controller Commander F6 RGB. The
wide LCD screens user-friendly interface displays temperature (C/F), RPM, and voltage for each channel. Additionally, with
six separate channels and gorgeous 16 different illuminating display colors, you
can personalize your visual environment and easily access all fan functions at
the same time. All you need is an empty 5.25 drive bay and youre ready to
go.

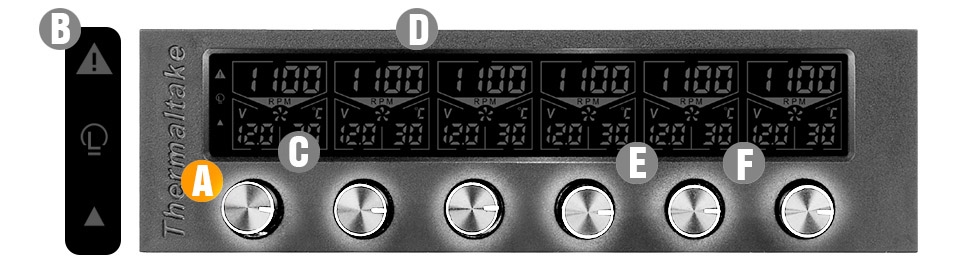

- A. Control Knob
- B. Alarm mode, LED mode, Start boost mode
- C. Voltage
- D. RPM
- E. Fan speed rotation
- F. Temeprature

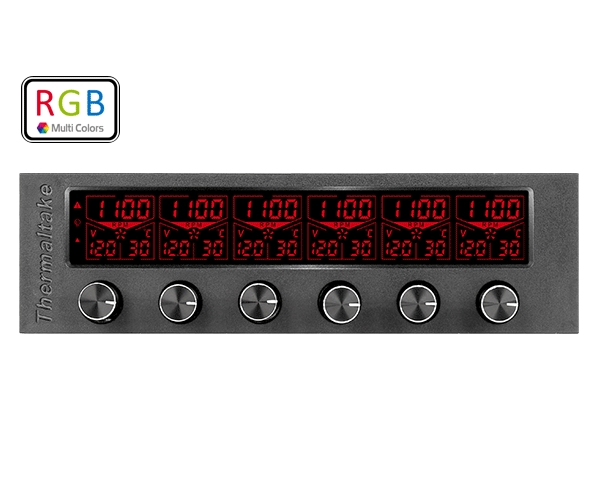

16 RGB Multi Colors

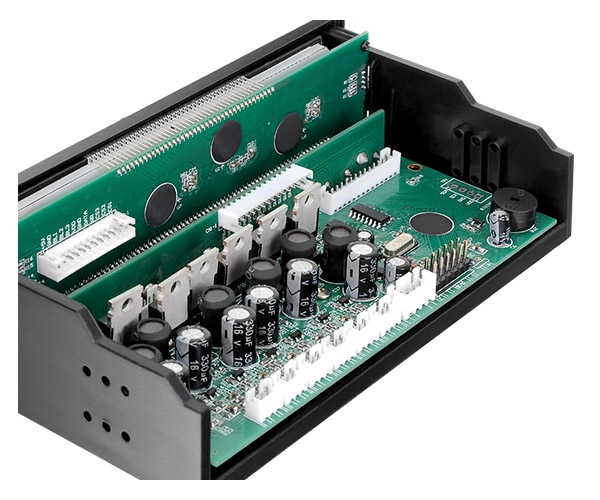

Choose from 16 screen display colors to add aesthetics to go. With its sturdy
frame and reliable inner system, Commander F6 RGB is an ideal device to monitor
the temperature inside the chassis and control the fan speed.
*Please be aware of your minimal fan operation voltage.

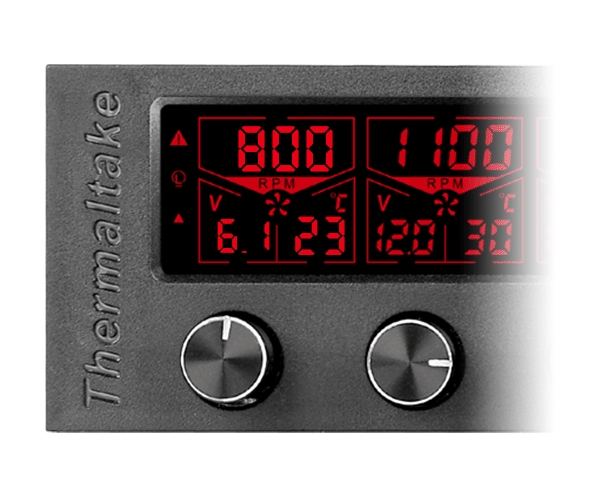

Adjustable Output Voltage (0V-12V)
Unlike other fan controllers on the market, the Commander F6 RGB's control
knobs allows you to adjust the voltage with precision (voltage range: 0.1V).
Thermal Monitoring
The Commander F6 RGB helps you keep an eye on temperature, giving you details
down to the selected fan speed (RPM). Choose Celsius or Fahrenheit according to
your preferences. The embedded temperature warning alarm can also be set, so
that you can stay in control.
*Six independent sensors can monitor the temperature anywhere inside the
chassis.
Comprehensive Cooling Performance and Noise Control
Featuring six 30W separate fan control channels, the Commander F6 RGB lets
you adjust the speed of any type of fan, giving you precise cooling control with
minimal noise.
Note: Riing fans are sold separately.
Warning Alarm and Short Circuit Protection
The built-in alarm function warns you if any component gets overheated or the
fan fails.
Lumi Color LED Strip Compatible
With two additional 3-pin cables, you can easily connect Thermaltake Lumi
color LED strips or other single color LED strips* to the Commander F6 RGB fan
controller. You can also adjust the brightness of Lumi color strips according to

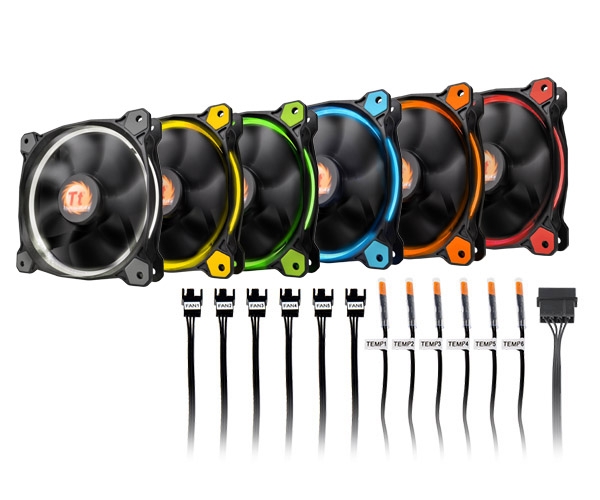

your preferences. The Commander F6 RGB comes with all necessary cables to
connect easily to up to six fans with a standard 3-pin or PWM connector.
*Lumi color LED strips are not included
Specifications
|
P/N |
AC-024-BN1NAN-A1 |
|
Weight |
345g |
|
Dimension |
90 x 150 x 43mm |
|
Form
Factor |
5.25 Driver
Bay |
|
Material |
Plastic |
|
Fan |
Channels :
6 |
|
Channel Wattage :
30W |
|
Speed Range : 0 9990
RPM |
|
Voltage Range : 0V
12V |
|
Temperature |
Sensor :
6 |
|
Temperature Range : 0 -
90 |
|
Display Unit :
Fahrenheit (F) / Celsius (C) |
|
Connector |
Fan : 3-Pin or
4-Pin |
|
Power : 4-Pin
Molex |
|
Accessories |
M3 Screws x
4 |
|
Sensor Cables x
6 |
|
LED to 3-Pin Cable x
2 |
