USB 3.1 UPD PANEL
Overview
Stay charged! World's first dual USB 3.1 Gen 2 Type-C front panel, with up to 100W charging

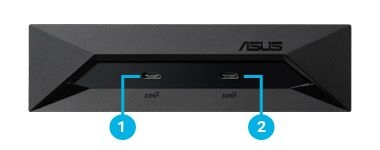

- Dual 10Gbit/s reversible USB 3.1 Gen 2 Type-C ports for your PC’s front panel
- USB Power Delivery technology for up to 100W USB charging
- Flexible installation, switching between front 5.25-inch front panel and rear PC expansion card

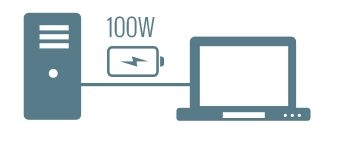

Powerful charging, up to 100W!

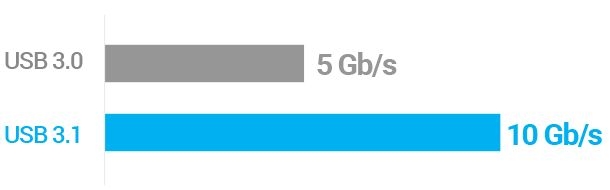

Throw out your old power adapters and upgrade to simplest, fastest and most-efficient USB charging — the USB 3.1 UPD Panel! You get two reversible USB 3.1 Gen 2 Type-C ports for ultra-fast 10Gbit/s data transfers, and up to 100W* charging power via the first port. It's the fast and future-proof way to connect, charge and eliminate the messiness of multiple cables — the perfect combination!
Ensure the device you wish to charge supports the Power Delivery 2.0 standard.
USB 3.1 Type-C port with USB Power Delivery support - USB 3.1 Type-C port
Instant USB 3.1 Type-C Experience
The USB 3.1 UPD Panel slides easily into any standard 5.25-inch drive bay, so it takes just moments to gain the benefits of USB 3.1 Gen 2 Type-C. Just follow these three simple steps:
- Slide the USB 3.1 UPD Panel into your preferred 5.25-inch drive bay and tighten the retaining screws.
- Connect the included SATA Express cable to the SATA Express port on your PC's motherboard.
- Connect two Molex plugs to the USB 3.1 UPD Panel. That's it – you're done!
USB 3.1 UPD Panel's ingenious design means that if you want USB 3.1 Gen 2 Type-C charging and 10Gbit/s connectivity at the back of your PC, you can! Just open it up and inside is a DIY expansion card, just waiting to be slotted in — like this:
Open USB 3.1 UPD Panel and remove the printed-circuit board (PCB) from the housing.
Attach the supplied bracket to the removed PCB, transforming it into an expansion card.
Slide the expansion card into a spare slot and your PC now has two USB 3.1 Gen 2 Type-C ports at the back panel!
Specifications
- Accessories
1 x SATA Express cable
1 x rear bracket
1 x supporting CD
- Dimensions
145(H) x 140(W) x 42(D) mm for 5.25" bays
- Features
- Dual 10Gb/s USB 3.1 Type C ports for front panel
- Up to 100W USB charging support
- Easy installation for both front 5.25" bays and onboard PCIE slots
- Compatible Model
Support Z170 Series models
- Maximum Power Output
UPD type-C port:
20V, 5A
Normal type-C port:
5V, 3A
- I/O Ports
Input:
1 x SATA Express
2 x Molex power plug(12V/5V)
Output:
2 x USB 3.1 Type-C ports, 1 supports USB Power Delivery (max. 5A, 20V, 100W*)
- Note
*Ensure the device you wish to charge supports the Power Delivery 2.0 standard.
