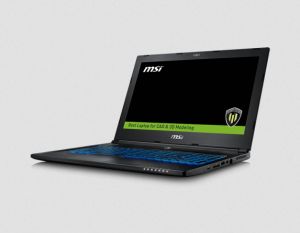

WS60 6QJ

• Windows 10 Pro
• 6th Gen. Intel® Coreâ„¢ i7 processor
• Intel® Xeon® Mobile processor
• DDR4-2133 Memory up to 32GB w/ Support for ECC (Xeon only)
• NVIDIA® Quadro®M2000M Professional Graphics Card 4GB GDDR5
• 15.6“ FHD (1920 x 1080), Wide-view, Anti-Glare
• Pre-calibrated panel through True Color display technology
• Exclusive Cooler Boost 3 Technology: Higher efficiency dual cooling system.
• Shortcut Manager to simplify the long command into one key with a set of optimized shortcuts that reflect to your professional experience
• Thunderbolt 3 supporting 40Gbps ultra speed data transfer rate, dual 4K monitor output, and portable charging power up to 5V/3A (Optional)
• Supports up to 3 external displays

Overview

Workstation

WS60 6QJ

Create today, build tomorrow.

LATEST 6^TH GENERATION INTEL CORE i7 PROCESSORS AND XEON PROCESSORS

The new 6th generation Intel processors consume less power but deliver much improved performance than previous generation processors. A 20% performance increase in average can be discovered on the new Intel Core i7 CPU.

MSI mobile workstations powered by the latest 6th generation Intel Core i7 CPU and the new Xeon E3-1505M processor display unmatched performance capabilities.

UNMATCHED PERFORMANCE

Powered by the NVIDIA Quadro M-series, provides an unmatched graphics power and performance to get the job done faster than ever.

MADE TO MULTI-TASK

MSI’s exclusive Matrix Display technology supports up to 3 external monitors to go from a portable notebook into the ultimate multi-tasking workstation. Output you work to a 4K display for the best viewing experience and stunning details.

CRAZY FAST NVMe PCI-E Gen3 X4 SSD

Get the most advanced storage technology before everyone else with the latest PCI-E Gen 3.0 x4 bandwidth utilizing NVMe technology on single M.2 SSD. Harness the full performance potential of the Gen 3.0 SSD through the optimization of the hardware and software outputting extreme read speeds up to 2200MB/s, 5x faster than SATA3 SSD's

ISV Certified Mobile Workstation

MSI workstations are ISV Certified. Officially recognized by major ISVs such as AutoDesk, Dassault Systems, PTC, Adobe, and more, this certification ensures your most critical applications will run reliably on the MSI Mobile Workstation, providing optimal performance and high quality user experience.

SuperRAID 4 – Capacity and Speed in a Matter of Seconds

MSI SuperRAID4 technology is the market’s most advanced and fastest storage solution. Consisting of two NVMe PCI-E Gen.3x4 SSDs in RAID0 setup, this storage solution takes all the bandwidth as well as scalability advantages that are there to fully unleash the potential of SSDs. At a read speed of over 3300MB/s, SuperRAID4 can save a professional’s day when frequent access to large-size data sets is essential. (Optional)

DDR4-2133 - New Memory Benchmark

Get the best possible performance out of your notebook with support of the advanced DDR4-2133 memory, achieving over 2.9GB/s in reading speed and 3.5GB/s in writing. With over 30% faster performance than previous generations DDR3-1600, DDR4-2133 is the new laptop standard to take your improved working efficiency to the next level.

THUNDERBOLTâ„¢ 3

The latest and fastest interface Thunderboltâ„¢ 3, supports up to 40Gbps data rate, supporting dual 4K displays with daisy chain capabilities. Support USB3.1 ultra speed devices, and up to 5V and 3A current output for charging. (Optional)

Data transfer speed up to 40Gbps

Dual 4K LCD output

Charging higher-power devices with 5V @ 3A

Connect 4K

60Hz display with single Thunderboltâ„¢ 3. Enjoy your game with double the sensation.

True Color Technology

MSI True Color Technology guarantees that each panel in a MSI notebook comes with the finest precision in color. After examination and an extensive factory calibration process by the MSI True Color Technology, the panel quality will be more accurate, close to 100% sRGB. Hence, each color is delivered with the highest standard precision in detail, guaranteeing excellent color fidelity for many applications.

MSI has partnered with Portrait Displays, Inc. in developing a level of accuracy for display technology that sets a new standard. Trusting that the displays colors naturally represent the content is MSI’s goal.

TRUE COLOR PROFILE

Vision and sound are the most important two factors. Work or play, you can easily switch to the mode that best suits your eyes. The profile sharing feature permits you to share your True Color settings to other users anywhere.

Specifications

Operating System
Windows 10 Pro

Display
15.6" UHD (3840 x 2160), Wide-View Edition,IPS level panel

Processor
Intel® Xeon® Processor E3-1505M v5 (8M Cache, 2.80 GHz)

Chipset
Intel CM236

Memory
16GB DDR4-2133MHz

Graphics
NVIDIA® Quadro® M2000M Graphics Card / GDDR5 4GB

Storage
256GB Super RAID 4 Solid State Disk (128GB M.2 PCI-E Gen 3 x 4 Solid State Disk x 2) + 1000GB (7200rpm HDD)

Keyboard
Keyboard by Steelseries with full color backlighting

USB 3.1 port
1

USB 3.0 port
2

Card Reader
SD (XC/HC)

Audio
Sound by Dynaudio system

Support 7.1 channel S/PDIF output
ESS SABRE Hi-Fi audio DAC technology

Nahimic Audio Enhancer

Video Output

Mini DisplayPort x 1, HDMI x1,USB Type-C(support DisplayPort x1)

Mic-in/Headphone-out
1/1

LAN
Gigabit Ethernet LAN(10/100/1000 Mbps)

Wireless LAN
Intel Wireless 802.11 a/c

Bluetooth
Bluetooth v4.1

Webcam
FHD webcam with Array MIC

Battery
6-Cell

Power Adapter
150W

Dimension
90 x 266 x 19.9mm

Weight (KG)
1.9Kg (incl. Battery)
