KVR21R15S4/8HA | Kingston 8GB ( 1x8GB ) PC4-2133Mhz ECC Registered DDR4 RAM

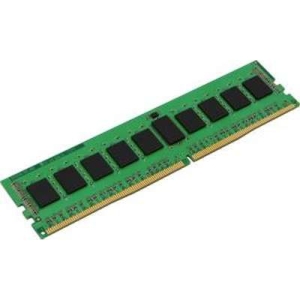

KINGSTON  KVR21R15S4/8HA 8GB 1Rx4 1G x 72-Bit PC4-2133 CL15 Registered w/Parity 288-Pin DIMM

Overview

Value RAM's KVR21R15S4/8HA is a 1G x 72-bit (8GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx4, ECC, memory module, based on eighteen 1G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

• Power Supply: VDD=1.2V (1.14V to 1.26V
• VDDQ = 1.2V (1.14V to 1.26V)
• VPP - 2.5V (2.375V to 2.75V)
• VDDSPD=2.25V to 2.75V
• Functionality and operations comply with the DDR4 SDRAM datasheet
•  16 internal banks
•  Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-2133, PC4-1866, PC4-1600
•  Bi-Directional Differential Data Strobe
•  8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop
• Supports ECC error correction and detection
• On-Die Termination (ODT)
• Temperature sensor with integrated SPD
•  This product is in compliance with the RoHS directive.
•  Per DRAM Addressability is supported
•  Internal Vref DQ level generation is available
• Write CRC is supported at all speed grades
•  CA parity (Command/Address Parity) mode is supported
