Cooler Master Storm Scout2 N2 Black Window Version Mid
Tower
Introduction
CM Storm Scout 2 N2 follows a more round futuristic theme and features
improved steel reinforced carrying handles, bolted to the core structure. It
supports up to 9 fans, including two pre-installed 120mm fans and two optional
120mm fans on the acrylic side panel window. The top console has been upgraded
to USB 3.0 for high power charging and lightning fast file transfers, and can be
hidden and protected from dusty battlefields, friendly fire and melee attacks
behind a slide cover. The 1st HDD cage can now be removed, to support monster
VGAs like the NVIDIA GTX 690 and AMD HD 7990, turning it into a powerful
Battlestation.
Features
| Ergonomic
steel reinforced carrying handles |
| Supports up
to 9 fans, including one pre-installed 120mm red LED fan in the front and two
optional 120mm fans on the acrylic side panel window |
| Top panel LED
switch to disable the LEDs of two separate LED case fans |
| Dual USB 3.0
support for 10x faster file transfer and high current smart phone / tablet
charging (~1A) |
| Supports up
to 3 ODDs (tool-less), 7 HDDs and 2 SSDs for increased expandability |
| Supports all
high-end graphics cards on the market with the 1st HDD cage removed |
| Dust filters
for PSU (slide out) and top pane |

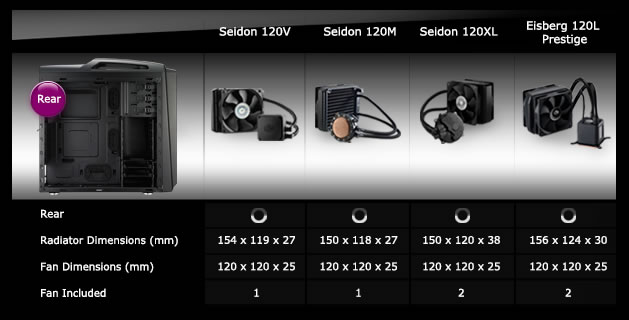

Liquid Cooling Compatibility List
Specifications
|
Model
Number |
|
SGC-2100-KWN2 |
|
|
SGC-2100-GWN2 |
|
|
SGC-2100-WWN2 |
|
Type |
|
Mid
Tower |
|
Dimensions L x W x
H |
|
513 x 230 x 517
mm |
|
|
20.2 x 9.1 x 20.5
in |
|
Motherboard Form
Factor |
|
Micro-ATX,
ATX |
|
Material |
|
Steel, Polymer,
Mesh |
|
Colors |
|
Black
internal |
|
|
KWN2 - Black
external |
|
|
GWN2 - Gunmetal Grey
external |
|
|
WWN2 - Ghost White
external |
|
5.25 Device
Bays |
|
3
external |
|
3.5 Device
Bays |
|
7
internal |
|
2.5 Device
Bays |
|
2 convertible from 1x 3.5"
bay |
|
Front I/O
Panel |
|
USB 3.0
x2 |
|
|
USB 2.0
x2 |
|
|
Audio In & Out
x1 |
|
Rear Expansion
Slots |
|
7 |
|
Fan Cooling
Mounts |
|
Front: 120mm x2, or 140mm
x1 |
|
|
Top: 120mm
x2 |
|
|
Rear: 120mm
x1 |
|
|
Side: 120mm
x2 |
|
|
Bottom: 120mm
x1 |
|
|
HDD Cage: 120mm
x1 |
|
Included Cooling
Devices |
|
Front: 120mm Red LED fan x1,
1200 RPM, 17 dBA |
|
|
Rear: 120mm Black fan x1,
1200 RPM, 17 dBA |
|
Power
Supply |
|
Bottom
Mount |
|
|
Standard ATX
PS2 |
|
Max CPU Cooler
Height |
|
162 mm / 6.4
in |
|
Max GPU/PCI Card
Length |
|
287 mm / 11.3 in with HDD
cage |
|
|
399 mm / 15.7 in without HDD
cage |
|
Special
Features |
|
Carrying
handles |
|
Weight |
|
8.3 kg / 18.3
lb |
|
Packaged
Dimensions |
|
575*280*565mm /
22.6*11.0*22.2 inch |
|
Packaged
Weight |
|
10.49kg / 23.1
lbs |
