Matrox C680 PCIe x16

Performance Meets Flexibility

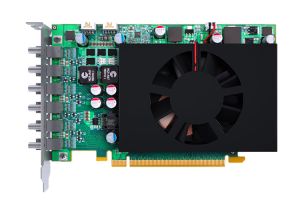

The Matrox C680 is a single-slot, PCIe® x16 graphics card that drives up to six displays or projectors at resolutions up to 4096 x 2160 per output. The versatile, six-monitor video card can power the latest Ultra HD/4K panels as well as enable 12-monitor configurations when combined with a second Matrox C680 board. The board-to-board framelock feature ensures synchronization of all displays to reduce tearing on digital signage and video walls. With its high reliability, outstanding performance, and advanced multi-monitor capabilities, Matrox C680 delivers the best display density for demanding commercial and critical applications including enterprise, industrial, pro A/V, digital signage, security, control rooms and more.

Features

• Drive up to six displays or projectors
• Supports a maximum resolution of 4096 x 2160 per output
• Experience smooth video playback and graphics performance with 2 GB of memory
• Minimize power consumption with an energy efficient board design
• Expand your desktop space with multi-board support to drive up to 12 displays from a single computer
• Framelock two Matrox C680 cards together and synchronize the refresh rate across all monitors to reduce tearing¹
• Simplify cabling by daisy-chaining DisplayPortâ„¢ 1.2 MST-capable displays²
• Customize your setup with the easy-to-use Matrox PowerDeskâ„¢ multi-display configuration and desktop management software
• Configure displays independently from one another or select stretched desktop mode to create as a single ultra-large desktop across multiple displays
• Clone content to show the same information on all displays
• Select any combination of portrait or landscape and set the orientation that works best for you
• Simplify A/V installations with advanced EDID Management
• Prevent loose cabling with secure Mini DisplayPort connectors
• Adjust the number of overlapping pixels with Edge Overlap to create a seamless, unified image on up to six edge blending projectors
• Facilitate enterprise-wide deployments by installing Matrox PowerDesk & drivers across many systems without any user interaction
• Supports Microsoft® DirectX® 12, OpenGL® 4.4, and OpenCLâ„¢ 1.2 to run the latest professional applications
• Protect your investment with Matrox long product life-cycles
• Compatible with Windows® 10 (32/64), Windows 8.1 (32/64), Windows 7 (32/64), Windows Embedded Standard 7 (32/64), Server 2012 R2 (64), Server 2008 R2 (64), Linux® operating system

What’s in the box?

• Matrox C680 graphics card
• Quick start-up guide
• Display drivers and Matrox PowerDesk desktop management software available for download from Matrox website

Accessories (Sold Separately)

• Mini DisplayPort to DisplayPort adapter cable (part # CAB-MDP-DPF)
• Board-to-board framelock cable (part # CAB-FL-F)
• Active Mini DisplayPort to DVI adapter cable (3rd party)
• Active Mini DisplayPort to HDMI adapter cable (3rd party)

¹ Available only under Microsoft Windows operating systems. Requires framelock cable (CAB-FL-F), sold separately.
² Requires DisplayPort 1.2 MST-capable monitor or hubs—the number of displays that can be daisy-chained depends on the resolution, timings and refresh rate of the connected monitors.

 Specifications

¹ Available only under Microsoft Windows operating systems. Requires framelock cable (CAB-FL-F), sold separately.
² Requires DisplayPort 1.2 MST-capable monitor or hubs—the number of displays that can be daisy-chained depends on the resolution, timings and refresh rate of the connected monitors.
