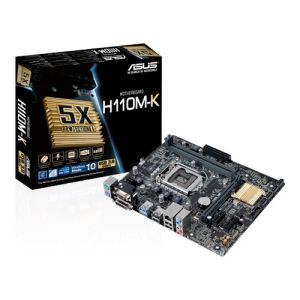

Great-value micro-ATX H110 with 5X Protection II for dependable stability, LED-illuminated audio shielding, and DDR4 memory compatibility

• CPU
  Intel Socket 1151 for 6^thGeneration Core i7/Core i5/Core i3/Pentium/Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0
  * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer towww.asus.comfor CPU support list
• Chipset
  Intel H110
• Memory
  2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer towww.asus.comfor the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  * Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
• Graphic
  Integrated Graphics Processor- Intel HD Graphics support
  Multi-VGA output support : DVI-D/RGB ports
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  2 x PCIe 2.0 x1
• Storage
  Intel H110 chipset :
  4 x SATA 6Gb/s port(s), gray
• LAN
  Realtek RTL8111H, 1 x Gigabit LAN Controller(s)

• Audio
  Realtek ALC887 8-Channel High Definition Audio CODEC *¹
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel H110 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
  Intel H110 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 6 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features:
  - GPU Boost
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - USB 3.0 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution:
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows 10 , 64bit
  Windows 8.1 , 64bit
  Windows 7 , 32bit/64bit *²
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.0 (blue) Type-A
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  mATX Form Factor
  8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
• Note
  *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Please refer to ASUS website and download Windows 7 installation guide and ASUS EZ installer to install Windows 7.
