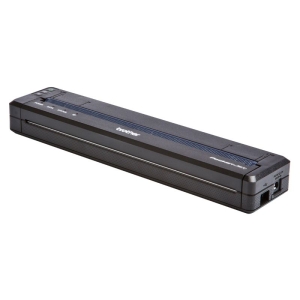

Brother PJ-773 Monochrome Mobile Thermal Printer (A4) w. Wireless Network
  • 8PPM Mono, 32MB Memory, Direct Thermal, Wireless 802.11b/g/n, High-Speed USB2.0, AC Adaptor, Black

IMG 1 of 1
No Longer Available
Part Number:
407478
(?) Brand:
Brother Web Site
Manuf No:
N8AJ00043
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
2/5/2016
Details Files Finance Images & Video
All stock codes associated to this product
N8AJ00043, BP773BP, PRB-PJ-773PACK

Brother PJ-773 PJ-773-Bundle-Pack AC Adpator A4 Mobile Printer



Overview

Printing directly from mobile devices via Wi-Fi, the Brother PJ-773 A4 portable thermal printer provides your mobile workers with the tools to implement timely service and continuous workflow for greater efficiency and customer satisfaction. Compatible with various operating systems (including iOS via AirPrint), its advanced thermal technology and lightweight and compact size takes up little space in your mobile toolkit. With an optional 1.2m drop protection (IP54 rated) roll printer case providing the ability to print in extreme and rugged environments while offering high quality print capabilities, the PJ-773 is a breath of fresh air.

Features:

  • A4 size thermal printing for a variety of different applications
  • Small & light weight can carry with you anywhere
  • USB 2.0 and Wi-Fi Interfaces
  • Direct thermal technology no ribbons, ink or toner required
  • Software Development Kit (SDK) - iOS/Android/Windows(b-Pac) for seamless integration
  • Durable and rugged 1.2m drop protection (IP54 rated) with optional roll printer case
  • High quality printing - 300 dpi print resolution
  • Fast print speed - 8ppm print speed
  • Resistant to extreme environments - Resistance from -10C to 50C temperatures
  • Inbox standard rechargeable Li-ion Battery, AC adapter and A4 thermal paper
  • Paper options - Direct thermal paper available in A4 cut sheets or perforated roll

Specifications

GENERAL

Model

:

PJ-773-Bundle-Pack

Engine

:

Direct thermal

Functions

:

A4 Mobile Printer with USB and Wireless interface - 300dpi

Standard Memory

:

32MB

Drop Protection

:

70cm (unit only), 1.2m (with PA-RC-001)

Keyboard

:

Power, Feed and Wi-Fi Button

Display Type

:

LED Power Indicator: Green, Orange, Red

:

LED DATA Indicator: Green, Orange, Red

:

LED ERROR Indicator: Green, Orange, Red

:

LED Wi-Fi Indicator: Blue

PRINTER

Emulation

:

1.Raster

:

2.ESC/P

:

3.PTouch template

Print Speed

:

8PPM

Printer Resolution

:

300 x 300 dpi

Printer Driver Functions

:

Page size: A5, A4, Letter, Legal, Infinite

:

Custom size: min. 105 mm x 25.4 mm ~ max. 216 mm x 5.49 m

Max Print Area

:

Configure with printer driver (min. 105 mm x 25.4 mm - max. 216 mm x 5.49 m)

Standard Paper Capacity

:

A4 (100 sheet / pack)

:

A4 width x 30M Roll Paper ( 6 pcs / box)

Media Size General

:

210mm x 297mm (A4), 210mm(W) Roll

SOFTWARE

Software Development Kit

:

Windows Mobile 6.x Professional / Classic / Standard

:

Windows Mobile 5.0 for Pocket PC Phone Edition /for Pocket PC

:

Windows CE 5.0 / 6.0

:

Windows XP /Vista /7 /8 /8.1

:

Android 2.2 or later

:

IOS 5.0 or later

Template Transfer to Machine

:

Yes

CONNECTIVITY

Interface

:

USB 2.0 Full Speed

:

IEEE802.11b/g/n (Infrastructure Mode)

:

IEEE802.11b/g/n (Adhoc Mode)

:

IEEE802.11g/n (Wireless direct)

Wi-Fi Direct

:

Yes

Operating System

:

Windows Vista / 7 / 8/ 8.1 / 10

:

Windows Server 2008 / 2008 R2, Windows Server 2012 / 2012 R2

:

Mac OSX 10.8 to 10.10

:

Linux deb, rpm

Citrix

:

Xen App/ Xen Desktop/ Citrix Ready Certification

MOBILE / WEB PRINTING

Mobile Operating System

:

Windows Mobile: WM5 / WM6

:

Android 2.2 or later via App

:

IOS 4.3 or later via App or Airprint

AirPrint

:

Yes

Google Cloud Print

:

Yes (Ver.2.0)(Chrome OS/Android2.1 or later/iOS 3.0 or later)

Mopria

:

Yes

NETWORKING

Wireless Interface

:

IEEE802.11b/g/n (Infrastructure Mode)

:

IEEE802.11b/g/n (Adhoc Mode)

:

IEEE802.11g/n (Wireless direct)

Wireless Security

:

Adhoc:

:

Open System / WEP (64/128 bit) / AES

:

Infrustructure:

:

Open System (None/WEP), Public Key Authentication (WEP), WPA-PSK/WPA2-PSK (TKIP/AES)

:

LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)

:

WiFi Direct:

:

WPA2-PSK (AES)

Network Management

:

Windows: BRAdmin Light, Web Base Management, BRAdmin Professional

:

Mac: BRAdmin Light, Web Base Management

:

Linux: Web Base Management

POWER SUPPLY

AC Adaptor

:

Included (AC Adapter 15 V/ Charger (PA-AD-600))

Battery Life

:

Li-ion battery: approximately 600 sheets (printing duty 1.9% and using fully charged new Li-ion battery via USB @ 23deg C)

:

Approx 300 charge/discharge cycles

:

Charge time approx 3 hours

OPTIONS

Optional Power

:

Rechargeable Li-ion Battery 10.8V 1750mAh (PA-BT-002)

:

AC Adapter 15 V/ Charger (PA-AD-600)

:

Car Adapter, Wired, 4267mm (PA-CD-WR)

:

Car Adapter, CigPlug, 3048mm (PA-CD-CG)

Optional Car Mount

:

Permanent Car Mount (PA-CM-500)

Optional Carry Case

:

PocketJet Vynil Carrying case (PA-CC-500)

:

Roll Printer Case, 1.2m drop resistant and IP54 rated (PA-RC-001)

:

Rubber Case, 1.2m drop resistant (PA-RB-001)

Optional Other

:

Paper Roll Holder (PA-RH-600)

:

Paper Guide (for 3 button model) (PA-PG-001)

CONSUMABLE

Consumables

:

A4 thermal paper sheets (100 sheets), 75gsm, 3 years (PA-C-411)

:

A4 thermal paper sheets (100 sheets), 75gsm, 20 years (PA-C-411-20YR)

:

A4 width thermal paper roll x (15m) or approx 50 sheets, 6 pack, 64gsm, 3 years (PA-R-411B)

:

A4 size perforated roll paper (6 rolls per box) 100 pages per roll (A4-Perforated-Roll)

WEIGHT AND MEASURES

Size

:

255(W) x 55(D) x 30(H) mm (machine only)

Weight

:

480g (excluding Battery, paper) (machine only)

ENVIRONMENT

Auto Power Off

:

19 settings( 0,1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15 = default, 20, 25, 30, 40, 50, 60, 90, 120 minutes) After this time no signal, power is off automatically.

Humidity

:

Operating Humidity: 20 to 80%

:

Storage Humidity: 20 to 80%

Temperature

:

Operating Temperature: -10 to 50deg C

:

Storage Temperature: -20 to 60deg C

OTHERS

Warranty

:

12 Months Return To Base

Carton Contents

:

PJ-773, Quick Setup Guide, CD-ROM (Including users guide, printer driver), USB cable, Head cleaning sheet, Li-ion battery, AC Adaptor, A4 thermal paper
