Overview

High Performance

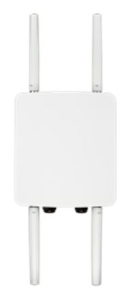

The DWL-8710AP is equipped with two radio transceivers. The first is a 2.4 GHz 2x2 IEEE 802.11n interface that supports up to 300 Mbps of network throughput while the second one is a 5 GHz 2x2 802.11ac interface, capable of up to 867 Mbps of network throughput. The DWL-8710AP also features two Gigabit Ethernet network interfaces, designed to allow the administrator to easily bridge other networking devices into the network, such as a camera or another Wi-Fi access point.

Robust Design

The DWL-8710AP is IP67-compliant and is designed to operate in harsh outdoor environments and temperatures ranging from -30 up to 60 ?C. In addition, all network interfaces are protected against electrical surges, enabling the device to be placed in areas where there is a risk of being struck by lightning.

Unified Management

When deployed in conjunction with D-Links line of Unified Wireless Switches, up to 1024 DWL-8710APs may be centrally managed and provisioned, enabling the administrator to scale the Wi-Fi network to cover larger areas.

Security

The DWL-8710AP supports all the latest in Wi-Fi security, including WPA, WPA2, and 802.1X. In addition, the DWL-8710AP supports up to 32 Virtual Access Points (VAP), which gives the administrator the flexibility to easily assign access privileges to different classes of users. When used together with D-Links line of Unified Wireless Switches, security can be taken to a new level. Rogue APs in the network may be easily detected, and the administrator will be immediately notified of any security threat.

Automatic Radio Frequency (RF) Management

When a number of access points are deployed close to each other, interference may result if proper RF management is not implemented. When a DWL-8710AP senses a neighbor AP nearby, RF management will make it so that the DWL-8710AP will automatically select a non-interfering channel. This greatly reduces RF interference and makes it possible to deploy APs more densely. To further minimize interference, the DWL-8710AP will automatically lower its transmit power when an adjacent AP is operating on the same channel. If a nearby AP is no longer present, the DWL-8710AP will dynamically increase its transmit power again to increase wireless coverage.

Quality of Service

The DWL-8710AP supports Wi-Fi Multimedia (WMM), which prioritizes time sensitive traffic ahead of the pack in the event of a network data congestion. Furthermore, when a number of DWL-8710APs are in close proximity with each other, an access point will refuse new association requests once its resources are fully utilized. Instead, the association request will be picked up by a neighboring unit. This feature ensures that a single access point is never overloaded while others sit idle. Furthermore, the administrator has the option to limit the bandwidth on a per-user-basis, avoiding scenarios where a particular client might use up all the available bandwidth, affecting the performance of other users on the network.

Specifications

Ideal for Business and Campus Environments

Blazing performance, reaching up to 1 Gbps of network throughput

IP67-compliant housing, allowing it to withstand very harsh weather conditions

Up to 32 virtual access points may be created using a single access point

Automatic load-balancing between linked APs

Flexible Wi-Fi QoS schemes, allowing for controlled and balanced access

Combine with D-Links Unified Wireless Switches to expand the network to support hundreds of APs

Trusted Security

WPA/WPA2 Personal

WPA/WPA2 Enterprise

MAC address filtering

Rogue AP detection

RF Management

Automatic channel selection

Automatic power transmitting adjustment

Convenient Installation

Can be easily attached to a wall or pole using the provided mounting kits

Supports 802.3at Power-Over-Ethernet, allowing the unit to be installed in remote locations

Technical Specifications

General

Interfaces:

802.11a/g/n/ac 2x2 MIMO

2 x 10/100/1000 LAN ports

Four N-Type antenna connectors

Antenna :

2 x 7 dBi gain for 5 GHz radio

2 x 5 dBi gain for 2.4 GHz radio

Four external omni-directional antennas included

Power Method:

PoE-Powered through port LAN1

Functionality

Operating Frequency:

2400 MHz to 2483.5 MHz ISM band

5.180 GHz to 5.240 GHz

5.280 GHz to 5.320 GHz

5.500 GHz to 5.700 GHz

5.745 GHz to 5.825 GHz

Operating Channels:

1 to 13 channels for 2.4 GHz band (per country code)

36 to 165 channels for 5 GHz band (per country code)

Web-Based User Interface:

HTTP/HTTPS

Command Line

Telnet/SSH

SNMP

SSID Security :

Up to 32 SSIDs, 16 per radio

802.1Q VLAN

Station Isolation

Wireless Security :

WPA Personal/ Enterprise

AES and TKIP

Detection & Prevention :

Rogue and Valid AP Classification

Authentication :

MAC Address Filtering

Dimensions :

250 x 220 x 45 mm (9.48 x 8.66 x 1.77 inch) excluding mounting base

Weight:

2053 g (4.53 lbs) with antennas attached

Power Consumption:

16.5 W maximum

Power over Ethernet :

802.3at compliant Power-Over-Ethernet

Enclosure :

Metal and polycarbonate

IP67-rated housing

UL2043 certified

GORE Vent

Temperature :

Operating: -30 to 60 C

Storage: -30 to 70C

Humidity :

Operating: 10% to 90% non-condensing

Certifications :

CE

EN 301 893 V1.7.1 (2012-06) (DFS/TPC)

EN 300 328 V1.8.1 (2012-06)

FCC

IC

cUL

C-Tick

NCC

Wi-Fi

LVD

UL2043

BSMI
