All stock codes associated to this product
AERSXADVWH, AER-SX-ADV-WH
Overview

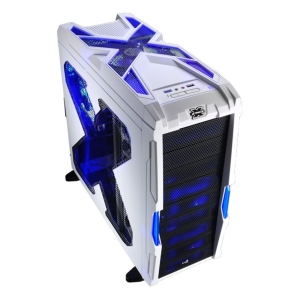

Aerocool Strike-X Advance represents an ultra high end mid tower for gamers
and enthusiasts alike.
High-End Ultra Mid tower case for gamers and PC enthusiasts. Solidly
constructed chassis interior (0.6mm thickness).

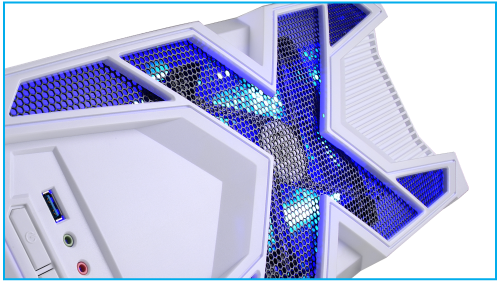

Fan on top panel to extract heat from chassis.
Chassis Internal
Drive Bays : 9 x 5.25" (Exposed) / 6 x 3.5" HDD or 2.5 HDD (with convertor
bracket-included)

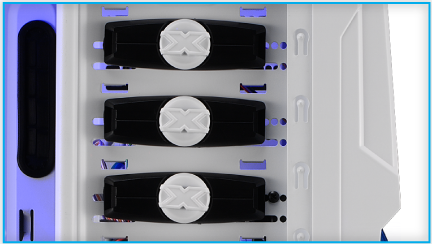

Tool-free for 5.25 bay.

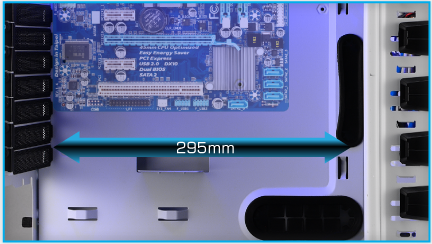

Supports longer high-end graphic cards up to 295mm.
Chassis Details
- Case type: Mid tower.
- Case dimensions (LxWxH): 490mm x 190mm x 465mm.
- PSU mounting position: Top rear.
- 5.25" drive bays (external): 9.
- 3.5" drive bays (external): 0.
- 3.5" or 2.5" drive bays (internal): 6.
- Compatible motherboard sizes: Standard & Micro ATX.
- Included cooling fans: 3x 120mm & 1x 140mm.
- Total available case fan mounting positions: 6.
- Included Audio I/O ports: 2.
- Included USB2 I/O ports: 2.
- Included USB3 I/O ports: 1.
- Included I/O port location: Top front.
Specifications
|
Model
Name |
Strike-X
ADVANCE |
|
|
|
Case
Type |
Mid
Tower |
|
|
|
Steel
Thickness |
0.6
mm |
|
|
|
Motherboards |
ATX /
Micro-ATX |
|
|
|
Case
Dimensions |
465 mm (in) x 190 mm
(W) x 490 mm (D) |
|
|
|
Drive
Bays |
9 x 5.25 "(Outer) / 6 x
3.5" HDD or 2.5 HDD |
|
|
|
Expansion
Slots |
7
Slots |
|
|
|
Max length space
available for PCI slots |
295
mm |
|
|
|
I/O
Ports |
1x USB 3.0 / 1x USB2.0
/ Audio + Mic (AC97 + HD audio) |
|
|
|
Height limit for CPU
coolers ( Without side fan ) |
163
mm |
|
|
|
Air Cooling
System |
Front : 2 x 12 cm fans
(Included ) |
|
|
|
Top : 1 x 14cm fan Red
Fan (Included) |
|
|
|
Rear : 1 x 12cm Red fan
(Included) |
|
|
|
Bottom : 1 x 14cm fan
(Optional) |
|
|
|
Side : 1 x 12cm fan
(Optional) |
|
|
|
EAN
Code |
EN58025 -
Black Edition |
|
|
|
EN58032 -
Red Edition |
|
|
|
EN58100 -
White Edition |
|
|
|
|
|
|
|
|
Cooling
System |
|
|
|
|
|
|
|
|
Strike-X
ADVANCE |
[ Front
] |
[ Rear
] |
[ Top
] |
|
White Edition |
 Quad
Blue LEDs
|
Quad
Blue LEDs |
Quad
Blue LEDs |
|
Fan |
120 x 120 x 25
mm |
120 x 120 x 25
mm |
140 x 140 x 25
mm |
|
Rated
voltage |
12V |
12V |
12V |
|
Starting
voltage |
6V |
6V |
6V |
|
Rated
current |
0.2A |
0.2A |
0.36A |
|
Power
consumption |
1.2W |
1.2W |
4.32 |
|
Speed |
1200RPM |
1200RPM |
1500RPM |
|
Max
AirFlow |
39CFM |
39CFM |
96.5CFM |
|
Noise
(dBA) |
23dBA |
23dBA |
29.6dBA |
|
MTBF |
20,000
hours |
20,000
hours |
20,000
hours |
