Overview
-
Broad
operating frequency channels ensure less wireless interference
-
Wireless
N speed up to 300Mbps
-
Selectable
bandwidth of 5/10/20/40MHz
-
Adjustable
transmission power from 0 to 27dBm/500mW
-
2
RP-SMA connectors for external MIMO antenna
-
Work
with TP-LINK dish antenna for long-distance wireless data transfer up to
30Km+
-
1
10/100Mbps Ethernet port for passive PoE and 1 10/100Mbps Ethernet port for
extended applications
-
TP-LINK
Pharos MAXtream (Time-Division-Multiple-Access) technology improves product
throughput, capacity and latency performance, ideal for PtMP
applications
-
Centralized
Management System Pharos Control
-
Supports
AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater
Operation modes
-
Weatherproof
enclosure, 15KV ESD and 6KV lightning protection
Access Where You Need It Most

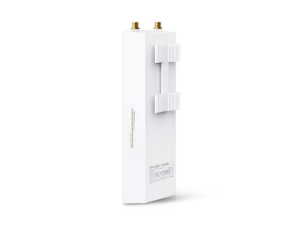

TP-LINKs 2.4GHz 300Mbps Outdoor Wireless Base Station is specifically
designed to provide an effective solution for outdoor wireless networking
applications. With its centralized management platform and high degree of
flexibility, it is the ideal choice for providing point-to-point,
point-to-multipoint, and outdoor Wi-Fi coverage. The TP-LINK Outdoor Wireless
Base Station pairs professional performance with user-friendly design, making it
the perfect solution for both business and home users.
Long-Distance Wireless Data Transmission
Two external RP-SMA antenna interfaces allow the Outdoor Wireless Base
Station to integrate seamlessly with TP-LINK's line of sector and dish antennas.
Where long- distance wireless data transmission is necessary, the WBS210 can be
paired with a TP-LINK dish antenna, allowing it to transfer data over distances
of up to 30 km.
Easy Installation, No Tools Needed
Pharos Base Stations works seamlessly with TP-LINK dish and sector antennas
to provide efficient PtP and PtMP data transmission. Pharos Base Stations also
feature a built-in mount, meaning that no tools are required for
installation.
Enterprise Level Hardware Design
To maximize performance and stabilize long distance wireless transmission,
the Pharos Series is built with Qualcomm Atheros enterprise level chipsets, high
gain-antennas, and high-power amplifiers. In addition to excellent internal
components, Pharos Series Base Stations also feature specially designed,
weatherproof enclosures and PoE capability. This industry-leading hardware
ensures that Pharos Series Base Stations can be deployed in a wide variety of
environments, withstanding broad ranges of humidity and temperature (-30C~70C)
(-22F~158F).
- Qualcomm Atheros Enterprise
- Level Chipset
| 300Mbps Wireless N |
- Weatherproof Enclosure
- Passive PoE Adapter
| 6KVLightning Protection |
- 15KV ESD Protection
MAXtream TDMA Technology – Guaranteed Throughput
As networks grow in scale, base stations and other devices often compete for
access to a single data connection, resulting in diminished throughput and a
poorer experience for the end-user. Pharos Base Stations utilize MAXtream TDMA
Technology to counteract this competition and ensure that data transfer rates
remain high, even as demand increases.
Pharos Control - Centralized Management System
Pharos Base Stations are equipped with Pharos Control, a centralized
management software that helps users easily manage all network devices from a
single PC. Pharos Control provides ultimate convenience for users who wish to
control device discovery, monitor network status, upgrade device firmware, or
perform other network maintenance tasks.
PharOS
PharOS is a user-friendly, web-based management system that allows advanced
users and network professionals to perform fine-tune calibration and access more
advanced configuration options.
TP-LINK Pharos Provides High Performance Solutions
TP-LINK Pharos series products are dedicated to provide high performance
solutions for outdoor wireless networking applications. Nowadays Pharos includes
a variety of CPE and Base station devices, carrier class antennas, and a
centralized management application.
|
Wireless
Performance |
|
|
|
Compatibility |
802.11
a/n |
802.11
b/g/n |
|
Wireless
Speed |
300Mbps |
300Mbps |
|
Transmit
Power |
27dBm |
27dBm |
|
Maximum Transfer
distance |
50km+ |
30km+ |
|
MIMO |
|
|
|
Hardware |
|
|
|
External Antenna
Interface |
2 RP-SMA connectors for
MIMO antenna |
|
Weatherproof
Enclosure |
(IP65) |
(IP65) |
|
ESD
Protection |
15kV |
15kV |
|
Lightning
Protection |
6kV |
6kV |
|
Software |
|
|
|
Operation
Modes |
AP / Client / Bridge /
Repeater / AP Client Router (WISP Client) / AP Router
Mode |
|
MAXtream TDMA
Mode |
|
|
|
Channel
Bandwidth |
5/10/20/40MHz |
5/10/20/40MHz |
Specifications
|
HARDWARE
FEATURES |
|
Processor |
Qualcomm Atheros
Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
|
Memory |
64MB DDR2 RAM, 8MB
Flash |
|
Interfaces |
1 10/100Mbps Shielded
Ethernet Port (LAN0/POE) |
|
1 10/100Mbps Shielded
Ethernet Port (LAN1) |
|
2
RP-SMA |
|
1 Grounding
Terminal |
|
1 Reset
Button |
|
Power
Supply |
Passive Power over
Ethernet via LAN0 (+4,5pins; -7,8pins) |
|
Voltage range:
16-27VDC |
|
Dimensions (W X D X
H) |
198 x 74 x 40
mm |
|
Protection |
15KV ESD
Protection |
|
6KV Lightning
Protection |
|
Enclosure |
Outdoor ASA stabilized
plastic material |
|
IP65 water and dust
proof Certification |
|
|
|
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE
802.11b/g/n |
|
Proprietary
Protocol |
TDMA Mode (with Pharos
MAXtream enabled) |
|
Wireless
Speeds |
Up to 300Mbps
(40MHz,Dynamic) |
|
Up to 144.4Mbps
(20MHz,Dynamic) |
|
Up to 72.2Mbps
(10MHz,Dynamic) |
|
Up to 36.1Mbps
(5MHz,Dynamic) |
|
Frequency |
2.4~2.483GHz |
|
Note: Available
operating frequency may vary depending on the limitation of the contries
or regions in which the device is used. |
|
Transmission
Power |
27dBm/500mW (Adjustable
power by 1dBm) |
|
Note: Maximum
transmission power may vary across different channels depending on the
limitations of the countries or regions in which the device is
used. |
|
|
|
|
SOFTWARE
FEATURES |
|
Operating
Modes |
AP / Client / Bridge
/Repeater |
|
AP Router Mode / AP
Client Router(WISP Client) Mode |
|
Network
Configuration |
WAN:
Static/Dynamic/PPPoE/L2TP/PPTP |
|
LAN:
Static/Dynamic/Dynamic/DHCP |
|
Forwarding:
DMZ/ALG/UPnP/Virtual Server/Port Trigger |
|
Security: SPI
Firewall/Ping Forbidden/VPN/DOS Protection |
|
Access
Control |
|
Static
Routing |
|
Bandwidth
Control |
|
IP & MAC
Binding |
|
Wireless
Configurations |
Pharos MAXtream TDMA
Technology |
|
802.11b/g/n
Modes |
|
Selectable Channel
Width: 5/10/20/40MHz |
|
Automatic Channel
Selection |
|
Transmission Power
Control |
|
Dynamic Frequency
Selection (DFS) |
|
WDS
Enable/Disable |
|
Security: WPA/WPA2,
WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP
Encryption |
|
SSID Broadcast
Enable/Disable |
|
Multi-SSID with VLAN
Tagging (AP mode only) |
|
Distance/ACK Timeout
Setting |
|
Wireless MAC Address
Filter |
|
Wireless
Advanced: |
|
> Beacon
Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP
Isolation/ |
|
Short GI/Wi-Fi
Multimedia |
|
Management |
Discovery and Remote
Management via Pharos Control application |
|
HTTP/HTTPS Web-based
management |
|
System
Log |
|
SNMP
Agent(v2c) |
|
Ping Watch
Dog |
|
Dynamic
DDNS |
|
SSH
Server |
|
System
Tools |
Wireless Signal Quality
Indicators: |
|
Signal
Strength/Noise/Transmit CCQ/CPU/Memory |
|
Monitors:
Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP |
|
Spectrum
Analyzer |
|
Speed
Test |
|
Ping |
|
Traceroute |
|
System-level
Optimizations |
802.11b/g/n Tx
beamforming technology |
|
Optimized IGMP
Snooping/Proxy for multicast applications |
|
Hardware watch
dog |
|
|
|
|
OTHERS |
|
Certification |
CE, FCC, RoHS,
IP65 |
|
Package
Contents |
Outdoor Wireless Base
Station |
|
24V 1A Passive PoE
Adapter |
|
Pole Mounting
Kit |
|
AC Power
Cord |
|
Quick Installation
Guide |
|
System
Requirements |
Microsoft Windows 98SE,
NT, 2000, XP, Vista or Windows 10, Windows 8, Windows
7, |
|
MAC OS, NetWare, UNIX
or Linux. |
|
Note: We recommend you
to use one of following Web browsers for an improved
user |
|
experience: Google
Chrome, Safari, and Firefox. IE browsers are not
recommended. |
|
Environment |
Operating Temperature:
-30C~70C (-22~158) |
|
Storage Temperature:
-40~70
(-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~95% non-condensing |
