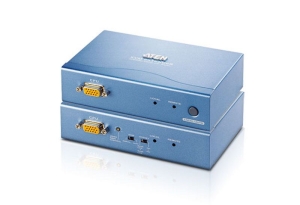

Overview
The CE252 allows access to your KVM installation through a local console,or a
remote console placed up to a distance of 300m(1000') away. Both the local and
remote units support PS/2 consoles. In addition to these features,the CE252
includes a convenient port at the remote unit to connect an extra computer. This
allows the remote user to combine their desktop computer with the remote console
for increase efficiency and productivity.
Features
| Uses Cat 5e
cable to connect the local and remote units (up to 300m apart) |
| Dual Console
Operation - control your system from both the local and remote PS/2 keyboard,
mouse and monitor consoles |
| Additional PC
connection allowed for the remote unit |
| Pushbutton
selection - sequential selection between local and auto mode |
| Two gain
control modes provided for the sharpest video quality-adjustable or
automatic |
| Adjustable
gain control - manually adjusts signal strength to compensate for
distance |
| Automatic
Gain Control - automatically adjusts signal strength to compensate for
distance |
| High video
resolution - up to 1600 x 1200 |
| Supports
DDC2B for local monitor (display data channel for communication between
graphic card and monitor) |
| Supports VGA,
SVGA, and Multisync Monitors |
| Built-in 8KV
ESD protection and 2KV surge protection |
| Local unit
takes its power from the computer - external power is only required when the
power from the local computer/computers in the KVM installation is
insufficient |
- Multiplatform support: Windows 2000/XP/Vista.

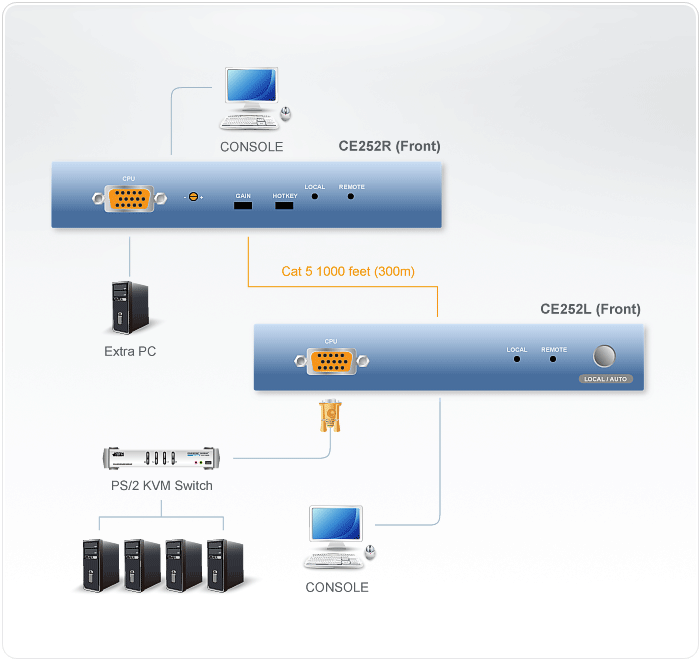

Diagram
Compatible Products
Package Contents
Patent No.
CN ZL 01124239.6 , CN ZL 200410042772.8 , CN ZL 200710181531.5 , DE
102004058233 , JP 4160936 , JP 5244448 , TW 150098 , TW I243890 , TW I339467 ,
US 6160543 , US 6489854 , US 7532998 , US 7585176 , US 8090553
Specifications
|
Function |
CE252L |
CE252R |
|
|
|
|
Connectors |
|
|
|
Console
Ports |
1 x 6-pin Mini-DIN
female (Purple) |
1 x 6-pin Mini-DIN
female (Purple) |
|
1 x 6-pin Mini-DIN
female (Green) |
1 x 6-pin Mini-DIN
female (Green) |
|
1 x HDB-15 Female
(Blue) |
1 x HDB-15 Female
(Blue) |
|
Link |
1 x RJ-45
Female |
1 x RJ-45
Female |
|
KVM
Ports |
1 x SPHD-15 Female
(Yellow) |
1 x SPHD-15 Female
(Yellow) |
|
Power |
1 x DC
Jack |
1 x DC
Jack |
|
|
|
|
LEDs |
|
|
|
Local |
1
(Green) |
1
(Green) |
|
Remote |
1
(Green) |
1
(Green) |
|
|
|
|
Switches |
|
|
|
Selection
Mode |
1 x
Pushbutton |
N/A |
|
Manual Gain Control
(Remote) |
N/A |
1 x
Knob |
|
Hotkey Selection
(Remote) |
N/A |
1 x
Slide |
|
|
|
|
Emulation |
|
|
|
Keyboard /
Mouse |
PS/2 |
PS/2 |
|
|
|
|
|
Video |
1600 x 1200 @ 60Hz,
150m |
1600 x 1200 @ 60Hz,
150m |
|
1024 x 768 @ 60Hz,
300m |
1024 x 768 @ 60Hz,
300m |
|
|
|
|
Power
Consumption |
|
|
|
Local |
DC 5.3V,
2.6W |
DC 5.3V,
2.6W |
|
Remote |
DC 5.3V,
2.6W |
DC 5.3V,
2.6W |
|
|
|
|
Environmental |
|
|
|
Operating
Temperature |
0 -
50C |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
0 - 80% RH,
Non-condensing |
|
|
|
|
Physical
Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.37 kg ( 0.81 lb
) |
0.37 kg ( 0.81 lb
) |
|
Dimensions (L x W x
H) |
13.90 x 8.78 x 3.61
cm |
13.90 x 8.78 x 3.61
cm |
|
(5.47 x 3.46 x 1.42
in.) |
(5.47 x 3.46 x 1.42
in.) |
