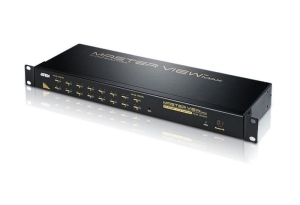

ATEN CS1216A-AT-U 16-Port PS/2 KVM
Switch
Overview
ACS1216A is a high-efficiency KVM Switch. It provides the most efficient
solution to fulfill the management needs of server networks. Every unit has just
the size of 1U in its advanced technology and high-density connection interface
design which fulfills the rack space need. It can control up to 512 servers by
cascade.
Compatible Accessories
KVM Cables
- 2L-5702P - Lenght: 1.8m
- 2L-5206UP - Lenght: 6m
- 2L-5203UP - Lenght: 3m
- 2L-5202UP - Lenght: 1.8m
- 2L-5206UP - Lenght: 6m
- 2L--5206P - Lenght: 6m
- 2L-5203P - Lenght: 3m
- 2L--5202P - Lenght: 1.8m
- 2L-5201P - Lenght: 1.2m
KVM Modules & Accessories
Daisy Chain Cables
- 2L-1715 - Lenght: 15m
- 2L-1705 - Lenght: 5m
- 2L-1703 - Lenght: 3m
- 2L-1701 - Lenght: 1.8m
- 2L-1700 - Lenght: 0.6m
Compatible Products
Cat 5 KVM Switches
KVM over IP Switches
- KH1516Ai
- KH1508Ai
- CS1716i
- CS1708i
LCD Switches
- KL1516Ai
- KL1516A
- KL1508Ai
- KL1508A
- CL5816
- CL5808
- CL5716
- CL5708
- CL1016
Matrix KVM Switches
Rack KVM Switches
- CS1716A
- CS1708A
- ACS1216A
- KH0116
- ACS1208A
Package Contents
Patent No.
CN ZL 02122202.9 , TW 183765 , US 7386584 , US 7640289
Features
| One PS/2
console controls 8 computers. |
| Daisy chain
up to 31 additional units - Control up to 256 computers from a single
console. |
| Firmware
upgrades to all the chained KVM switches at the same time via the daisy chain
cable. |
| Buzzer ON/OFF
via hotkey and OSD. |
| Broadcast
Mode: Operations simultaneously performed on all selected computers, software
installation and upgrading, system wide shutdown....etc. |
| Auto-sensing
of station's position on daisy chained installations - no need for manual DIP
switch setting - front panel LED indicates station's position. |
| Computer
selection via hotkeys and OSD. |
| Superior
video quality- up to 2048 x 1536; DDC2B. |
| Rack
mountable in 19" system rack. |
| Multiplatform support: Windows 2000/XP/Vista, Linux and
FreeBSD. |
| For more
information about KVMs which can connect to ACS1216A, see Compatible KVM
Table. |

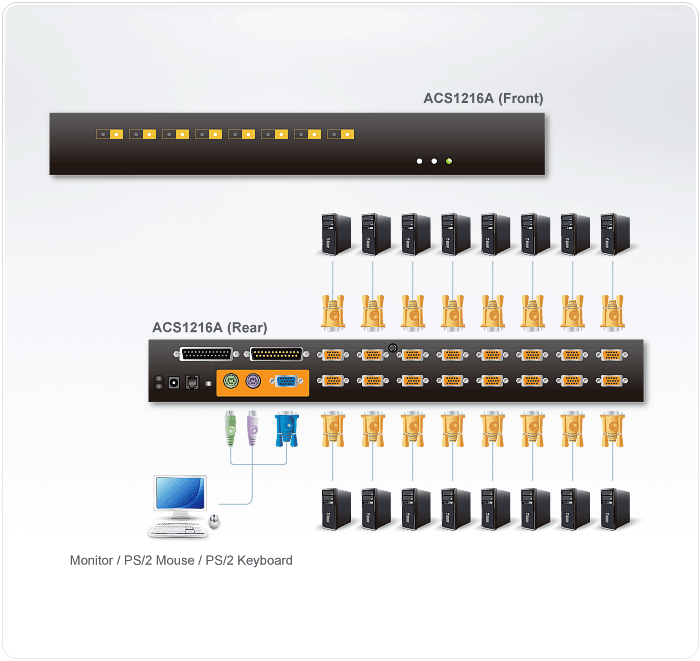

Diagram
Specifications
|
Computer
Connections |
|
Direct |
16 |
|
Maximum |
512 (via
Daisy-chain) |
|
Port
Selection |
OSD,
Hotkey |
|
Connectors |
|
Console
Ports |
1 x 6-pin Mini-DIN
Female (Purple) |
|
1 x HDB-15 Female
(Blue) |
|
1 x Mini Din 6 Female
(Green) |
|
KVM
Ports |
16 x SPHD-15 Female
(Yellow) |
|
Daisy Chain
Ports |
1 x DB-25 Female
(Black) |
|
1 x DB-25 Male
(Black) |
|
Firmware
Upgrade |
1 x RJ-11 Female
(Black) |
|
Power |
1 x DC Jack
(Black) |
|
Switches |
|
Firmware
Upgrade |
1 x
Slide |
|
Reset |
1 x Semi-recessed
Pushbutoon |
|
LEDs |
|
Online |
16
(Orange) |
|
Selected |
16
(Green) |
|
Station
ID |
2 x 7-segement
(Orange) |
|
Power |
1
(Blue) |
|
Emulation |
|
Keyboard /
Mouse |
PS/2 |
|
Video
Resolution |
2048x1536;DDC2B |
|
Scan
Interval |
1-255
Seconds |
|
Power
Consumption |
DC9V,
7.5W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
TBD |
|
Dimensions (L x W x
H) |
TBD |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders |
|
