All stock codes associated to this product
CS1732B, CS-1732B, ATCS1732B, 16KCS1732B, 16K-CS-1732B, 672792112249, 4710423775060
Overview
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM
switch, it allows users to access two computers from a single keyboard, monitor,
and mouse console. There are four methods to obtain instant access to any
computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Compatible Accessories
KVM Cables
- 2L-530P - Length: 5m
- 2L-5303P - Length: 3m
- 2L-5302-P - Length: 1.8m
- 2L-5301P - Length: 1.2m
- 2L-5301U - Length: 1.2m
- 2L-5302U - Length: 1.8m
- 2L-5303U - Length: 3m
- 2L-5305U - Length: 5m
KVM Modules & Accessories
Compatible Products
KVM Extenders
- CE800B
- CE790
- CE700A
- CE370
- CE350
- CE100
- CE770
LCD KVM Accessories
Package Contents
Patent No.
CN ZL 02824593.8 , EP 1451696 , JP 4558319 , JP 4651633 , JP 5232209 , TW
203183 , TW I220476 , TW I220489 , US 6464197 , US 6564275 , US 6957287 , US
7047344 , US 7340556 , US 7472217 , US 8140734 , US 8176226
Features
-
2-port KVM switch with USB 2.0
support and 2.1 surround sound audio
-
One console controls two computers
and two additional USB devices
-
2-port USB 2.0 hub built
in
-
USB 2.0 compliant
-
Dual interface - supports
computers with PS/2 or USB keyboard and mouse configurations
-
Audio enabled - full bass response
provides a rich experience for 2.1 surround sound systems
-
Console audio ports on front panel
for easy access - ideal for IP phone users
-
Independent switching of KVM, USB,
and Audio focus
-
Superior video quality; 2048 x
1536; DDC2B
-
Supports widescreen
resolutions
-
Computer selection via front panel
pushbuttons, multilingual OSD (On Screen Display), hotkeys and
mouse
-
Multiplatform support - Windows ,
Mac, and Sun
-
Console mouse port emulation /
bypass feature supports full mouse driver and multifunction mice
-
Video DynaSync - stores the
console monitor's EDID (Extended Display Identification Data) to optimize
display resolution
-
Complete keyboard emulation for
error-free booting
-
Sun/Mac keyboard support and
emulation*
-
Auto Scan Mode for monitoring all
computers
-
LED Display for easy status
monitoring
-
Easy installation no software
required
-
Firmware upgradeable
*1.PC
keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac
keyboards only work with their own computers

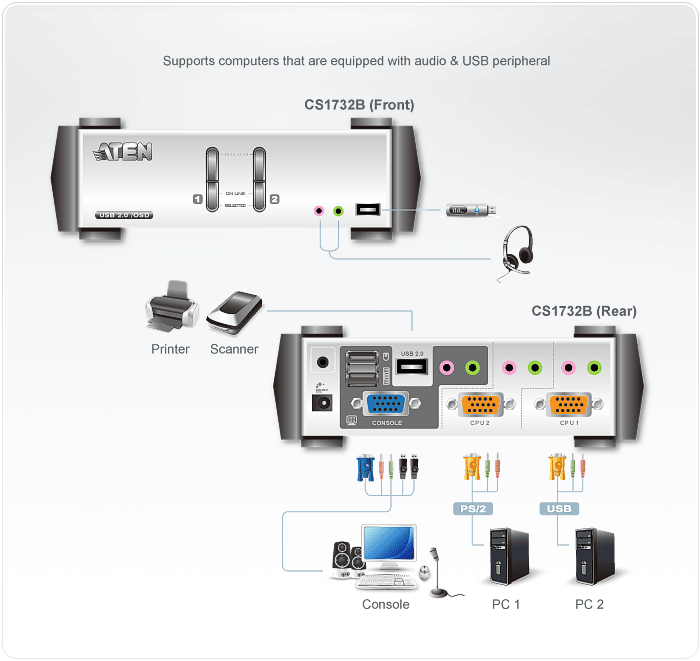

Diagram
Specifications
|
Computer
Connections |
2 |
|
Port
Selection |
Hotkey, Pushbutton,
OSD, Mouse |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black) |
|
1 x HDB-15 Female
(Blue) |
|
2 x Mini Stereo Jack
Female (Green) |
|
2 x Mini Stereo Jack
Female (Pink) |
|
KVM
Ports |
2 x SPHD-15 Female
(Yellow) |
|
2 x Mini Stereo Jack
Female (Green) |
|
2 x Mini Stereo Jack
Female (Pink) |
|
Firmware
Upgrade |
1 x 4-conductor 3.5mm
Jack (Black) |
|
Power |
1 x DC
Jack |
|
USB
Hub |
2 x USB Type A Female
(White) |
|
Switches |
|
Selected |
2 x
Pushbutton |
|
LEDs |
|
Online /
Selected |
2
(Orange) |
|
USB
Link |
2
(Green) |
|
Emulation |
|
Keyboard /
Mouse |
PS/2;
USB |
|
Video |
2048 x 1536 @ 60Hz;
DDC2B |
|
Scan
Interval |
1-255 Seconds (Default:
5 sec.) |
|
Power
Consumption |
DC5.3V,
3.1W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.55 kg ( 1.21 lb
) |
|
Dimensions (L x W x
H) |
14.00 x 8.80 x 5.55
cm |
|
(5.51 x 3.46 x 2.19
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
