ATEN CS52 2 Port Hybrid KVM Switch USB and PS/2 with Remote Port Selector
2x 6-pin Mini-DIN Male (Purple), 2x HDB-15 Male (Blue), 2x USB Type A Male (Black), 1x Mini Stereo Jack(Remote Port)

No Longer Available

Part Number:

409067

(?) Brand:

ATEN

Manuf No:

CS52-AT
CS52AT

Shipping Weight:

0.3 KG (Includes product packaging)
Estimate Shipping

Date Added:

4/7/2016

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

CS52AT, CS52-AT, ATCS52

Overview

Flexible Combinations : PS/2 Keyboard+USB Mouse

ROHS Weee

Features

One console (monitor, PS/2 keyboard, and USB mouse) controls two computers
Remote port selection switch for convenient switch placement
Supports multi-function mice
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
Compact design, built in all-in-one cables (console 0.15m; computers 0.6m, 1.2m)
Superior video quality- up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
OS Compatibility includes Windows 2000/XP/Vista, Linux and FreeBSD.

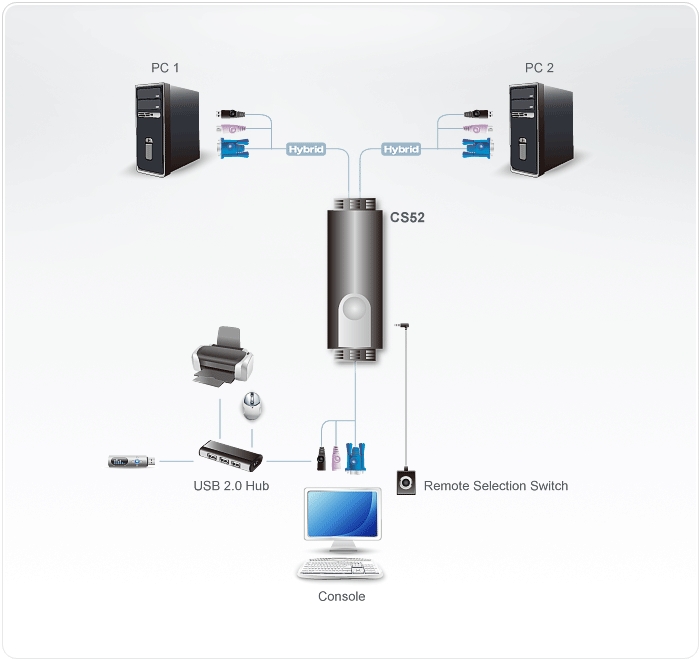

Diagram

Specifications

Computer Connections	2
Port Selection	Hotkey, Remote Port Selector

Connectors
Console Ports	1 x 6-pin Mini-DIN Female (Purple)
	1 x HDB-15 Female (Blue)
	1 x USB Type A Female (Black)
KVM Ports	2 x 6-pin Mini-DIN Male (Purple)
	2 x HDB-15 Male (Blue)
	2 x USB Type A Male (Black)
Remote Port Selector	1 x Mini Stereo Jack

LEDs
Selected	2 (Green)

Cable Length
Console	0.15m
Computer	0.6m, 1.2m

Emulation
Keyboard / Mouse	PS/2
Video	2048 x 1536; DDC2B
Scan Interval	3, 5, 10, 20 Seconds

Environmental
Operating Temperature	0-50C
Storage Temperature	-20-60C
Humidity	0-80% RH, Non-condensing

Physical Properties
Housing	Plastic
Weight	0.35 kg ( 0.77 lb )
Dimensions (L x W x H)	8.45 x 3.40 x 2.21 cm
Dimensions (L x W x H)	(3.33 x 1.34 x 0.87 in.)

Specifications

1x 2-Port Hybrid KVM Switch
1x Remote Selection Switch (1.8m)
1x User Instructions

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
