All stock codes associated to this product
VC810AT, VC810-AT, KVAVC810, KVA-VC-810, 4719264641381
Overview

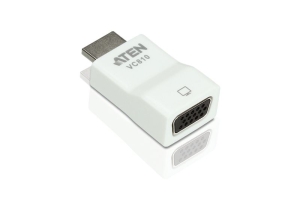

The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI
source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g.
projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at
extra cost. It supports frequently used video resolutions of up to 1920 x 1200.
The VC810 is compact and convenient to install with no software needed simply
make the hardware connections. In addition, this plug-n-play converter does not
require an external power source, which is ideal for environments like
conference room where briefings or presentations take place, ensuring great
portability, installation simplicity, and manageability.
Package Contents
- 1x VC810 HDMI-to-VGA converter
Features
-
Converts HDMI signals to VGA
output
-
Superior video quality up to 1920
x 1200, 1080p
-
Supports wide screen
formats
-
Non-powered
Diagram
Specifications
|
Video
Input |
|
Interfaces |
1 x HDMI Type A Male
(Black) |
|
Impedance |
100
|
|
Video
Output |
|
Interfaces |
1 x HDB-15 Female
(Black) |
|
Impedance |
75
|
|
Video |
|
Max. Pixel
Clock |
200
MHz |
|
Max.
Resolution |
Up to 1920 x
1200 |
|
Environmental |
|
Operating
Temperature |
0 - 60
C |
|
Storage
Temperature |
-10 - 70
C |
|
Humidity |
40 - 85% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.01 kg ( 0.02 lb
) |
|
Dimensions (L x W x
H) |
4.55 x 2.30 x 1.48
cm |
|
(1.79 x 0.91 x 0.58
in.) |
|
Carton
Lot |
40
pcs |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
