No Longer Available

Part Number:
409379
(?) Brand:
Manuf No:
ST4675S
Shipping Weight:
30 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
ST4675S, 13ST4675S

Overview

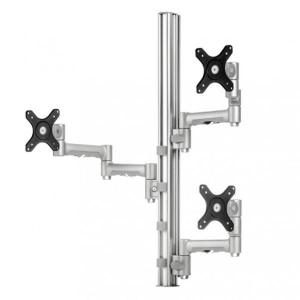

The SYSTEMA ST4675S is a triple 460mm arm combination attached to a 750mm post. This solution is part of the SYSTEMA modular range and consists of the following individual components:

Ideal for: A range of display sizes in portrait and landscape orientations, supported display size will depend on your desired configuration. The three 460mm arms can be installed in any of the four channels of the 750mm post. Perfect for screen real estate demanding applications and Activity-based workplaces. Touch screen compatible.

Upgrades: One or all display mounting heads can be replaced with the SYSTEMA notebook holder SNTB (sold separately). Extended post height allows multiple additional arms to be installed in each of the four channels of the desk attached post giving a greater opportunity for future upgrades to multi display, notebook or tablet configurations.

  • Supports a wide range of displays weighing up to 12kg
  • VESA mounting hole pattern: 75 x 75 and 100 x 100; can support 200x100 via additional adaptor plate AC-AP-2010
  • 8mm hardened steel dual plate Desk Clamp and Bolt Through mounting options included
  • Display tilt, pan and landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 12 Month warranty

Authentic Design Alliance

Specifications

General

BrandSystema

Desk mounting typeBolt through, Desk clamp

Number of screens supported3

ColourSilver

Compatibility

Maximum supported weight, per display (kg)12

VESA mounting hole pattern75x75, 100x100

Upgradable to multi-screenYes

Maximum desk thickness allowed (mm)68

Range of movement

Spring assisted height adjustability-

Tilt adjustment45 upward and 25downward

Pan adjustment90 left and 90 right

Landscape to portrait screen rotationYes

Height adjustableYes

Maximum arm reach (mm)Check Technical Specifications document

Installation

Quick release mechanismYes

Cable managementAdvanced cable management

Security featuresSecurity screws included at the mounting head

Mounting hardware includedYes

Other

Warranty 12 Month

MaterialSteel, Aluminium and Plastic

Other featuresPart of the SYSTEMA modular range, Green Star program compliant product

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Atdec) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
