All stock codes associated to this product
JUA355, 15AJUA355, 15A-JUA355, 4712795080667
Overview
Looking for an easy way to add a second monitor? Let's get to
multitasking!The

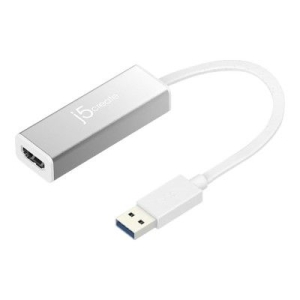

JUA355 USB 3.0 HDMI SLIM Display Adapterfrom j5create works as an
external video card, instantly allowing users to attach additional displays via
an HDMI connection without the hassle of a lengthy setup or having to install
additional internal hardware. The j5create USB 3.0 Display Adapter can support
up to four displays running on the same computer, turning your workstation into
a fully functioning multi-display powerhouse.
This video over USB adapter works as an external video card, instantly
allowing additional displays, without the hassle of opening the computer casing
and installing an external graphics card. You can have your 2nd monitor with an
extended display, a mirrored display, a rotational display (rotation mode not
available for MAC), or make it your primary monitor.
Now enjoy true 1080p HD resolution through any computer with a USB 3.0 port.
These adapters are also backwards compatible with USB 2.0 resolutions and
playback, ideal for office applications. Simple "Plug and Play" operation allows
you to connect your computer to a second monitor or projector and within seconds
to create a new visual environment.
Features
| Easily add an
additional display instantly through the USB3.0 and VGA/DVI/HDMI
connection. |
| Video playback performs at
1080P HD with a resolution of up to 2048 x 1152. |
| Add an additional monitor
without adding an expensive, internal video card, avoiding complicated
installation. |
| Hot swappable USB enables
you to add or remove monitors without rebooting your system. |
| Move and view your large
spreadsheets across two screens without overlapping windows. |
| Multitask with larger
landscape/desktop space. |
| Ideal for viewing multiple
windows at the same time. |
| Great for multitasking in a
wide variety of applications including: Phone centers, Stock Markets,
Hospitals, Graphic Design, Editing, Accounting, Etc. |
| A must have for surfing the
web and working on your email/facebook/twitter accounts all at the same
time. |
Specifications
|
Interface |
|
Host
Interface |
USB 3.0 male Type-A
Connector |
|
Video & Audio
Interface |
HDMI Female
Connector |
|
Power |
|
Power
Mode |
Bus-powered |
|
Power
Consumption |
500mA |
|
Physical
Specification |
|
Housing
Material |
Aluminum |
|
Dimensions |
Main body: 23.4(W) x 6
7.72(H) x 14.45(D)mm |
|
length: 129.5
mm |
|
Weight |
Approximately 33.5
g |
Environments
| Microsoft
Windows 10 / 8.1 / 8 / 7 / XP (32-bit or 64-bit) Compatible |
| Mac OS X
10.6~10.11 Compatible |
| Available USB
3.0/2.0 port (USB 3.0 recommended) |
| Minimum
System Requirements |
| Driver will
automatically install on 10 / 8.1 / 8 / 7 (Requires internet access) |
|
QTY |
1~2
Dongle |
34
Dongles |
|
CPU |
Intel i3 Dual Core 2.4
GHz or above |
Intel i5 Dual Core 1.6
GHz or above |
|
RAM |
2GB or
Higher |
4 GB or
Higher |
|
Full HD
Video |
Playing Video on the
extended monitor |
|
CPU: Intel i5 Quad Core
3.10 GHz or above |
|
RAM: 4 GB or
higher |
|
Higher Processor
recommended for Multi-Displays and optimal
performance. |
| NOTE.
USB HUB is not recommended for USB 3.0 display adapter |
| Note for
Video Player: |
| * Windows 8
& 7 user: "Windows Media Player" is recommended for video playback |
| * Windows
XP & MAC user: Windows XP &MAC products are not supported by USB
3.0 at this time, therefore we suggest USB 2.0 for 'office application' only;
Video Playback is not recommend due to USB 2.0 bandwidth limitations causing
limited video performance. |
| * Playing
Video with multiple monitors: only "Media Player Classic" is
supported. |
Resolutions and Color Depth
|
Aspect Ratio |
Resolution |
Color Depth |
|
Wide Screen Display |
|
16:09 |
2048 x 1152 |
16,32 bits |
|
16:10 |
1920 x 1200 |
16,32 bits |
|
16:09 |
1920 x 1080 |
16,32 bits |
|
16:10 |
1680 x 1050 |
16,32 bits |
|
16:09 |
1600 x 900 |
16,32 bits |
|
16:10 |
1440 x 900 |
16,32 bits |
|
16:09 |
1360 x 768 |
16,32 bits |
|
16:10 |
1280 x 800 |
16,32 bits |
|
15:09 |
1280 x 768 |
16,32 bits |
|
16:09 |
1280 x 720 |
16,32 bits |
|
Standard Display |
|
4:03 |
1600 x 1200 |
16,32 bits |
|
4:03 |
1400 x 1050 |
16,32 bits |
|
5:04 |
1280 x 1024 |
16,32 bits |
|
4:03 |
1280 x 960 |
16,32 bits |
|
4:03 |
1152 x 864 |
16,32 bits |
|
4:03 |
1024 x 768 |
16,32 bits |
|
4:03 |
800 x 600 |
16,32 bits |
