J5create JUD530SE USB3.0 Mini Ultra Docking Station
Supports up to 2048x1152 Resolution, HDMI, VGA, GigLAN, USB3.0, Microphone, Speaker, USB3.0 Charging(2), USB3.0 Host

No Longer Available

Part Number:

409442

(?) Brand:

J5create

Manuf No:

JUD530SE

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Date Added:

15/7/2016

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

JUD530SE, J5JUD530SE, J5-JUD530SE

Overview

JUD480

The j5create JUD530 USB 3.0 mini ultra station enables you to add a 2nd monitor instantly via HDMI or VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone, etc. to your laptop with a single USB3.0 cable. It is the perfect solution for expanding your Ultrabook or MacBookÂ® into a full sized workstation.

JUD480

JUD500

Specifications

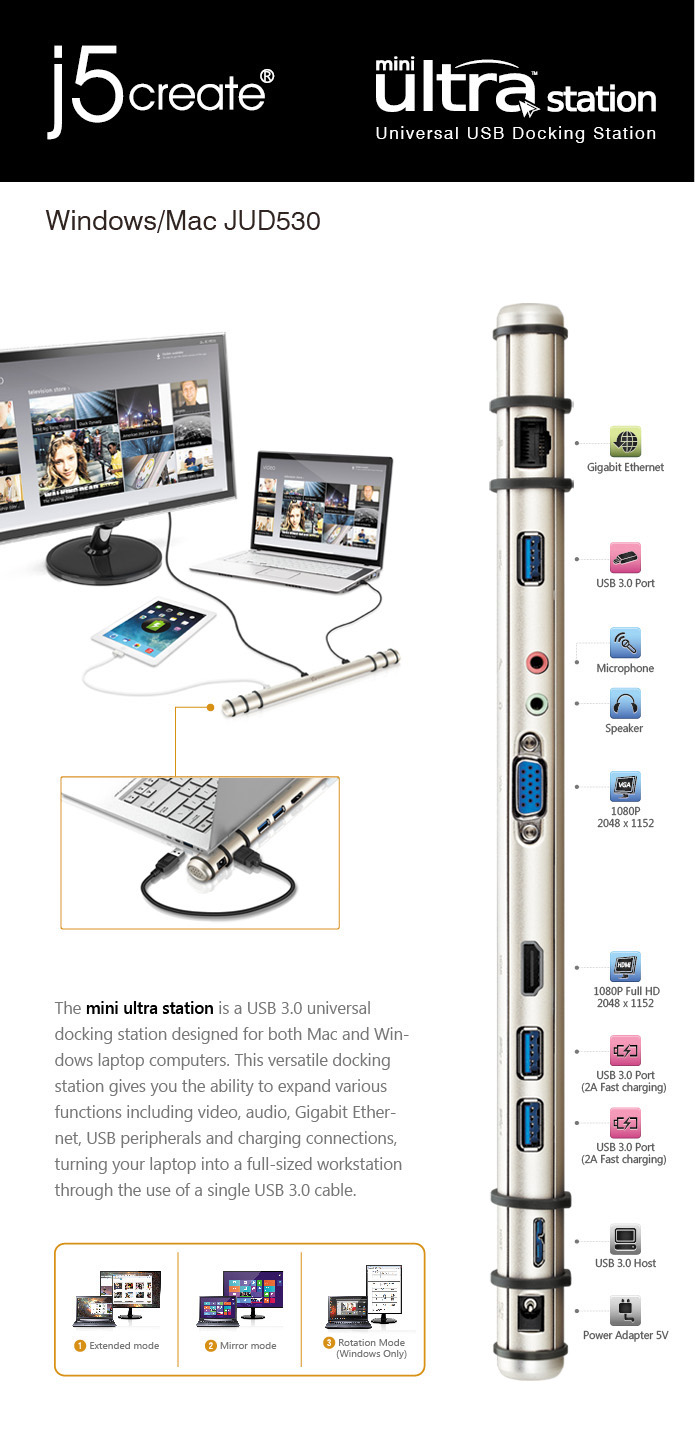

Interface
Host Interface	USB 3.0 Micro B Female connector
Cable	USB 3.0 Micro B to Type A
Video Interface	VGA-DB 15 pin Female Connector
Video Interface	Standard HDMI Female Connector (with Audio)
Ethernet	RJ-45 Female Connector (Gigabit Ethernet)
USB Port	USB 3.0 Female Connector x 3
	USB 3.0 Battery Charging V.1.2 Charging port x 2
	(Two ports that provide additional power of up to 2A for fast-charging an iPad,
	smart phones, tablet or similar products.)
Audio Jack	Microphone: 3.5 mm stereo audio in
Audio Jack	Speaker: 3.5 mm stereo audio out
Power
Power Adapter	Input: AC 100-240V, 50~60 Hz
Power Adapter	Output: DC 5V/3A (US/JP/TW) or 5V/4A (EU/UK/AU/CN)
Power Mode	Bus-Powered & Self-Powered
Functions
Display	Video Playback:1080P
	Display resolution: 2048 x 1152 @ 32bit
	Display Modes: Primary, Extended, Mirror
	Display Rotation: 0, 90, 180, 270
Ethernet	Transfer Rate:
	1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
	IEEE:
	IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
	Modes:
	- Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
	- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
	- Supports Jumbo Frame
	- Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

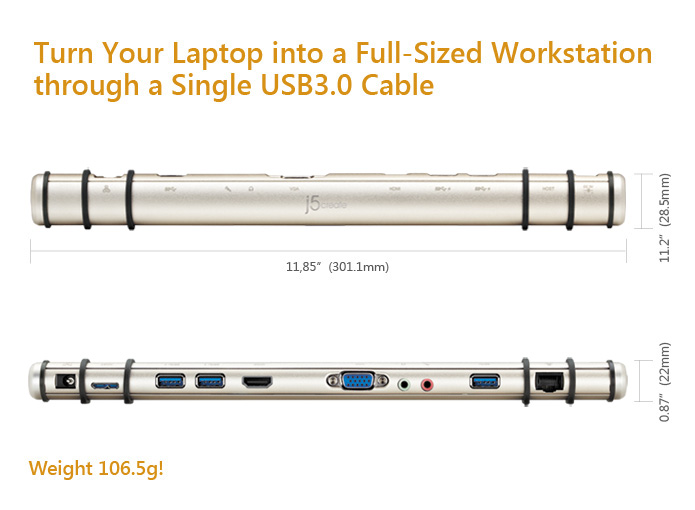

Physical Specification
JUD530
Dimensions	Main body: 301.1(W)x 28.5(H)x22 (D) mm
Dimensions	Cable length: 60cm
Weight	Approximately 106.5g
Housing Material	Aluminum

Resolutions and Color Depth

Aspect Ratio	Resolution	Color Depth
Wide Screen Display
16:09	2048 x 1152	16,32 bits
16:10	1920 x 1200	16,32 bits
16:09	1920 x 1080	16,32 bits
16:10	1680 x 1050	16,32 bits
16:09	1600 x 900	16,32 bits
16:10	1440 x 900	16,32 bits
16:09	1360 x 768	16,32 bits
16:10	1280 x 800	16,32 bits
15:09	1280 x 768	16,32 bits
16:09	1280 x 720	16,32 bits
Standard Display
4:03	1600 x 1200	16,32 bits
4:03	1400 x 1050	16,32 bits
5:04	1280 x 1024	16,32 bits
4:03	1280 x 960	16,32 bits
4:03	1152 x 864	16,32 bits
4:03	1024 x 768	16,32 bits
4:03	800 x 600	16,32 bits

Environments

Microsoft Windows 10 / 8.1 / 8 / 7 / XP (32-bit or 64-bit)
Mac OS X 10.11 / 10.10 / 10.9 / 10.8 / 10.7 / 10.6 Compatible
Available port (USB 3.0 is recommended)

Minimum System Requirements

CPU: Intel i3 Dual Core 1.5 GHz/ Intel Atom "Bay Trail" Quad Core 1.33 GHz RAM: 2 GB or higher
RAM: 2 GB or higher
Windows XP users: "Windows Media Player" is recommended
Windows XP & MAC USB 2.0 for "office applications only" is recommended

Note for Video Player:

*Windows XP users: "Windows Media Player" is recommended for video playback

*Windows XP users & MAC users: Some Windows XP & MAC products are not supported by USB 3.0 at this time, therefore we suggest USB 2.0 for 'office applications' only; Video Playback is not recommend due to USB 2.0 bandwidth limitations causing limited video performance.

Package Contents

mini ultra station (JUD530) USB 3.0 cable
USB 3.0 cable
Power Adapter (5V/3A or 5V/4A)
Driver CD with E-manual
Quick Installation Guide
