All stock codes associated to this product
SAED65E, SA-ED65E, MNS-SA-ED65E
Overview
Professional digital signage with superior image quality, touchscreen
compatibility and energy-efficient technology.
Key Highlights
16/7 operation
Direct
LED
Glare
-
Crisp, clear images on a slim, large-sized screen with
d-led BLU technology
-
An easy-to-install touch overlay option which encourage
viewer interaction
-
Slim profile and side-type connectivity design for space
efficiency
Features

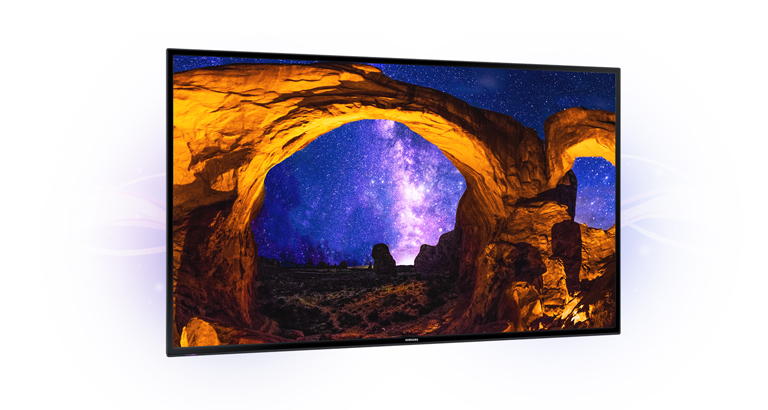

Captivate your audience with an immersive viewing
experience
Entice your audience with crisp, clear FHD images and realistic color on a
sleek display with Samsung d-LED technology. A sleek, lightweight design and
slim bezels keep your audience focus on your message, helping you capture more
business opportunities. The accompanied pivot function gives you the flexibility
to display your message vertically or horizontally for the optimal view.

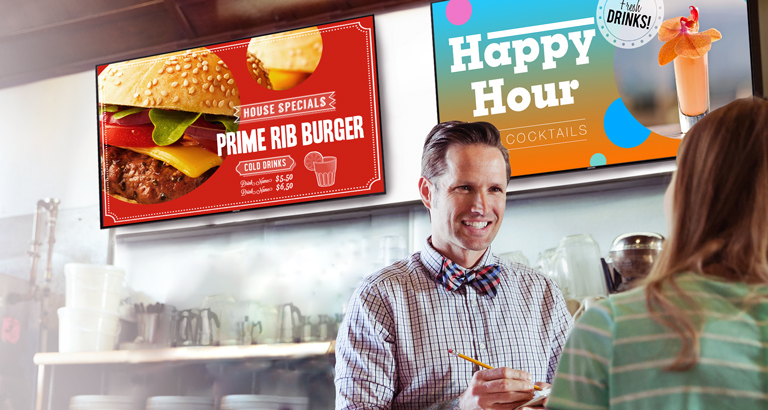

Affordable startup cost and economical operation
Enjoy all the essential functions of digital signage with affordably priced
and energy-efficient Samsung EDE Series. With the slim, light weight design, the
displays are easy and economical to install, helping to reduce startup cost.
Because EDE Series displays require less energy, emit less heat and are durable,
they can also help lower your total cost of ownership (TCO).

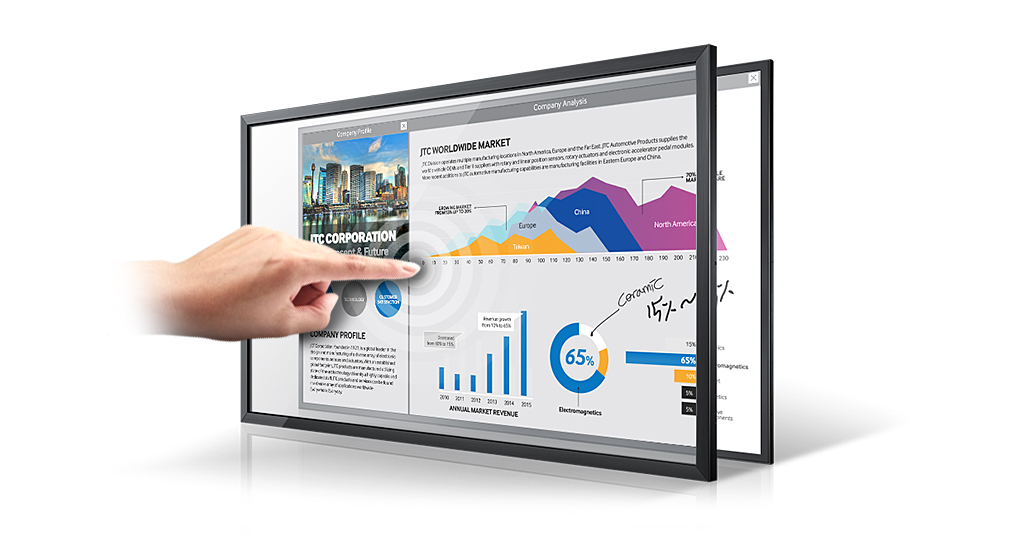

Enhance visual communication for increased productivity
EDE series 65” and 75” displays come with an optional, easy-to-install Touch
Overlay accessory that enriches the user experience and elevates your brand in
any environment. Improved IR touch technology using vertical and horizontal
sensing ensures every inch of the screen provides a realistic multi-touch
experience. The durable 3.2mm thick overlay protects your display from countless
sources of damage including dust to assure long-lasting performance.
Specifications
|
Panel |
|
|
Diagonal
Size |
65" |
|
Type |
60Hz LED
BLU |
|
Resolution |
1920*1080 (Full
HD) |
|
Pixel
Pitch(mm) |
0.744(H)
0.744(V) |
|
Active Display
Area(mm) |
1428.48(H) x
803.52(V) |
|
Brightness(Typ.) |
400
nit |
|
Contrast
Ratio |
4000:01:00 |
|
Viewing
Angle(H/V) |
178:178 |
|
Response
Time(G-to-G) |
6ms |
|
Display
Colors |
10bit Dithering -
1.07Billion |
|
Color
Gamut |
70% |
|
Haze |
N/A |
|
|
|
Display |
|
|
Dynamic
C/R |
Mega. DCR (AV
Mode) |
|
H-Scanning
Frequency |
30 ~
81kHZ |
|
V-Scanning
Frequency |
48 ~
75HZ |
|
Maximum Pixel
Frequency148.5MHz |
|
|
|
|
Sound |
|
|
Speaker
Type |
Built in Speaker(10W +
10W) |
|
|
|
Connectivity |
|
|
Input |
|
|
RGB |
Analog D-SUB,
DVI-D |
|
Video |
CVBS, Component,
HDMI |
|
Audio |
Stereo mini
Jack |
|
Usb |
USB
Player |
|
|
|
Output |
|
|
RGB |
N/A |
|
Video |
N/A |
|
Audio |
Stereo mini
Jack |
|
Power
Out |
N/A |
|
External
Control |
RS232C(in/out) thru
stereo jack |
|
External
Sensor |
Yes |
|
Tuner |
N/A |
|
|
|
Power |
|
|
Type |
Internal |
|
Power
Supply |
AC 100 - 240 V~ (+/- 10
%), 50/60 Hz |
|
|
|
Power
Consumption |
|
|
Max[W/h] |
253 |
|
Typical[W/h] |
180 |
|
BTU(Max) |
862.73 |
|
Sleep
mode |
less than
0.5W |
|
Off
mode |
less than
0.5W |
|
|
|
Mechanical
Specification |
|
|
Dimension
(mm) |
|
|
Set |
1467.4x848x56.2 |
|
Package |
1600 x 980 x
287 |
|
|
|
Weight
(kg) |
|
|
Set |
27.4 |
|
Package |
35.4 |
|
VESA
Mount |
400*400mm |
|
Protection
Glass |
N/A |
|
Stand
Type |
Foot Stand
(Optional) |
|
Media Player Option
Type |
N/A |
|
Bezel Width
(mm) |
18.0mm(Bottom
23.5mm) |
|
|
|
Operation |
|
|
Recommended Usage
Hours |
16/7 |
|
Operating
Temperature |
0.0 ~
40.0 |
|
Humidity |
10.0
% ~ 80.0 % |
|
|
|
Feature |
|
|
Key
Features |
LED
LFD |
|
Special
Features |
Built in Speaker(10W +
10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out , 1 D-Sub
& 1 HDMI, USB Player |
|
|
|
Internal
Player |
|
|
Processor |
N/A |
|
On-Chip Cache
Memory |
N/A |
|
Clock
Speed |
N/A |
|
Main Memory
Interface |
N/A |
|
Graphics |
N/A |
|
Storage
(FDM) |
N/A |
|
Multimedia |
N/A |
|
IO
Ports |
N/A |
|
Operating
System |
N/A |
|
|
|
Certification |
|
|
Safety |
UL(USA) : cUL60950-1,
CSA (Canada):cUL60950-1, TUV (Germany) : IEC60950-1/EN60950-1, NEMKO
(Norway): IEC60950-1/EN60950-1, CB (Europe) : IEC60950-1/EN60950-1, KC
(Korea) : K 60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) :
PSB+IEC60950-1 , EAC (Russia) : EAC+IEC60950-1 , NOM (Mexico ) :
NOM-001-SCFI-1993 , IRAM (Argentina ) : IRAM+IEC60950-1 , SASO (Saudi
Arabia ) :SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, INMETRO
(Brazil):INMETRO+IEC60950-1, BSMI(Taiwan):BSMI+IEC60950-1,
RCM |
|
EMC |
FCC (USA):Part 15,
Subpart B Class A, CE (Europe) :EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003, VCCI (Japan): VCCI V-3 /2010.04 Class A ,
KCC/EK (Korea):KN13 / KN20, BSMI (Taiwan) : CNS13438 (ITE EMI) Class A /
CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) , C-Tick
(Australia) : AS/NZS CISPR22:2009 , CCC(China) :GB9254-2008 GB17625.1-2012
, GOST(Russia/CIS):GOST R 51317 Series,GOST
22505-97.EN55022:2006+A1:2007.EN55024:1998+A1:2001+A2:2003 |
|
Environment |
N/A |
|
|
|
Accessory |
|
|
Included |
Quick Setup Guide,
Warranty Card, D-Sub cable, Power Cord, Remote Controller,
Batteries |
|
|
|
Optional |
|
|
Stand |
STN-L6500E |
|
Mount |
WMN6575SD |
|
Specialty |
CML450D (Ceiling
Mount) |
|
|
|
Media
Player |
|
|
Media
Player |
|
|
Media
Player |
SBB
(Optional) |
