Amazing Wireless Coverage
Each UniFi AP-Outdoor model supports up to 300 Mbps with 2x2 MIMO technology and offers an outdoor range of up to 183 m. A secondary Ethernet port can be used for bridging.
Scalability for Thousands
With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller.

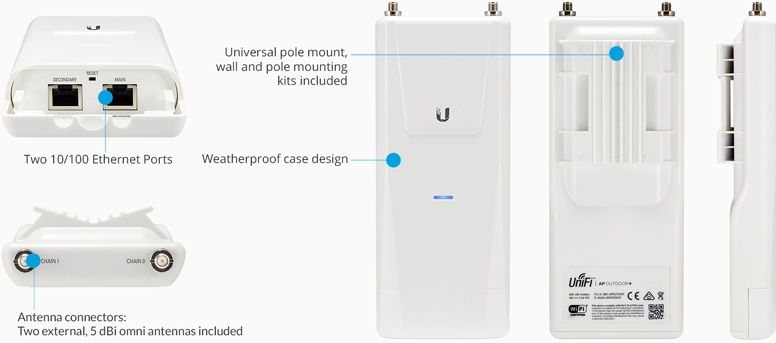

Built to Last Outdoors
The durable, weatherproof case withstands outdoor conditions, including wind, rain and snow.
Versatile Antenna Options
Attach the included external antennas or connect the UniFi AP-Outdoor to a dual-polarity antenna - an airMAX Sector or Omni - to increase gain.
No Software Fees
The UniFi Controller software is bundled with the UniFi AP hardware at no extra chargre - no separate software, licensing or support fee.
Scalable Enterprise Wi-Fi Management
The UniFi Controller software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.
Advanced Software Features
Intuitive and Robust Configuration, Control and Monitoring
Instantly provision and configure thousands of UniFi APs. Quickly manage system traffic.

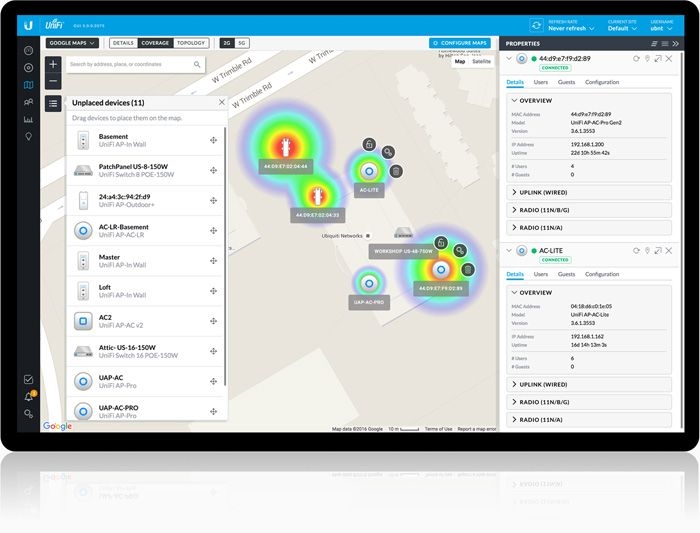

Custom Maps and Google Maps
Upload custom map images or use Google Maps for a visual representation of your wireless network.
WLAN Groups
Take advantage of WLAN groups for flexible configuration of large deployments and enable wireless connection between APs to extend range.

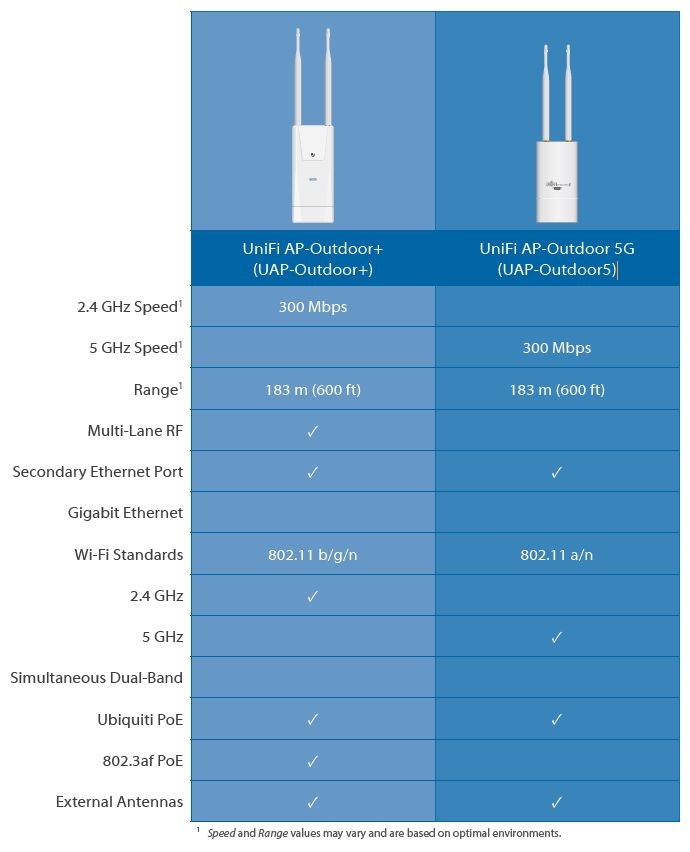

Outdoor Model Comparison Chart
Specifications
|

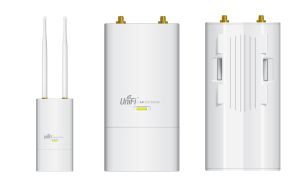

UniFi AP Outdoor+
|
|
Dimensions
|
205 x 83 x 37 mm
(8.07 x 3.27 x 1.46 in)
|
|
Weight
|
250 g (8.82 oz)
without Antennas 294 g (10.37 oz) with Antennas
|
|
Networking Interface
|
(2) 10/100 Ethernet
Ports
|
|
Buttons
|
Reset
|
|
Operating Band
|
2.4 GHz
|
|
Antennas
|
(2) External 5 dBi
Omni Antennas Included
191 mm (Length), 13
mm (Diameter)
|
|
Wi-Fi Standards
|
802.11 b/g/n
|
|
Power Method
|
Passive Power over
Ethernet (48V), 802.3af Supported
|
|
Power Supply
|
48V, 0.5A PoE
Adapter (Included)
|
|
Maximum Power Consumption
|
8W
|
|
Maximum TX Power
|
28 dBm
|
|
BSSID
|
Up to Four Per Radio
|
|
Power Save
|
Supported
|
|
Wireless Security
|
WEP, WPA-PSK,
WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
|
Certifications
|
CE, FCC, IC
|
|

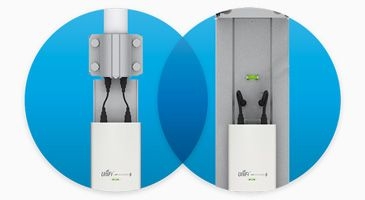

Mounting
|
Wall/Ceiling (Kits
Included)
|
|
Operating Temperature
|
-30 to 65° C (-22 to
149° F)
|
|
Operating Humidity
|
5 - 95%
Noncondensing
|
|
Advanced Traffic Management
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate Limiting
|
|
Guest Traffic Isolation
|
Supported
|
|
WMM
|
Voice, Video, Best Effort,
and Background
|
|
Concurrent Clients
|
100+
|
|
Supported Data Rates (Mbps)
|
|
Standard
|
Data Rates
|
|
802.11n
|
6.5 Mbps to 300 Mbps
(MCS0 - MCS15, HT 20/40)
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24,
36, 48, 54 Mbps
|
Networking
