Overview

Features

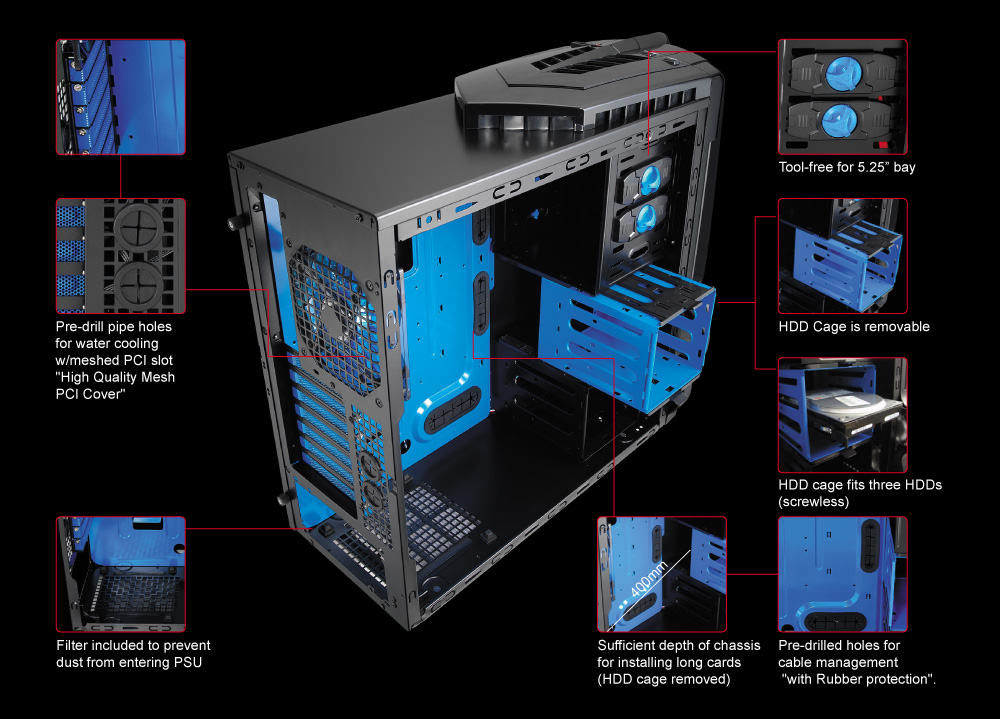

  • High Performance "Mid-Tower" for gamers and enthusiasts.
  • Solidly constructed- The chassis is solidly constructed by 0.6mm SECC Japanese steel .
  • Unique and Attractive Internal Color Combination- Not only the chassis is beautifully finished in All Black (both interior and exterior), the PCI covers, MB Plate, Removable HDD cage and screw-less kits are high-lighted in Blue (Syclone II Black) or Red (Syclone II Red) colors to make the case UNIQUE and stands out from the others.

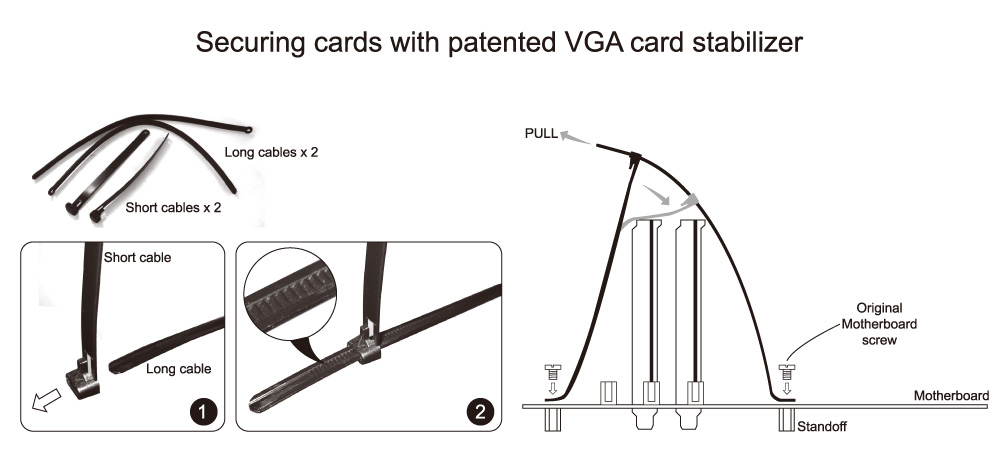

  • High-End Graphic Card Support (up to 400mm)- Supports Longer high-end VGA cards up to 280mm. The Middle HDD Cage is removable Once the middle HDD cage is removed the chassis can support VGA cards up to 400mm.
  • High Expandability- Supports 4 x 5.25" external devices, 6 x 3.5" HDDs (internal) and 1 x 3.5" external device (with the converter) such as a Floppy drive or a Card Reader.
  • Ease of Installation- New "Easy-Install" screw-less kits are included for the 5.25" devices and HDDs. The HDD cage is also rotated 90 degrees for easy installation of HDDs.
  • Easy Access Top I/O Ports- 2 x USB3.0, Audio/Mic (AC 97 + HD audio) and E-SATA ports are located on the top panel for easy access.
  • Smart Cable Management- "Cable routing is pre-drilled on the MB so users can hide cables behind the MB tray. The pre-drilledholes are also protected by top quality rubber to prevent cuts or damages to the cable from sharp edges".
  • Dust Protection- Includes removable bottom PSU dust filters to prevent dust entering your computer.
  • Mesh PCI cover- Includes Blue (Syclone II Black) or Red Metal Mesh PCI covers (Syclone II Red) for better ventilation.
  • Bottom PSU position- the bottom PSU location enables PSUs to suck in cold air and provide better air flow for your system.
  • Water-cooling Support- water-cooling holes are pre-drilled to support water-cooling systems.
  • Easy Cooler Assembly- CPU hole is pre-drilled on the MB plate for simple cooler assembly and removable.
  • Transparent Side Window with the option to install 1 x 12cm or 14cm fans !!

INSIDE

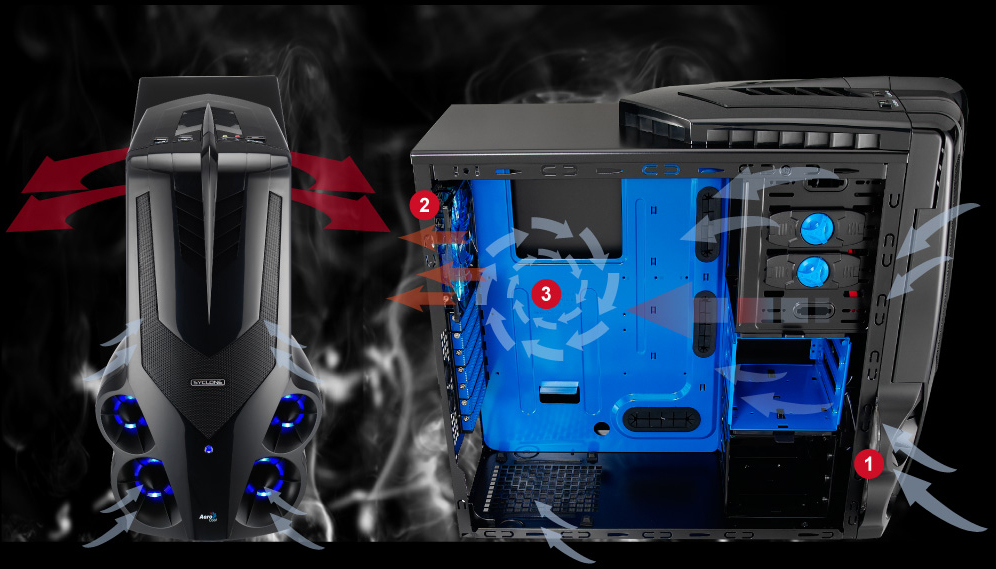

AIRFLOW

Superb Airflow - install up to 3 fans !!!

1. Front - 1 x 14cm fan (included)

2. Back - 1 x 12cm BLUE LED fan (included)

3. Side - 1 x 12 or 14 cm fan (optional)

Specifications

Case Type

Middle Tower

Chassis Dimensions

480 mm(H) x 270 mm(W) x 525 mm(D)

Carton Dimension

515 mm(H) x 312 mm(W) x 578 mm(D)

Net Weight

6.88Kg

Gross Weight

8.8Kg (Retail box included)

Material

SECC 0.6mm

Motherboards

ATX / Micro-ATX

Drive Bays

Accessible -

4x5.25" ODD

1x3.5" (Converted from one 5.25" bay)

Hidden -

6x3.5" HDD

Expansion Slots

7 Slots

Max length space available for PCI slots

280/400 mm

I/O Ports

2 x USB3.0 / e-SATA / Mic & headphone (AC97 & HD audio)

Height limit for CPU coolers ( Without side fan )

158mm

Inside this packaging

4pcs for PSU Screw / 17pcs for M/B & 3.5"HDD Screw / 20pcs for ODD & FDD & 2.5"HDD Screw / 1 pcs for M/B & 3.5"HDD Screw / 9Set for M/B / 6Set for M/B

Front

Rear (Quad Blue LED's)

Fan

140 x 140 x 25mm

120 x 120 x 25mm

Rated voltage

12V

12V

Starting voltage

< = 6V

< = 9V

Power consumption

4.32W

3.6W

Rated current

0.36A

0.30A

Speed

1500 RPM 10%

1500 RPM 10%

Air Flow (CFM)

96.5 CFM (Max)

82.6 CFM (Max)

Air pressure

1.069mm H2O

1.273mm H2O

Noise (dBA)

29.6 dB-A

26.5 dB-A

MTBF

100000 hours

100000 hours
