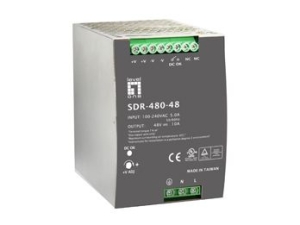

Level 1 POW-4860 DIN-Rail Industrial Power Supply - 48VDC/480W
  • Universal AC Input, Short Circuit, Overload/Over Voltage Protection, DC OK Relay, Active PFC, UL508, PoE Ready, Fanless

IMG 1 of 1
No Longer Available
Part Number:
412203
(?) Brand:
Level 1
Manuf No:
POW-4860
POW4860
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/9/2016
Details Files Finance Images & Video
All stock codes associated to this product
POW4860, POW-4860, 3269303, 4015867183656

Overview

The POW-4860 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -10 to 60 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment. Moreover, this power unit has been designed specifically for use with Infinity Industrial PoE Ethernet series, also it meets the requirements for both PoE and PoE Plus as well

Features

  • Universal AC Input at Full Range
  • Short Circuit, Overload / Over Voltage Protection
  • Fanless Design
  • Supports DIN-rail installation
  • DC OK Relay Contact
  • Active PFC Function
  • 100% Full Load Burn-in Test
  • UL508 approval

Specifications

Output DC                             48V

Output Current                     10A



Output Power                       480W



Input Voltage                        90-264VAC or 124-370VDC



MTBF                                      12.8 years



Dimension & Weight            85.5 x 125.2 x 128.5mm @ 1.6kg



Operation Temperature       -10 to 60 Celsius



Operation Humidity             20 to 95% RH Non-condensing



Safety Approval                    IEC60068, EN60950-1, UL60950-1, EN55011,

                                              EN55022 (CISPR22) Class B, EN61000-3-2,

                                              EN61000-3-3, EN61000-4-2/3/4/5/6/8/11,

                                              EN61000-6-2, EN61204, EN55024







No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
