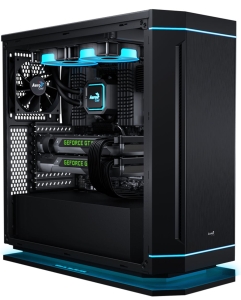

AeroCool DS230 Mid Tower Case - NO PSU, Black
  • USB 3.0(2), USB 2.0(2), Passive Noise Cancelling, LED Lighting, PWM Mode, ATX

IMG 1 of 1
No Longer Available
Part Number:
412422
(?) Brand:
AeroCool Web Site
Manuf No:
Shipping Weight:
11 KG (Includes product packaging)
Estimate Shipping
Date Added:
26/9/2016
Details Files Images & Video
All stock codes associated to this product
, AER4713105958331, AER-4713105958331

Overview

PNC Passive Noise Cancelling

Noise dampening material are installed on front , top , side panels to ensure maximum reduction of noise induced by fans and other working components.

LED LIGHTING

Choice to select from 7LED colors & 3 Lighting modes

Image not available    Image not available     Image not available

Light Modes

PWM MODE

Integrated PWM fan control with LED effect. Support up to 7 fans. Base on the signal from motherboard.

SPACIOUS INTERIOR

Specifications

Model Name

DS 230

Case Type

Mid Tower

Steel Thickness

0.7mm

Motherboards

ATX / micro ATX / mini-ITX

Case Dimensions

230 x 475 x 477.8mm (W x H x D, overall)

3.5 Drive Bays

2 (Internal)

2.5 Drive Bays

3 (Internal)

Expansion Slots

7

GPU Clearance

388 mm / 413 (without front fan)

CPU Clearance

Support Max. Height of 170 mm For CPU

I/O Ports

2 x USB2.0 + 2 x USB3.0 + HD Audio & Mic.

Air Cooling System

Front : 3 x 120mm or 2 x 140mm (Optional)

Top: 2 x 120mm or 2 x 140mm (Optional)

Rear : 1 x 120mm fan (PWM fan Included)

Water Cooling System

Front : 2 x 120mm or 3 x 120mm or 2 x 140mm (Optional)

Top: 2 x 120mm or 2 x 140mm (Optional)

Rear : 1 x 120mm (Optional)

Net Weight

8.2Kg / 9.7Kg (Gross Weight)

Power Supply

ATX PSU (Optional)

COOLING SYSTEM

DS 230

[ Rear ]

Black Edition

Fan

120 x 120 x 25 mm

Rated voltage

12V

Operating Voltage Range

7~13.2V

Starting voltage

7V

Power consumption

1.44W+10%Max

Rated current

0.16A+10%Max

Speed

600-1800 +-10% RPM

Air Flow (CFM)

53.4CFM

Air Pressure

1.48mm-H2O

Noise (dBA)

34.1dBA

MTBF

30,000 hours

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (AeroCool) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
