Overview





Specifications

  • Super cube gaming case solidly built with 0.7mm Steel.
  • Unique side bar design to take the strength of chassis to the next level.

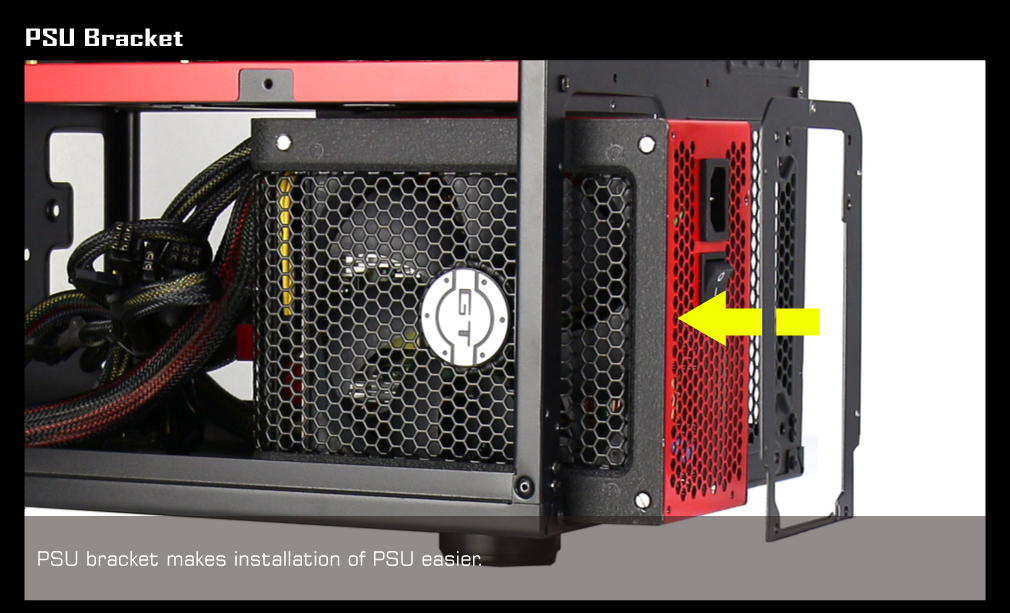

  • PSU bracket makes installation of PSU easier.

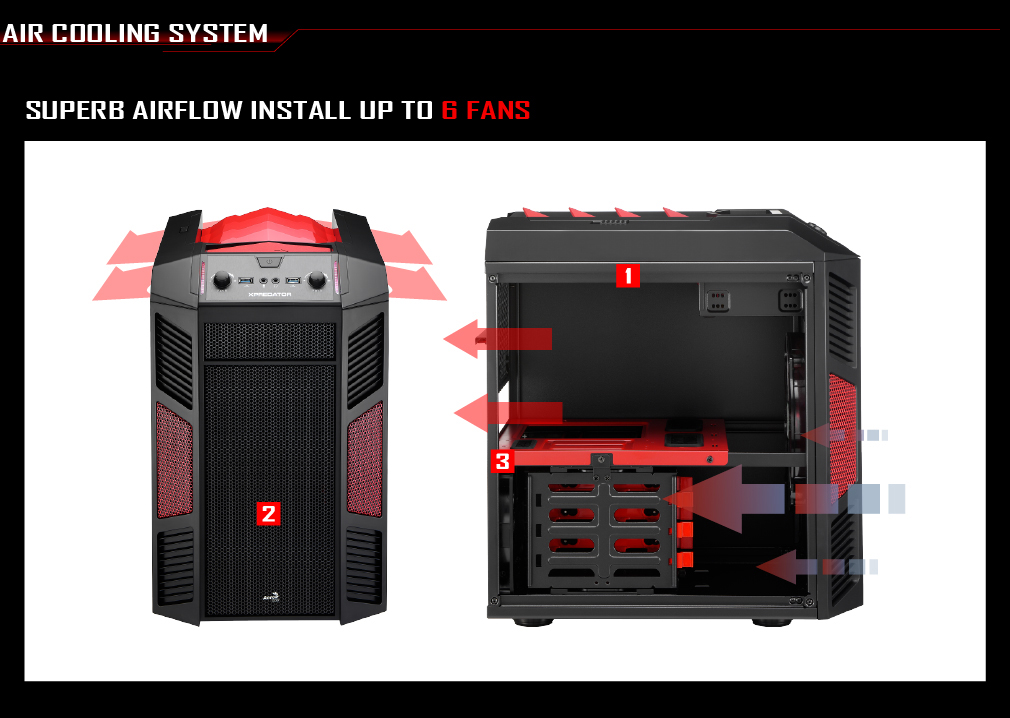

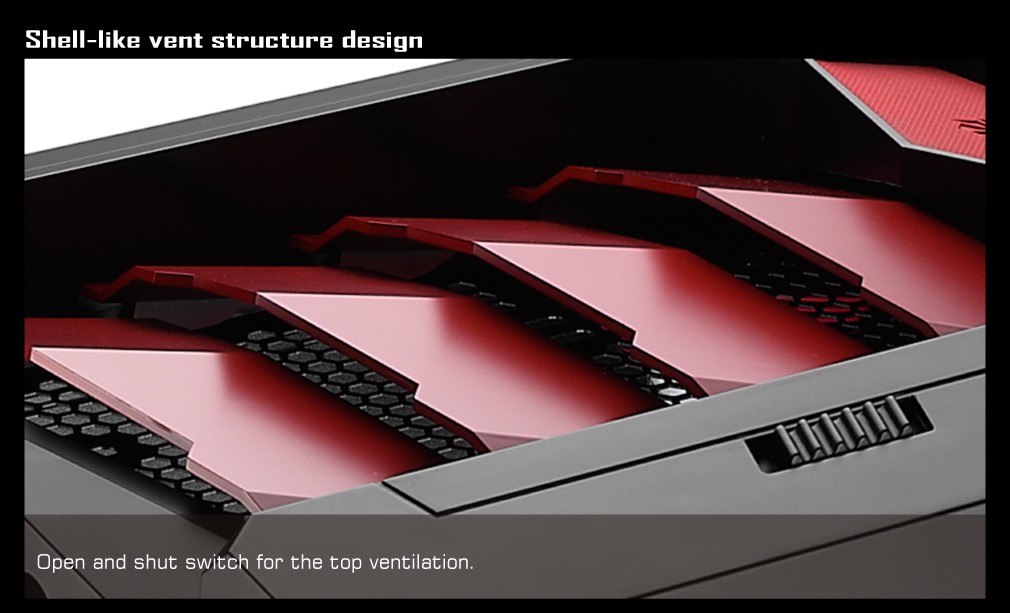

  • Largely increased airflow front and top panels.
  • Completely removable ODD rack for ease of installing water cooling system.

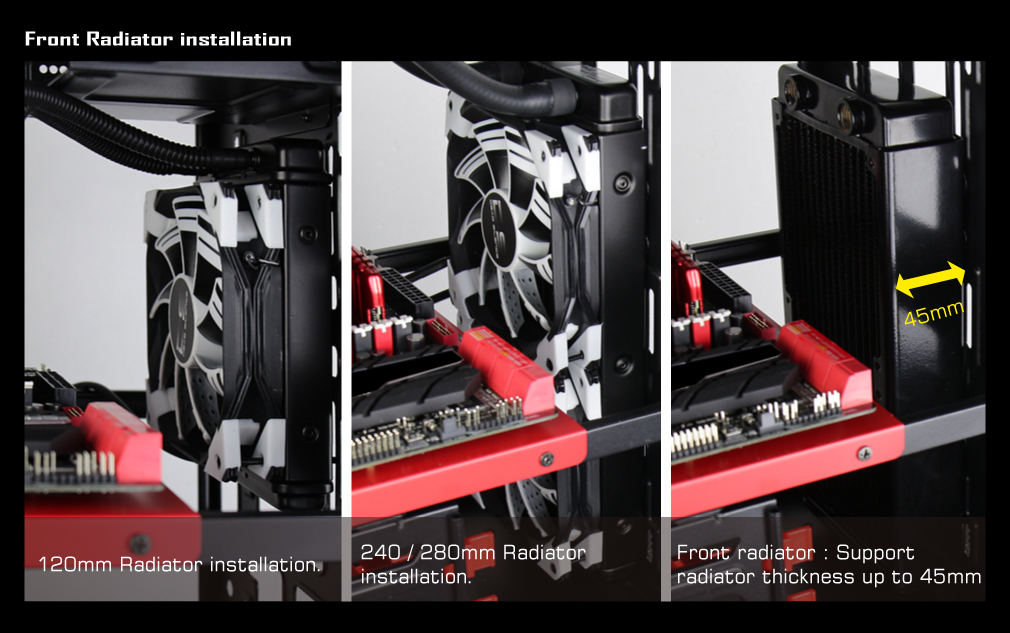

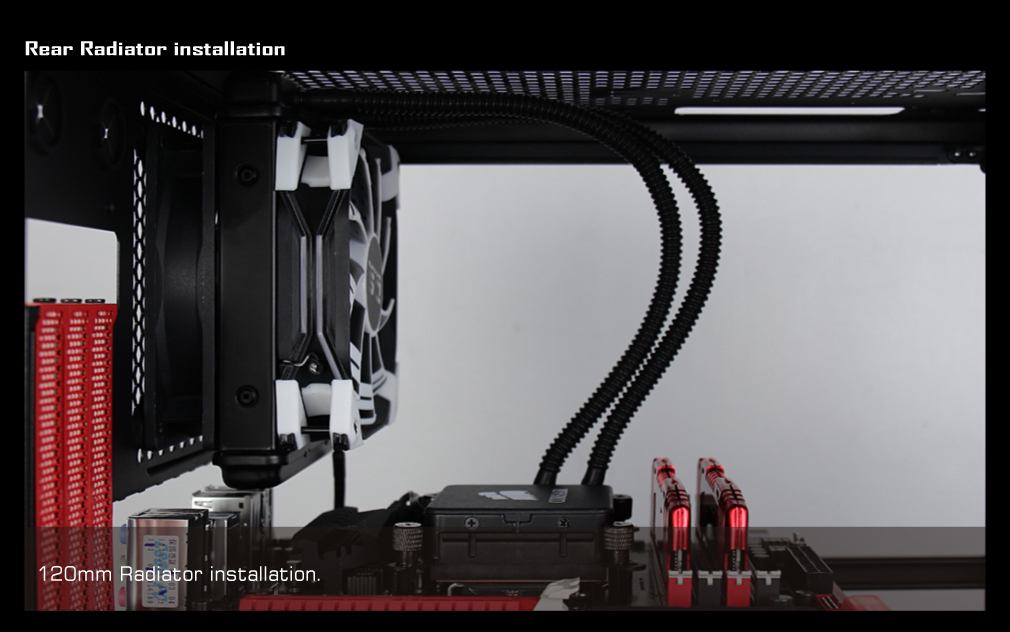

  • Supports DUAL 240/280mm water cooling radiators.
  • Pre-drilled holes for cable management to reduce cable mess.
  • Pre-drilled holes for water cooling tubes.

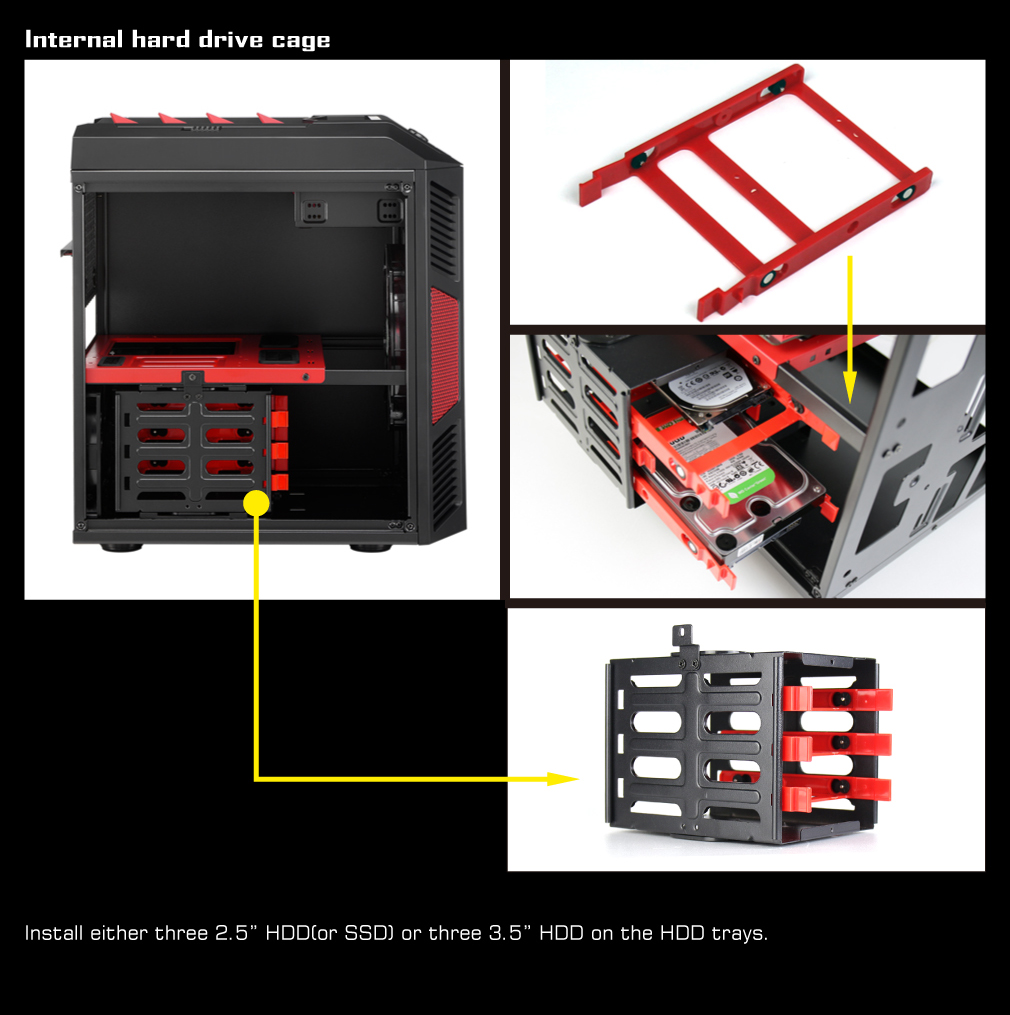

  • Supports internal 3x3.5"HDD (also compatible with 2.5) and 2x2.5"HDD/SSD under ODD rack.

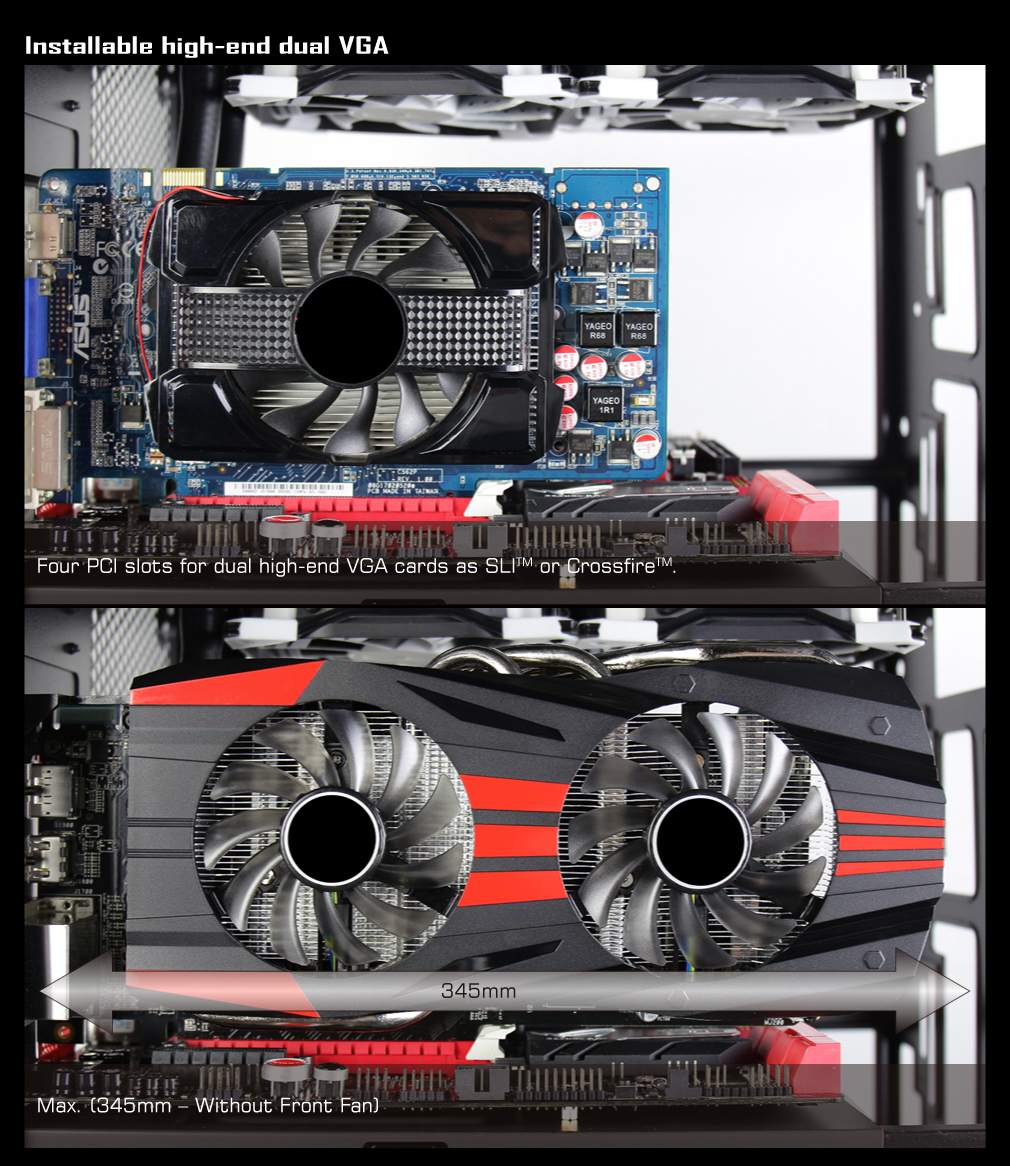

  • Supports dual high-end graphic cards up to 320mm ( 345mm when front 20cm fan removed).
  • Supports max. CPU cooler height of 187mm.
  • Supports all PSU lengths.
  • Super-silent 20cm fan and 14cm fan included for front and rear cooling.

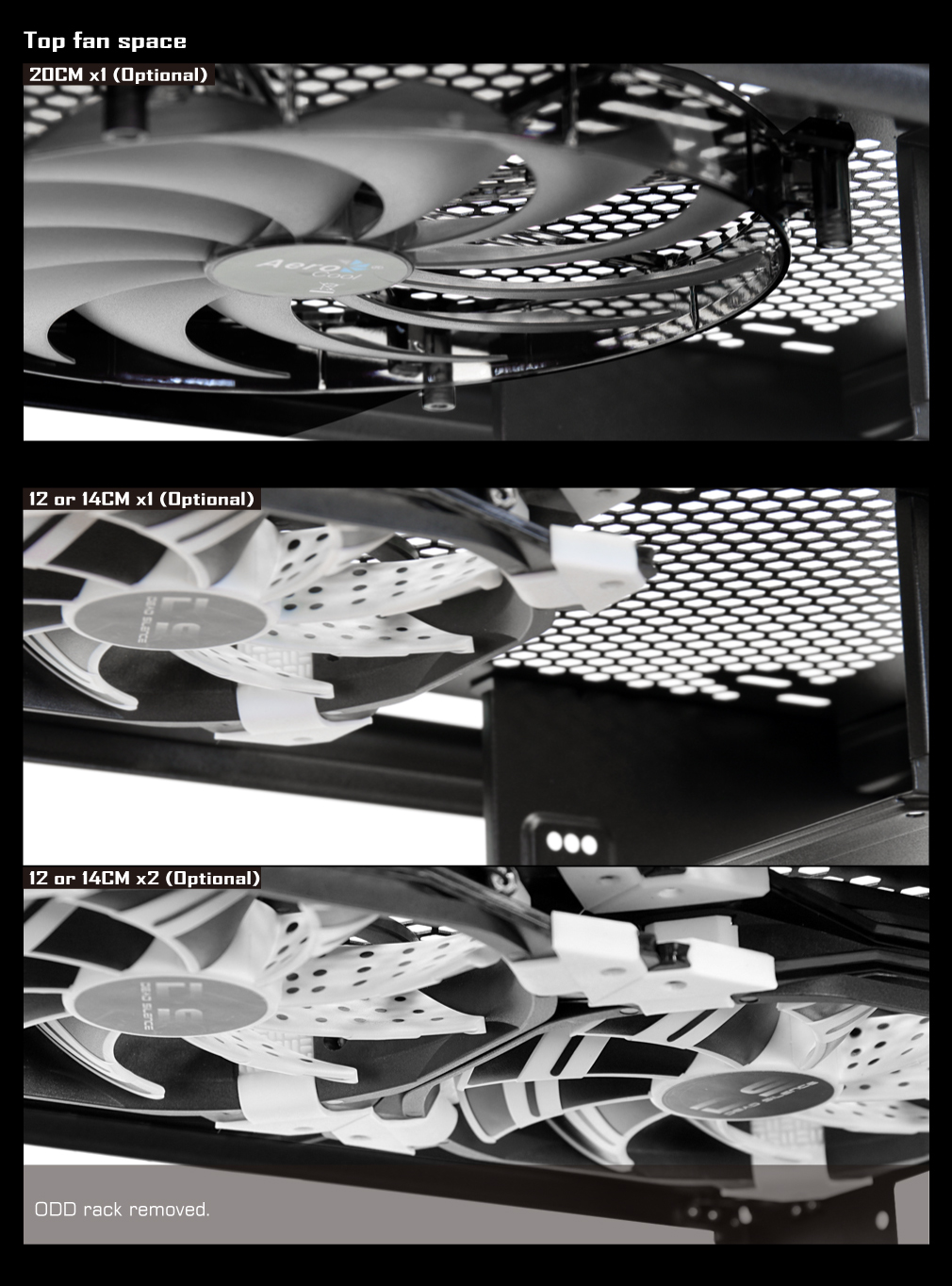

  • Supports up to 1 x 20cm, 2x12cm, or 2x14cm fans on top panel.Supports up to 1x 20cm, 2x12cm or 2x14cm fans on front panel ( 1x20cm pre-installed).

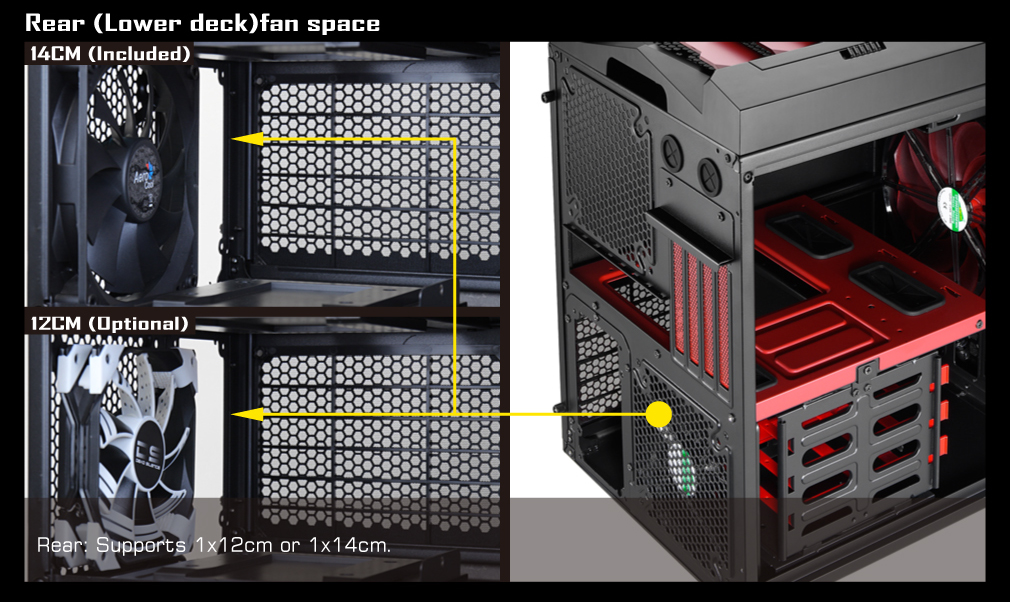

  • Supports up to 2x12cm or 2x14cm fans on rear panel (1x 14cm pre-installed).

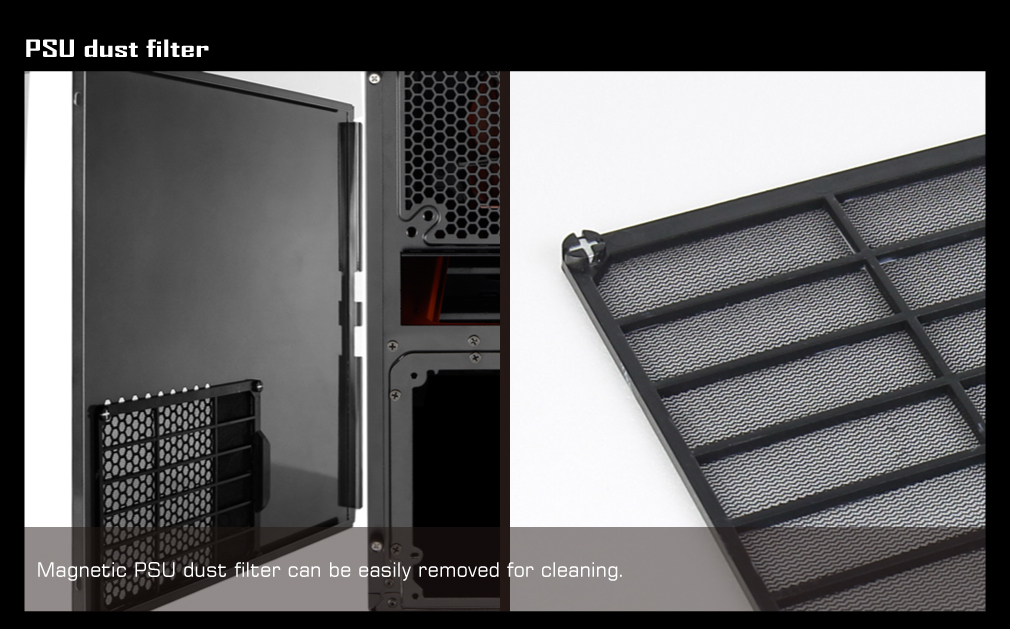

  • Magnetic PSU dust filter can be easily removed for cleaning.
  • HDD rack is double-secured by 2 screws to ensure the precious data dont get damaged during transportation.

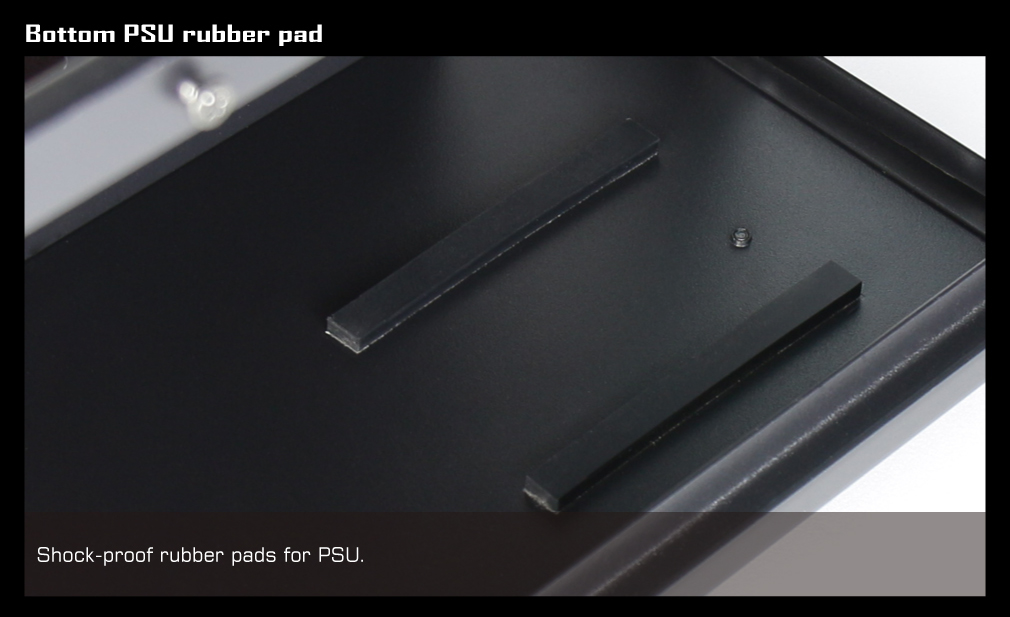

  • Shock-proof rubber pads for 3.5" HDDs and PSU.
  • 2x USB3.0/ HD Audio & MIC.
  • Separate fan positions for exhausting the heat from HDD and motherboard.
  • Large Acrylic window for clear viewing.

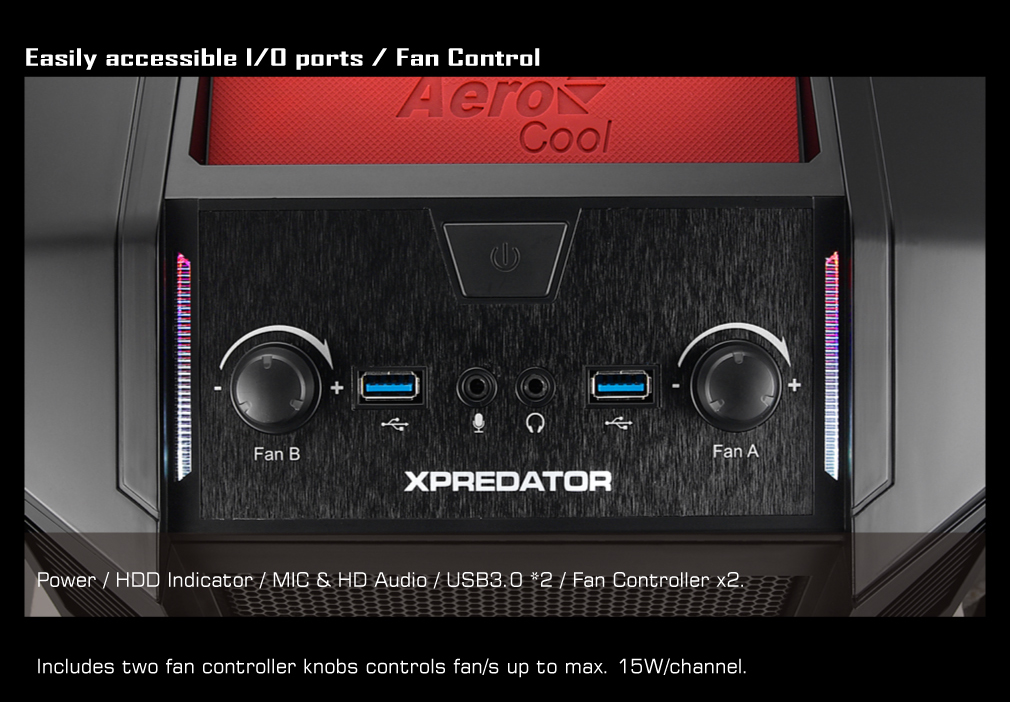

  • Includes fan controller knobs controls fan/s up to max. 15W/channel.

Case Type

Cube Case

Material

0.7mm

Motherboards

Micro ATX/ Mini ITX

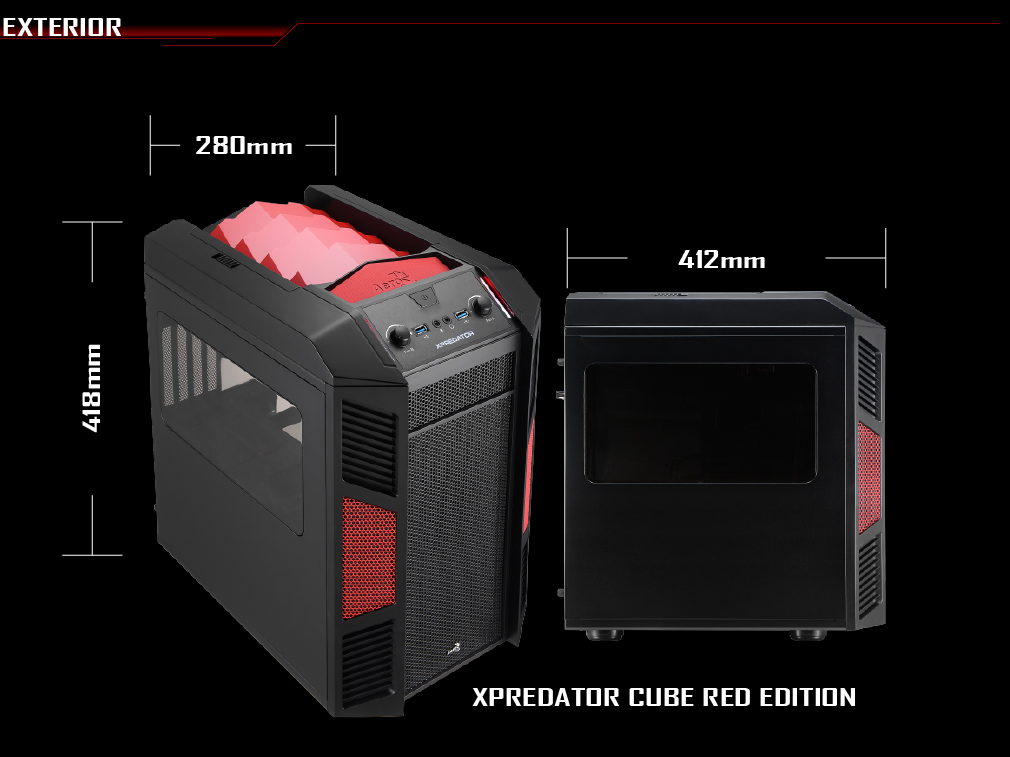

Case Dimensions

280 x 380x 350 mm

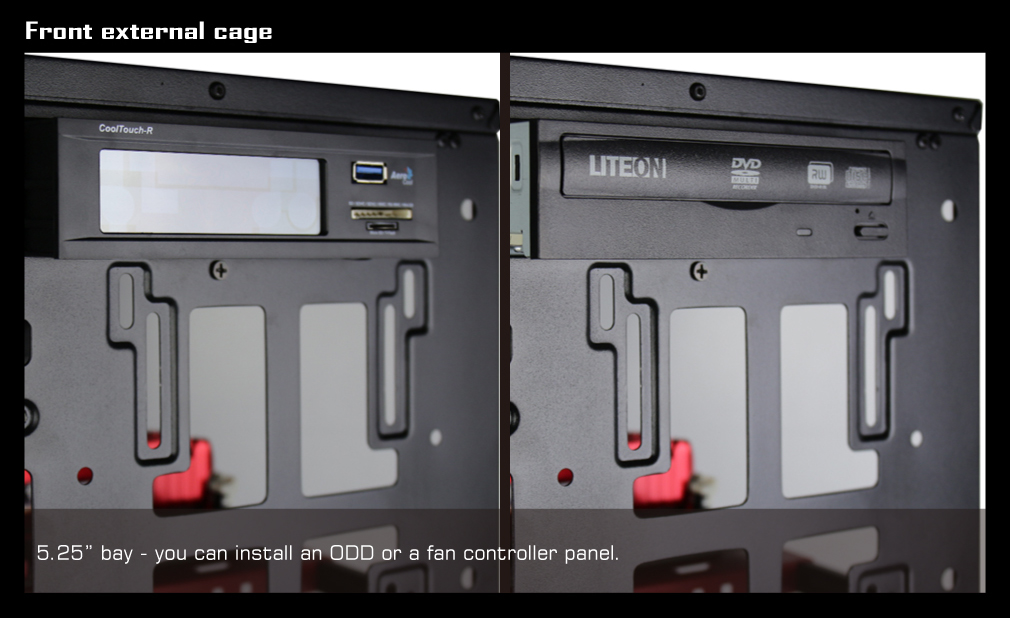

5.25 Drive Bays

1 (Exposed)

3.5 Drive Bays

3 (Hidden, Internal 3.5 HDD Tray)

2.5 Drive Bays

5 (Hidden, Internal 3.5 HDD Tray and Under ODD rack)

Expansion Slots

4 Slots

Max length space available for PCI slots

320mm (345mm Without Front Fan)

I/O Ports

2 x USB3.0 , HD Audio+ MIC, 1 x Fan Controller

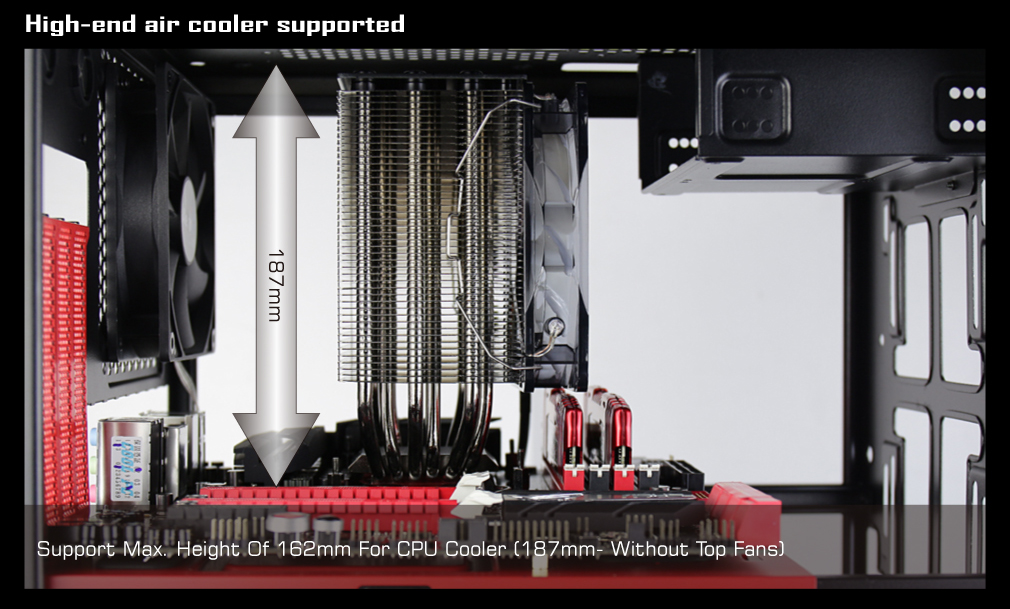

Height limit for CPU coolers

Support Max. Height Of 162mm For CPU Cooler (187mm- Without Top Fans)

Fans

Front : 1 x 200mm Red LED Fan Included

Rear : 1 x 140mm Black Fan Included

Cooling System

Fan

200 x 200 x 20 mm

140 x 140 x 25 mm

Rated voltage

DC 12V

DC 12V

Operating Voltage Range

7~13.2V

7~13.2V

Starting voltage

7V

7V

Power consumption

2.88W+10%Max

1.68W+10%Max

Locked Current

0.26A+10%Max

0.3A+10%Max

Rated current

0.24A+10%Max

0.14A+10%Max

Speed

800+-10% RPM

1200+-200RPM

AirFlow

53.4CFM

59.48CFM

Air Pressure

0.49mm-H2O

0.95mm-H2O

Noise (dBA)

26.5dBA

27.6dBA

MTBF

30,000/hrs

30,000/hrs
