No Longer Available

Part Number:
412558
(?) Brand:
Manuf No:
TK2515
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
TK2515, 783064426961

Overview

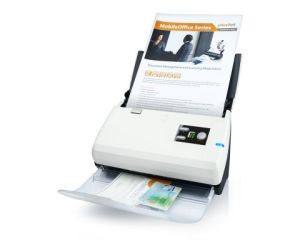

The PS30D scanner deliver speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications. Designed to perform in todays demanding working environments, the PS30D effortlessly handles mission-critical or routine daily scanning tasks, thanks to scanning speeds up to 30ppm in Grayscale (200 &300dpi) and an impressive 25ppm in colour (200dpi).

Features

Easy to perform scanning

The compact and modern PS30D fits easily onto any office desktop. Daily tasks can be performed with one-touch simplicity to boost users productivity, thanks to nine programmable job buttons and user friendly DocAction software. Numerous features such as Auto Color Detection, Auto Rotate for Text Orientation, Multi-image output, Remove Blank Pages, Remove Punch Holes, Remove Background, Denoise, Character Enhancement are included, so theres no need to pre-sort your documents before scanning. Simply load and then let the PS30D do the work for you. An optical resolution of 600dpi, plus all the latest image processing features, ensures outstanding quality results every time.

Robust performance

The PS30D provides one-touch document imaging, perfect for the smaller organization. Capable of handling up to 3,000 scans a day, the PS30D gets through peak workloads effortlessly. A 50 sheet document feeder means large batches of documents can be scanned in one quick scan operation saving you more time.

Reliable scanning

The PS30D solutions from Plustek support workgroup with leading edge document imaging technology. A smooth paper path and Plustek’s Retard Roller Technology provide outstanding reliability across a diverse range of media types. You can handle anything from fragile documents to thick card and embossed media. It’s even possible to scan A3 documents in Folio mode: unique for a scanner of this type. Long paper scanning is also supported, with capability to scan documents up to 2 metres in length. The PS30D is over 40% more energy efficient than other similar scanners, and meets energy star.

Device Features

Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Colour Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders. The PS30D works on Windows, Mac, and Linux

Auto Threshold

Automatically thresholds the current image into a binary black and white image.

Auto Rotate

Automatically rotates document based on the contents of the document.

Auto Crop &Deskew

Automatically straightens and crops image to the document's actual size.

Auto Mode

Automatically detects document color and scans document in color, grayscale or black &white mode

Multi-Image Output

Scans and saves documents in 2 or 3 modes at same time

Color Dropout

Removes red, green or blue color when scanning forms.

Blank Page Removal

Automatically removes blank pages without manual editing.

Specifications

Image Sensor

CIS x 2

Light Source

LED

Optical Resolution

600 dpi

Hardware Resolution

600 x 600 dpi

Scan Modes

Color: Input 48-bitOutput 24-bit

Grayscale: Input 16-bitOutput 8-bit

Black &White: 1-bit

ADF Capacity

1. 50 sheets (A4/ Letter, 70 g/ or 18 Lbs), Max. thickness under 5mm (0.2").

2. 20 sheets (Business Cards).

3. Plastic Card, Max. thickness under 1.2 mm.

Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF )

30 ppm/ 60 ipm (Grayscale mode, 200 dpi, A4 Portrait)

30 ppm/ 60 ipm (B& mode, 200 dpi, A4 Portrait)

25 ppm/ 50 ipm (Color mode, 200 dpi, A4 Portrait)

Note: Results may vary depending upon your scanning application, computer processor and system memory.

Scanning Area (W x L)

Max: 216 x 5080 mm (8.5 x 200)

Min: 13.2 x 13.2 mm (0.52 x 0.52)

Acceptable Paper Sizes (W x L)

Max: 216 x 5080 mm (8.5 x 200)

Min: 63.5 x 50.8 mm (2.5 x 2)

Acceptable Paper Weight (Thickness)

50 to 105 g/ (14 to 28 Lbs)

Daily Duty Scan ( Sheets )

3,000

Roller Lifetime (Scans)

100,000

Pad Lifetime (Scans)

20,000

Action Button

3 Buttons: Up, Down, Scan.

9 Function Keys. All Customizable.

Power Supply

24 Vdc/ 0.75 A

Interface

USB 2.0

Net Weight

1.9 Kgs (4.2 Lbs)

Dimensions (W x D x H)

263 x 132 x 148 mm (10.36" x 5.19" x 5.83")

Protocol

TWAIN Compliant

OS

Windows XP / Vista / 7 / 8 / 10

Intel-based Mac with OS X (v10.8 - v10.11)

Hardware Requirements

Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)

CD-ROM Driver

One available USB Port (USB 2.0 recommended)

1GB RAM or higher recommended

800 MB free HDD space (1 GB or larger recommended)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Plustek) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
